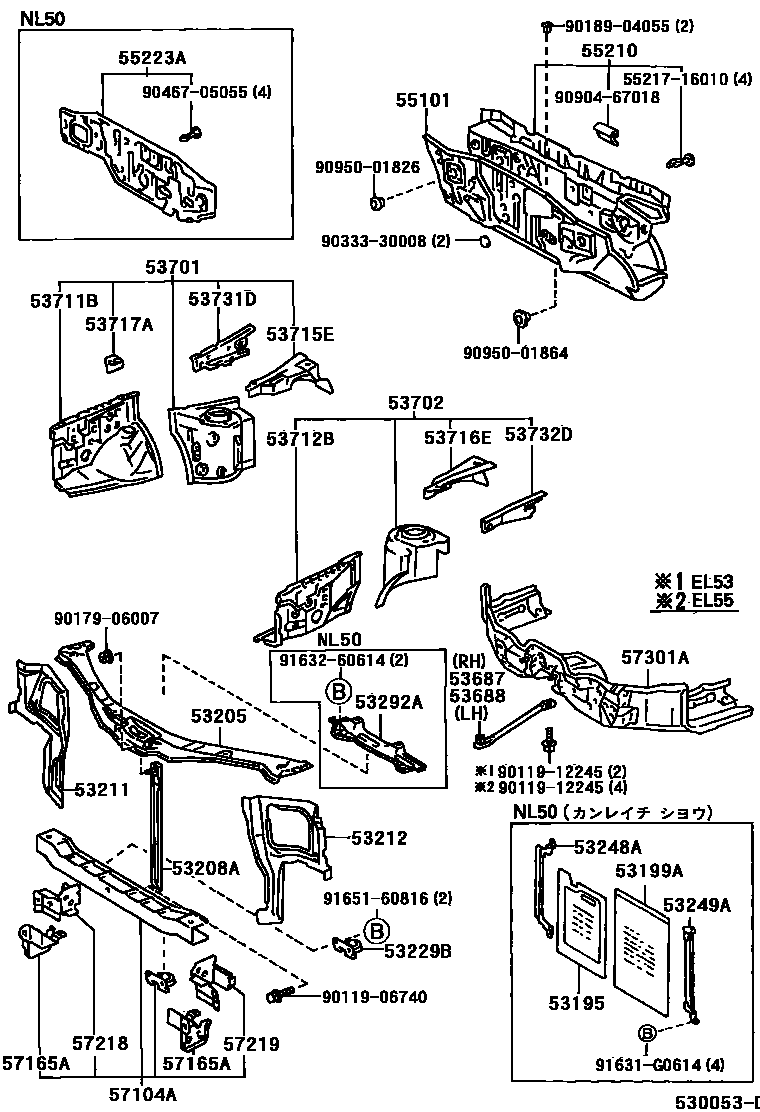

Toyota CORSA/TERCEL — FRONT FENDER APRON & DASH PANEL
53195PLATE, RADIATOR SHUTTER
53199ABAG, RADIATOR SHUTTER
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53212SUPPORT, RADIATOR, LH
53229BBRACKET, RADIATOR MOUNTING, LOWER NO.2
53248ABRACKET, RADIATOR SHUTTER, RH
53249ABRACKET, RADIATOR SHUTTER, LH
53292ASEAL, RADIATOR SUPPORT, UPPER
53687BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, RH
53688BRACE, FRONT SUSPENSION LOWER TO STEERING MEMBER, LH
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53715EEXTENSION, FRONT FENDER APRON, REAR RH
53716EEXTENSION, FRONT FENDER APRON, REAR LH
53717APLATE, FENDER APRON
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
55101PANEL SUB-ASSY, DASH
55210INSULATOR ASSY, DASH PANEL
57104AMEMBER SUB-ASSY, FRONT CROSS
57165AREINFORCEMENT, FRONT CROSSMEMBER, NO.2
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
57301AMEMBER SUB-ASSY, STEERING GEAR BOX SUPPORT
5521716010STRIP, DASH PANEL SILENCER FINISH
main55217-16010
9011906740
main90119-06740
9011912245
main90119-12245
9017906007
main90179-06007
9018904055
main90189-04055
9033330008
main90333-30008
9046705055
main90467-05055
9090467018
main90904-67018
9095001826
main90950-01826
9095001864
main90950-01864
91631G0614
main91631-G0614
9163260614
main91632-60614
9165160816
main91651-60816
42 parts on this diagram · 1 diagram in section
FRONT FENDER APRON & DASH PANEL for Toyota CORSA/TERCEL
This section contains 42 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CORSA/TERCEL. Key components include: PLATE, RADIATOR SHUTTER, BAG, RADIATOR SHUTTER, SUPPORT SUB-ASSY, RADIATOR, UPPER, SUPPORT SUB-ASSY, HOOD LOCK, SUPPORT, RADIATOR, RH.
