Toyota CORSA/TERCEL — FRONT CLEARANCE LAMP

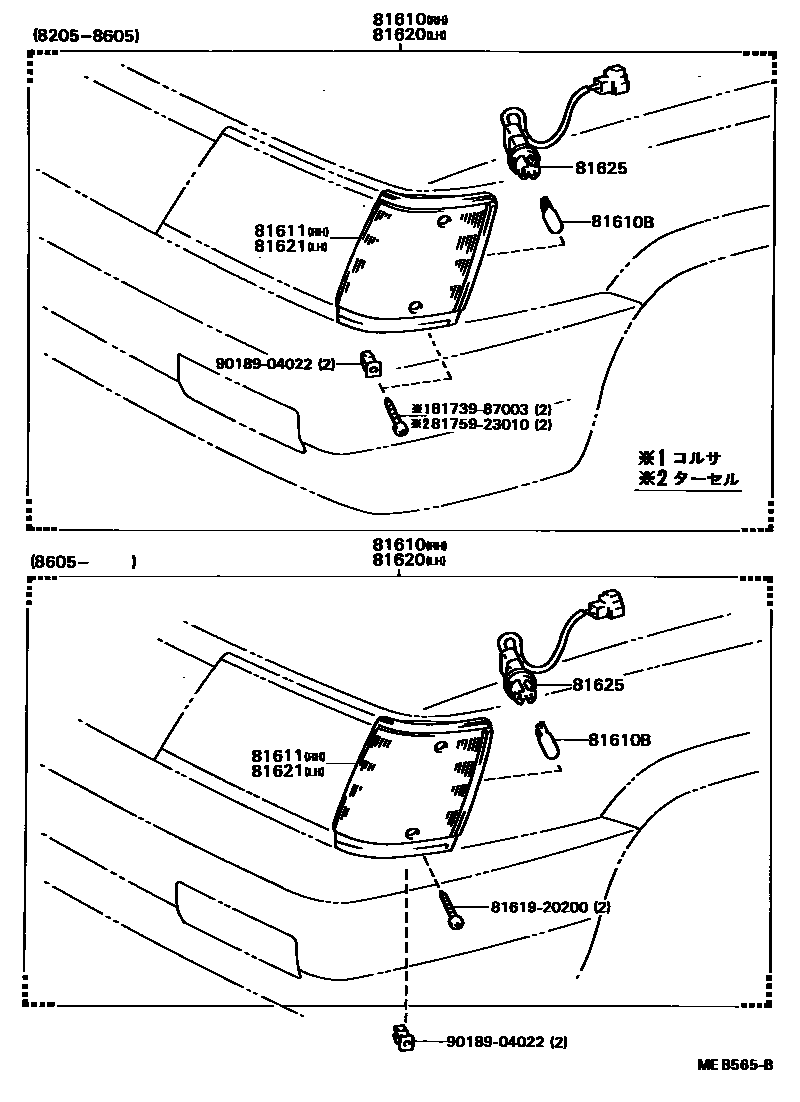

Parts diagram

81610LAMP ASSY, PARKING & CLEARANCE, RH

main81610-16051i198605-198910

main81610-19365i198205-198408

main81610-19366i198408-198605

main81610-19375i198205-198605

81610BBULB(FOR PARKING & CLEARANCE LAMP)

main99132-12050×2i198205-198910

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-16040i198205-198408

main81611-16041i198408-198605

main81611-16050i198205-198601

main81611-16051i198605-198910

main81611-16110i198601-198605

81620LAMP ASSY, PARKING & CLEARANCE, LH

main81620-16051i198605-198910

main81620-19365i198205-198408

main81620-19366i198408-198605

main81620-19375i198205-198605

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-16040i198205-198408

main81621-16041i198408-198605

main81621-16050i198205-198601

main81621-16051i198605-198910

main81621-16110i198601-198605

81625SOCKET AND WIRE, PARKING AND CLEARANCE LAMP

main81615-16040×2i198205-198910

8161920200

main81619-20200

8173987003

main81739-87003

8175923010RETAINER, REAR SIDE MARKER LAMP, RH

main81759-23010

9018904022

main90189-04022

10 parts on this diagram · 1 diagram in section

FRONT CLEARANCE LAMP for Toyota CORSA/TERCEL

This section contains 10 genuine Toyota parts for the FRONT CLEARANCE LAMP system of the Toyota CORSA/TERCEL. Key components include: LAMP ASSY, PARKING & CLEARANCE, RH, BULB(FOR PARKING & CLEARANCE LAMP), LENS, PARKING & CLEARANCE LAMP, RH, LAMP ASSY, PARKING & CLEARANCE, LH, LENS, PARKING & CLEARANCE LAMP, LH.
