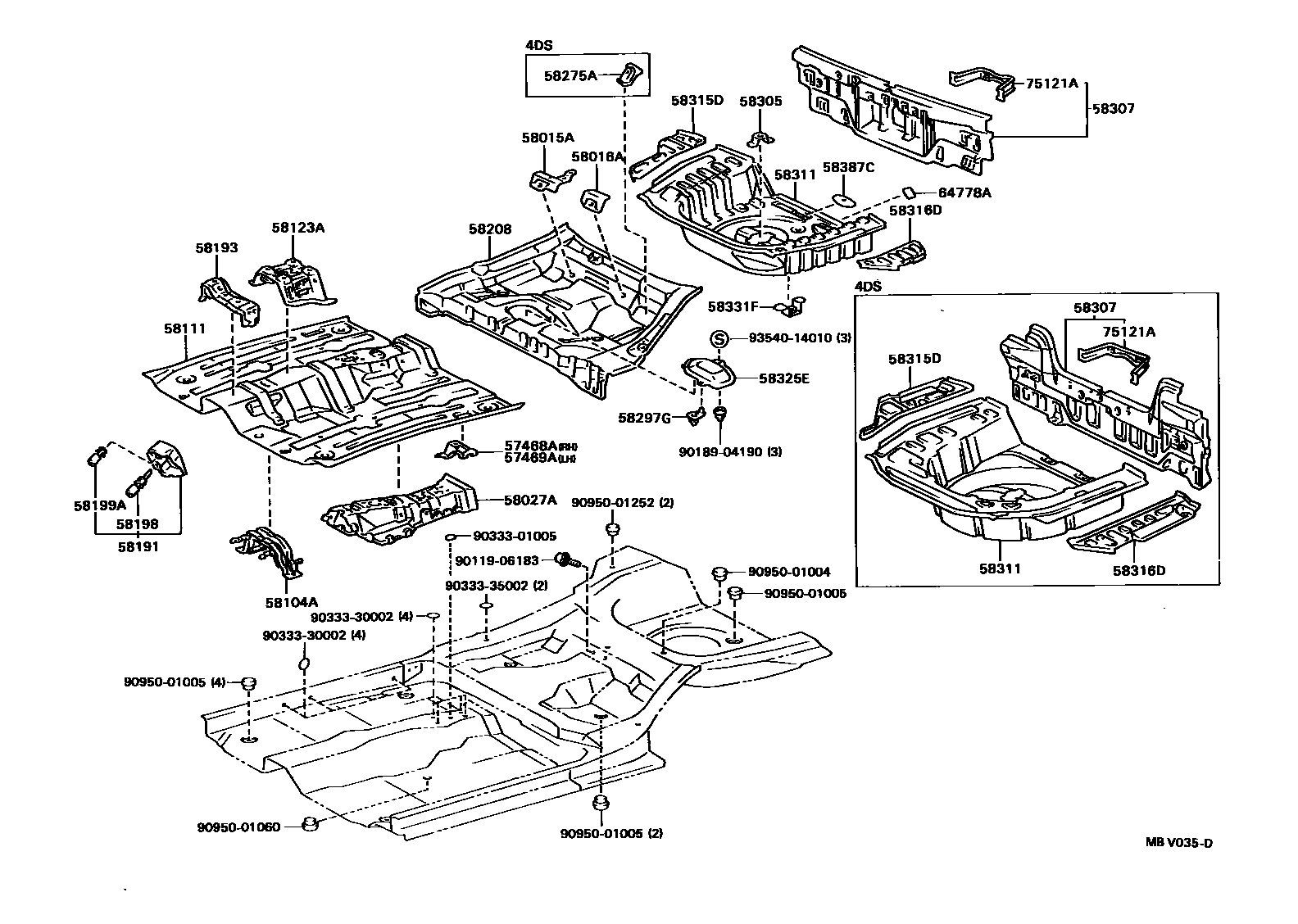

Toyota CORSA/TERCEL — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH

main57468-10030iEL4#,NL40199009-199409

57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH

main57469-10030iEL4#,NL40199009-199409

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-10020iEL41,43,NL40199009-199409

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-10020iEL41,43,NL40199009-199409

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-16030iEL41,43,NL40199009-199208

main58027-16050iEL45199009-199208

main58027-16060iEL41,43,NL40199208-199401

sub90269-03067

main58027-16061iEL41,43,NL40199401-199409

main58027-16080iEL45199208-199408

main58027-16081iEL45199408-199409

58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT

main58104-10040iEL41,43,NL40199009-199104

main58104-16010iEL41,43,NL40199104-199401

sub90269-03067

main58104-16011iEL41,43,NL40199401-199409

58111PAN, FRONT FLOOR

main58111-16040iEL41,43,NL40199009-199208

main58111-16070iEL45199009-199212

main58111-16080iEL41,43,NL40199208-199409

main58111-16100iEL45199212-199408

main58111-16101iEL45199408-199409

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-10040iEL4#,NL40199009-199404

main58123-10050iEL4#,NL40199404-199409

58191FOOTREST, FRONT FLOOR

main58191-16070iNL40..VITX,VX;EL43,45..AVE,AXX,JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ199009-199208

58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING

main58193-10030iEL4#,NL40199009-199208

main58193-16040iEL4#,NL40199208-199409

58198CLIP, FOOTREST

main58198-16030iNL40..VITX,VX;EL43,45..AVE,AXX,JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ199009-199208

58199ACLIP, FOOTREST, NO.2

main58199-16020iNL40..VITX,VX;EL43,45..AVE,AXX,JOI,MOA,SX,SZ,VITX,VITZ,VS,VX,VZ199009-199208

58208PAN, CENTER FLOOR

main58211-10140iEL41,43,NL40199009-199409

sub58211-10142

sub58313-16030

sub58314-16090

main58211-10150iEL45199009-199406

main58211-10151iEL45199406-199409

sub58211-10152

58275ARETAINER, REAR SEATBACK TO CENTER FLOOR

main58275-16020×2iEL41,43,NL40..4DS199009-199409

58297GRETAINER, FLOOR CLAMP

main58297-10010×2iEL41,43,NL40199009-199409

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iEL41,43,NL40199009-199409

main58351-10030iEL45199009-199409

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-16330iEL4#,NL40..3DS199009-199409

main58307-16340iEL4#,NL40..4DS199009-199409

58311PAN, REAR FLOOR

main58311-10190iEL41,43,NL40..3DS199009-199403

main58311-10200iEL45..3DS199009-199409

sub58311-10201

main58311-16130iEL41,43,NL40..4DS199009-199403

main58311-16131iEL41,43,NL40..4DS199403-199405

main58311-16132iEL41,43,NL40..4DS199405-199409

sub58311-16160

sub58313-16030

sub58314-16090

main58311-16140iEL45..4DS199009-199409

sub58311-16170

main58311-16150iEL41,43,NL40..3DS199403-199405

main58311-16151iEL41,43,NL40..3DS199405-199409

sub58311-16152

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-16010iEL4#,NL40..3DS199009-199409

main58315-16050iEL4#,NL40..4DS199009-199409

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-16060iEL4#,NL40..3DS199009-199409

main58316-16070iEL4#,NL40..4DS199009-199409

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-10020iEL41,43,NL40199009-199409

sub58325-10021

main58325-10040iEL45199009-199409

58331FBRACKET, REAR FLOOR HEAT INSULATOR, NO.3

main58331-10010×3iEL41,43,NL40199009-199401

main58331-10011×5iEL41,43,NL40199401-199409

58387CPLATE, REAR FLOOR FINISH

main58387-10010×2iEL4#,NL40199009-199409

64778APROTECTOR, SPARE WHEEL

main64778-10020×2iEL45199009-199409

main64778-16020×2iEL41,43,NL40..4DS199009-199409

75121ABRACKET, REAR LICENSE PLATE

main75121-16030iEL4#,NL40..3DS199009-199409

main75122-16020iEL4#,NL40..4DS199009-199409

9011906183

main90119-06183

9018904190

main90189-04190

9033301005

main90333-01005

9033330002

main90333-30002

9033335002

main90333-35002

9095001004

main90950-01004

9095001005

main90950-01005

9095001060

main90950-01060

9095001252

main90950-01252

9354014010

main93540-14010

35 parts on this diagram · 2 diagrams in section
