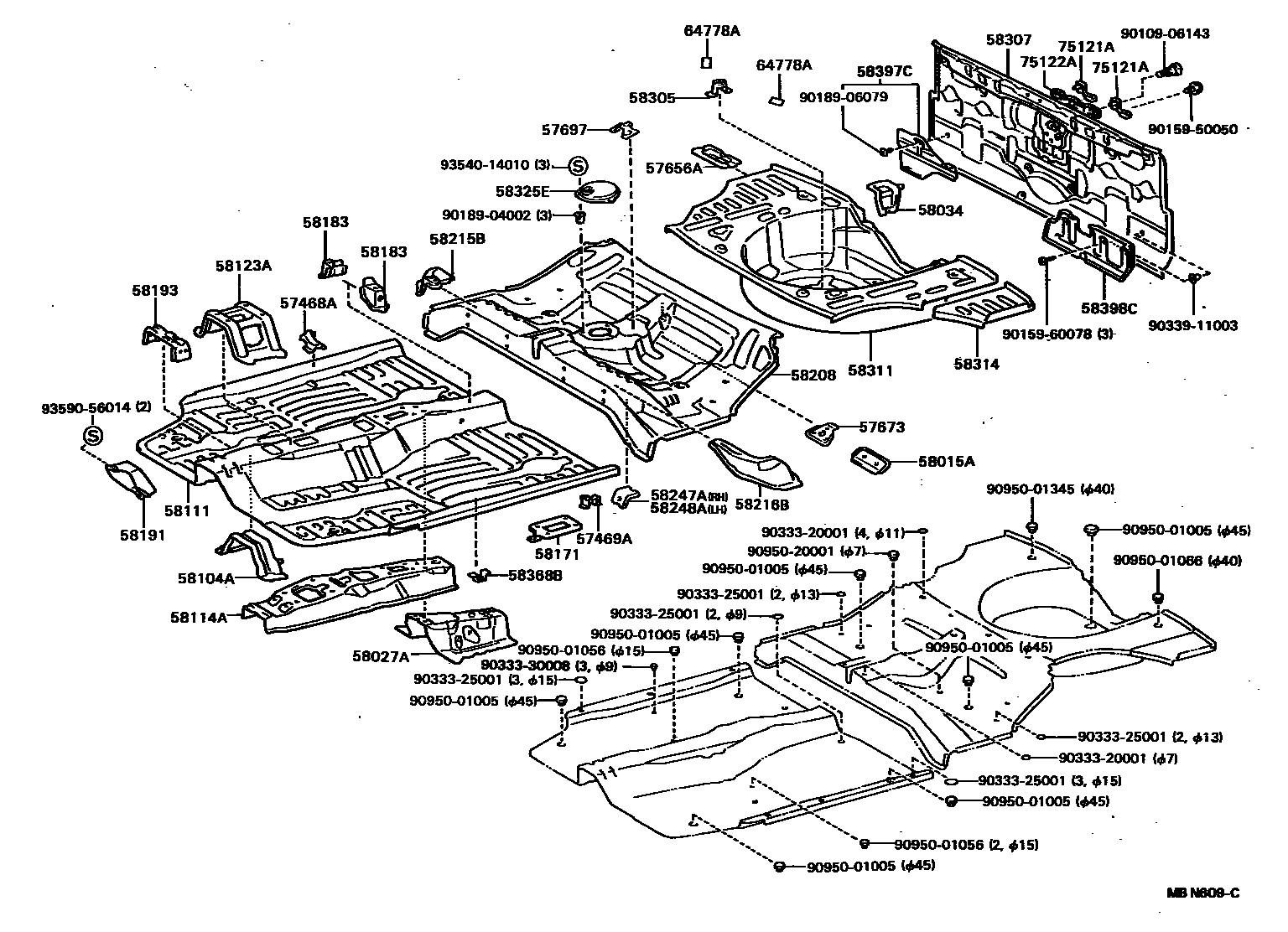

Toyota CORSA/TERCEL — FLOOR PAN & LOWER BACK PANEL
57468ABRACKET, FRONT SEAT, OUTSIDE, REAR RH
57469ABRACKET, FRONT SEAT, OUTSIDE, REAR LH
57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1
57673BRACKET, REAR SEATBACK HINGE MOUNTING
57697RETAINER, REAR SEAT CUSHION
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58034BRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR
58104ABRACKET SUB-ASSY, CATALYTIC CONVERTER SUPPORT
58114AREINFORCEMENT, FRONT FLOOR PANEL
58123ASUPPORT, SHIFT & SELECT LEVER
58171REINFORCEMENT, PARKING BRAKE BASE
58183BRACKET, FRONT SEAT MOUNTING, INNER
58191FOOTREST, FRONT FLOOR
58193BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58208PAN, CENTER FLOOR
58215BBRACKET, REAR SEAT MOUNTING, RH
58216BBRACKET, REAR SEAT MOUNTING, LH
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58368BBRACKET, FUEL TUBE, NO.2
58397CCOVER, BODY LOWER BACK, RH
58398CCOVER, BODY LOWER BACK, LH
64778APROTECTOR, SPARE WHEEL
75121ABRACKET, REAR LICENSE PLATE
75122ABRACKET, REAR LICENSE PLATE, NO.2
9010906143
main90109-06143
9015950050
main90159-50050
9015960078
main90159-60078
9018904002
main90189-04002
9018906079
main90189-06079
9033320001
main90333-20001
9033325001
main90333-25001
9033330008
main90333-30008
9033911003
main90339-11003
9095001005
main90950-01005
9095001056
main90950-01056
9095001066
main90950-01066
9095001345
main90950-01345
9095020001
main90950-20001
9354014010
main93540-14010
9359056014
main93590-56014
48 parts on this diagram · 1 diagram in section
