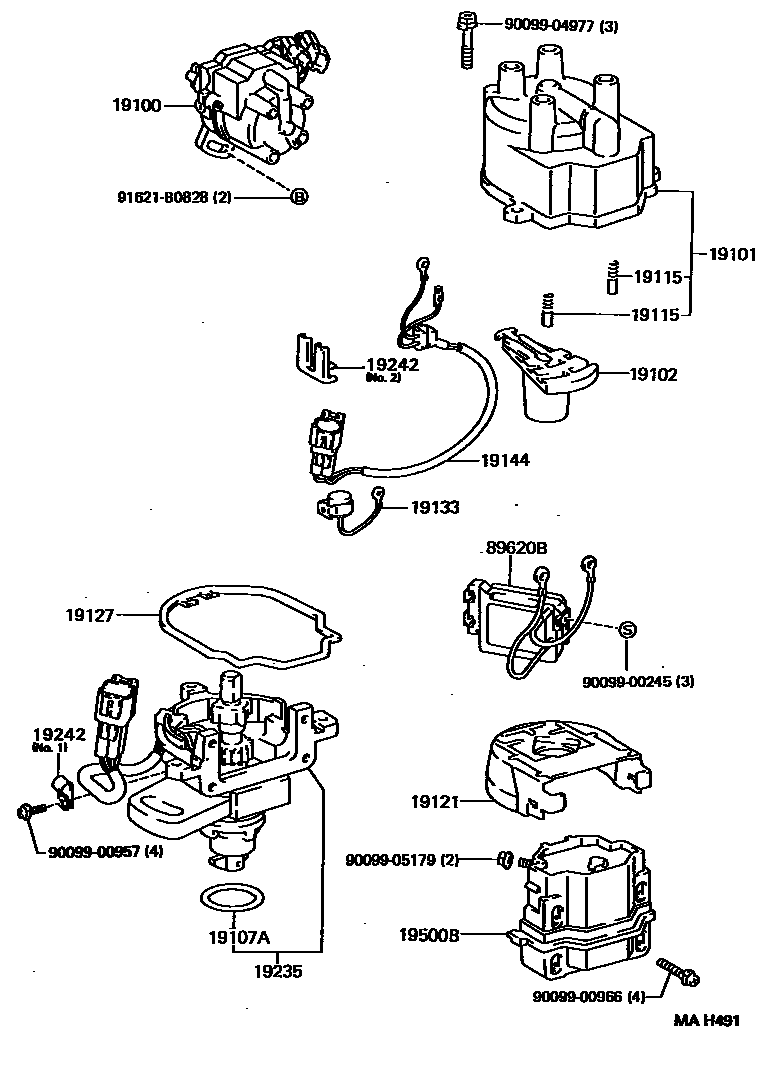

Toyota CORSA/TERCEL — DISTRIBUTOR

19100DISTRIBUTOR ASSY

main19020-11340i199409-199508

main19020-11380i199511-199712

main19020-11390i199508-199511

main19020-11400i199601-199712

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-11060i199409-199712

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i199409-199511

main19102-11370i199511-199601

19107ARING, O, DISTRIBUTOR HOUSING

main90099-14088i199409-199712

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i199409-199712

19121COVER, DUST PROOF

main19121-11080i199409-199712

19127PACKING, DUST PROOF

main19127-15120i199409-199712

19133CONDENSER, DISTRIBUTOR

main19133-16240i199409-199712

19144LEAD, DISTRIBUTOR BREAKER

main19144-11350i199409-199712

19235HOUSING, DISTRIBUTOR

main19235-11340i199409-199712

19242CLAMP, CORD

main19242-11190i199409-199712

main19242-11350i199409-199712

19500BCOIL ASSY, IGNITION

main90919-02164i199409-199712

89620BIGNITER ASSY

main89620-12420i199409-199508

main89620-12440i199508-199701

main89620-16260i199701-199712

9009900245

main90099-00245

9009900957

main90099-00957

9009900966

main90099-00966

9009904977

main90099-04977

9009905179

main90099-05179

91621B0828

main91621-B0828

19 parts on this diagram · 1 diagram in section

DISTRIBUTOR for Toyota CORSA/TERCEL

This section contains 19 genuine Toyota parts for the DISTRIBUTOR system of the Toyota CORSA/TERCEL. Key components include: DISTRIBUTOR ASSY, CAP SUB-ASSY, DISTRIBUTOR, ROTOR SUB-ASSY, DISTRIBUTOR, RING, O, DISTRIBUTOR HOUSING, PIECE, DISTRIBUTOR CAP, CENTER.
