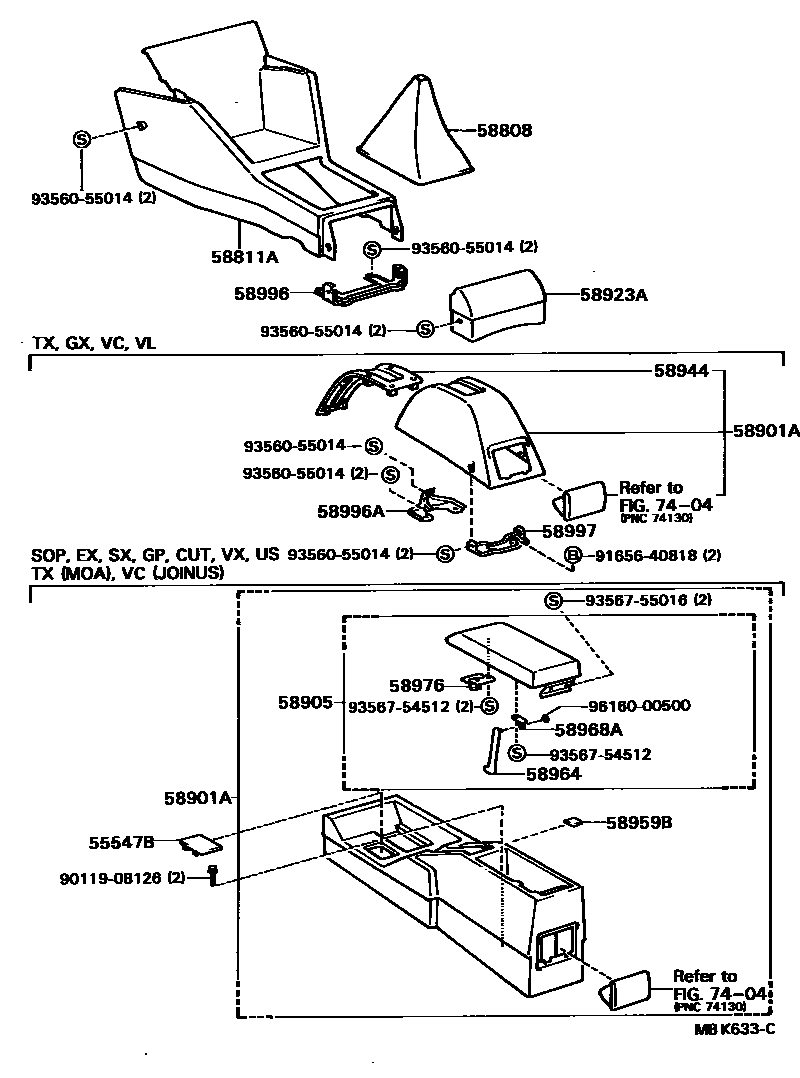

Toyota CORSA/TERCEL — CONSOLE BOX & BRACKET

55547BCOVER, REMOTE CONTROL MIRROR HOLE

main74267-24010-11iEL30..TX,VC198611-198805

MOA OR JOINUS,BLACK,BLACK,TRIM2#

main74267-24010-14iEL3#..CUT,EX,GP,SOP,SX,VS,VX198605-198805

BLUE,BLUE,TRIM8#

main74267-24010-15iEL3#..CUT,EX,SOP,VX198605-198805

BEIGE,DARK BEIGE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-16070-01iEL3#,NL30..MTM..(CBR,TD)198605-198805

BLACK,BLACK,TRIM2#

main58808-16070-04iEL3#,NL30..MTM..(CBR,TD)198605-198805

BLUE,BLUE,TRIM8#

main58808-16070-05iEL3#,NL30..MTM..(CUT,EX,GX,SOP,TX,VC,VL,VX)198605-198805

BEIGE,DARK BEIGE,TRIM4#

main58808-16080-01iEL31..5F..TBO198609-198805

BLACK

main58808-16080-04iEL31..5F..TBO198609-198805

BLUE

58811ABOX, CONSOLE, FRONT

main58811-16060-01iEL3#,NL30198605-198805

BLACK,BLACK,TRIM2#

main58811-16060-04iEL3#,NL30198605-198805

BLUE,BLUE,TRIM8#

main58811-16060-05iEL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX198605-198805

BEIGE,DARK BEIGE,TRIM4#

main58811-16070-01iEL3#,NL30198605-198805

COLD SPEC,BLACK,BLACK,TRIM2#

main58811-16070-04iEL3#,NL30198605-198805

COLD SPEC,BLUE,BLUE,TRIM8#

main58811-16070-05iEL3#,NL30..CUT,EX,GX,SOP,TX,VC,VL,VX198605-198805

COLD SPEC,BEIGE,DARK BEIGE,TRIM4#

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-16040-01iEL30..TX,VC198611-198805

MOA OR JOINUS,BLACK,BLACK,TRIM2#

main58901-16040-04iEL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX198605-198805

BLUE,BLUE,TRIM8#

main58901-16040-05iEL3#,NL30..CUT,EX,SOP,VX198605-198805

BEIGE,DARK BEIGE,TRIM4#

main58901-16070-01iEL3#,NL30..GX,TX,VC,VL198605-198805

BLACK,BLACK,TRIM2#

main58901-16070-04iEL3#,NL30..GX,TX,VC,VL198605-198805

BLUE,BLUE,TRIM8#

main58901-16070-05iEL3#,NL30..GX,TX,VC,VL198605-198805

BEIGE,DARK BLUE,TRIM4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-16010-01iEL30..TX,VC198611-198805

MOA OR JOINUS,BLACK,BLACK,TRIM2#

main58905-16010-04iEL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX198605-198805

BLUE,BLUE,TRIM8#

main58905-16010-05iEL3#,NL30..CUT,EX,SOP,VX198605-198805

BEIGE,DARK BEIGE,TRIM4#

58923APANEL, CONSOLE REAR END

main58923-16010-01iEL3#,NL30..GX,TX,VC,VL198605-198805

BLACK,BLACK,TRIM2#

main58923-16010-04iEL3#,NL30..GX,TX,VC,VL198605-198805

BLUE,BLUE,TRIM8#

main58923-16010-05iEL3#,NL30..GX,TX,VC,VL198605-198805

BEIGE,DARK BEIGE,TRIM4#

58944COVER, PARKING BRAKE HOLE

main58941-10010iEL3#,NL30..GX,TX,VC,VL198605-198608

BLACK

main58941-16080-01iEL3#,NL30..GX,TX,VC,VL198608-198712

BLACK,BLACK,TRIM2#

main58941-16080-04iEL3#,NL30..GX,TX,VC,VL198608-198712

BLUE,BLUE,TRIM8#

main58941-16080-05iEL3#,NL30..GX,TX,VC,VL198608-198712

BEIGE,DARK BEIGE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iEL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX198605-198805

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iEL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX198605-198805

58968ABRACKET, CONSOLE DOOR STOPPER

main58968-89101iEL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX198605-198805

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iEL3#,NL30..CUT,EX,GP,SOP,SX,VS,VX198605-198805

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-16050iEL3#,NL30..MTM198605-198805

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-16040iEL3#,NL30..GX,TX,VC,VL198605-198805

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-16060iEL3#,NL30..GX,TX,VC,VL198605-198805

7404

9011908126

main90119-08126

9165640818

main91656-40818

9356055014

main93560-55014

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

21 parts on this diagram · 1 diagram in section
