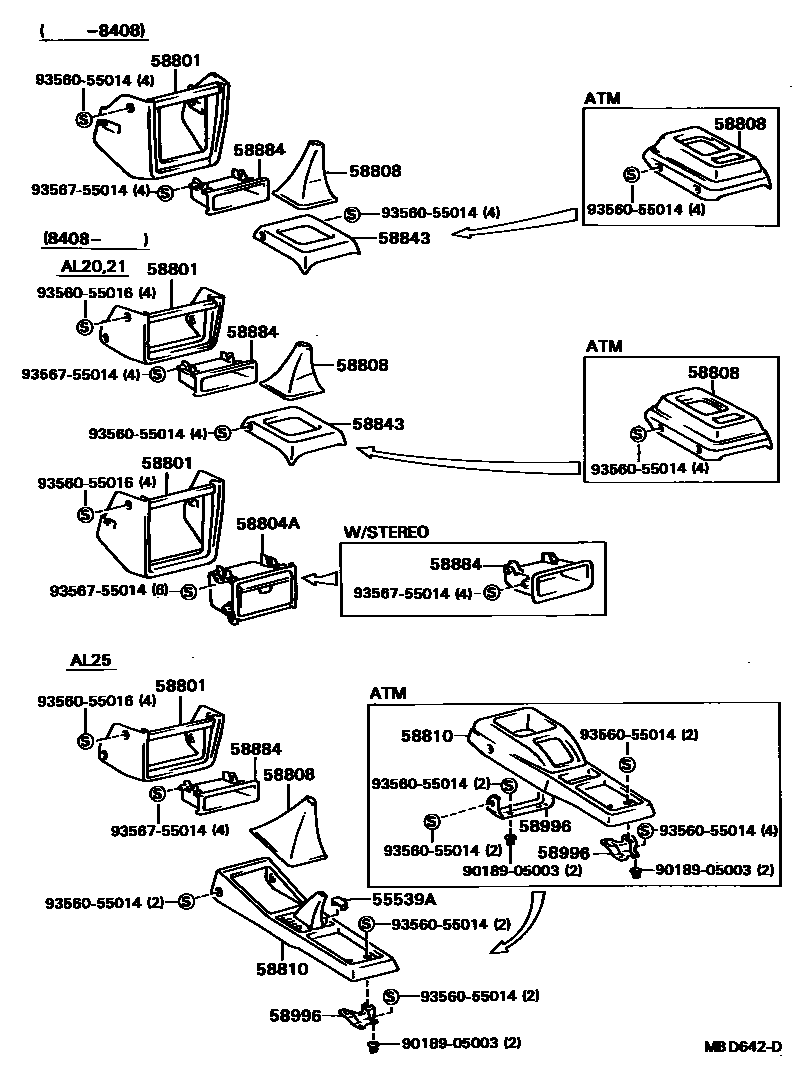

Toyota CORSA/TERCEL — CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1 0005 1

55539ACOVER, SPARE SWITCH HOLE

main55539-32010-13iAL25..6F198408-198605

GRAY,SHADOW GRAY,TRIM1#

sub55539-32030

main55539-32010-25iAL25..6F198408-198605

BEIGE,BEIGE,TRIM4#

sub55539-32030

main55548-16020-01iAL25198605-198910

BLACK,BLACK,TRIM2#

main55548-16020-05iAL25198605-198910

BEIGE,DARK BEIGE,TRIM4#

58801CONSOLE SUB-ASSY, UPPER

main58813-16020-02iAL2#198205-198408

DARK WINE,RED/MAROON,TRIM3#

main58813-16020-03iAL2#198205-198408

GRAY,GRAY,TRIM1#

main58813-16020-06iAL2#198205-198408

BROWN,BROWN,TRIM4#

main58813-16040-01iAL25198605-198910

BLACK,BLACK,TRIM2#

main58813-16040-03iAL25;AL20,21..DX,GX,VC,VL198408-198605

GRAY,GRAY,TRIM1#

main58813-16040-05iAL20,25..4DS;AL21..4DS..(GX,VL)198408-198605

BEIGE,BEIGE,TRIM4#

main58813-16040-15iAL25198605-198910

BEIGE,DARK BEIGE,TRIM4#

main58813-16060-01iAL21..EX,VE198605-198910

BLACK,BLACK,TRIM2#

main58813-16060-02iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

CUTIE,DARK WINE,DARK WINE,TRIM3#

main58813-16060-03iAL21..EX,SX,VE,VS198408-198605

GRAY,GRAY,TRIM1#

main58813-16060-05iAL21..4DS..(EX,VE)198408-198605

BEIGE,BEIGE,TRIM4#

main58813-16060-15iAL21..EX,VE198605-198910

BEIGE,DARK BEIGE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-16010iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

SOPHIA OR CUTIE

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-16020-01iAL20,21..MTM..(EX,GX,VE,VL)198605-198910

BLACK,BLACK,TRIM2#

main58808-16020-02iAL2#..MTM..(EX,GX,SX,VE,VL,VS)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main58808-16020-03iAL2#..MTM..(EX,GX,SX,VE,VL,VS)198205-198408

GRAY,GRAY,TRIM1#

main58808-16020-05iAL20,21..4DS..MTM198506-198605

BEIGE,BEIGE,TRIM4#

main58808-16020-06iAL2#..MTM..(EX,GX,SX,VE,VL,VS)198205-198408

BROWN,BROWN,TRIM4#

main58808-16020-13iAL20,21..MTM198506-198605

GRAY,GRAY,TRIM1#

main58808-16020-15iAL20,21..MTM..(EX,GX,VE,VL)198605-198910

BEIGE,DARK BEIGE,TRIM4#

main58808-16030-05iAL25..6F198506-198605

BEIGE,BEIGE,TRIM4#

main58808-16030-13iAL25..6F198506-198605

GRAY,GRAY,TRIM1#

main58808-16040-02iAL20,21..(3DS,5DS)..4F..(GX,VL)198408-198506

DARK WINE,DARK WINE,TRIM3#

main58808-16040-03iAL20,21..MTM198504-198506

GRAY,GRAY,TRIM1#

main58808-16040-05iAL20,21..4DS..MTM198408-198506

BEIGE,BEIGE,TRIM4#

main58808-16050-03iAL25..6F198408-198506

GRAY,GRAY,TRIM1#

main58808-16050-05iAL25..6F198408-198506

BEIGE,BEIGE,TRIM4#

main58808-16060-01iAL25..6F198605-198910

BLACK,BLACK,TRIM2#

main58808-16060-05iAL25..6F..(EX,GX,VE,VL)198605-198910

BEIGE,DARK BEIGE,TRIM4#

main58841-16040-01iAL20,21..3FC198605-198910

BLACK,BLACK,TRIM2#

main58841-16040-02iAL2#..3FC198205-198408

DARK WINE,RED/MAROON,TRIM3#

main58841-16040-03iAL2#..3FC198205-198408

GRAY,GRAY,TRIM1#

main58841-16040-05iAL20,21..4DS..3FC198408-198605

BEIGE,BEIGE,TRIM4#

main58841-16040-06iAL2#..3FC198205-198408

BROWN,BROWN,TRIM4#

main58841-16040-13iAL20,21..3FC198408-198605

GRAY,GRAY,TRIM1#

main58841-16040-15iAL20,21..3FC198605-198910

BEIGE,DARK BEIGE,TRIM4#

58810CONSOLE ASSY

main58802-16010-05iAL25..6F198408-198605

BEIGE,BEIGE,TRIM4#

main58802-16010-13iAL25..6F198408-198605

GRAY,GRAY,TRIM1#

main58811-16050-05iAL25..3FC198408-198605

BEIGE,BEIGE,TRIM4#

main58811-16050-13iAL25..3FC198408-198605

GRAY,GRAY,TRIM1#

main58811-16100-01iAL25..6F198605-198910

BLACK,BLACK,TRIM2#

main58811-16100-05iAL25..6F..(EX,GX,VE,VL)198605-198910

BEIGE,DARK BEIGE,TRIM4#

main58811-16110-01iAL25..3FC198605-198910

BLACK,BLACK,TRIM2#

main58811-16110-05iAL25..3FC198605-198910

BEIGE,DARK BEIGE,TRIM4#

58843BEZEL, SHIFTING HOLE

main58843-16020-01iAL20,21..MTM..(EX,GX,VE,VL)198605-198910

BLACK,BLACK,TRIM2#

main58843-16020-02iAL2#..MTM..(VE,VL,VS)198205-198408

DARK WINE,RED/MAROON,TRIM3#

main58843-16020-03iAL2#..MTM..(EX,GX,SX,VE,VL,VS)198205-198408

GRAY,GRAY,TRIM1#

main58843-16020-05iAL20,21..4DS..MTM198408-198605

BEIGE,BEIGE,TRIM4#

main58843-16020-06iAL2#..MTM..(EX,GX,SX,VE,VL,VS)198205-198408

BROWN,BROWN,TRIM4#

main58843-16020-13iAL20..(3DS,5DS)..4F..(DX,VC)198504-198605

DX EXTRA OR VC EXTRA,GRAY,GRAY,TRIM1#

main58843-16020-15iAL20,21..MTM..(EX,GX,VE,VL)198605-198910

BEIGE,DARK BEIGE,TRIM4#

58884COVER, STEREO OPENING

main55521-16010iAL2#198205-198408

main55521-16020iAL20,21..(3DS,5DS)..(GX,VL)198408-198605

SOPHIA OR CUTIE

main55521-16030iAL25198605-198910

58996BRACKET, CONSOLE BOX MOUNTING, NO.1

main58994-16010iAL25..3FC198408-198910

FR

main58995-16020iAL25198408-198605

RR

main58996-16070iAL25198605-198910

RR

9018905003

main90189-05003

9356055014

main93560-55014

9356055016

main93560-55016

9356755014

main93567-55014

12 parts on this diagram · 5 diagrams in section
