Toyota CORSA/TERCEL — BODY STRIPE

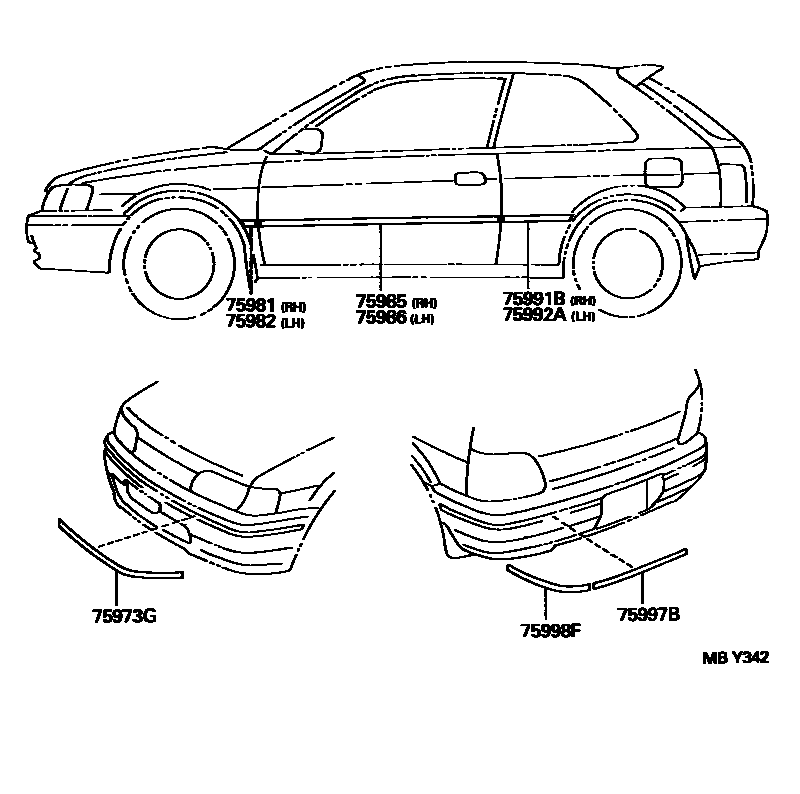

Parts diagram

75973GSTRIPE, FRONT BUMPER SIDE

main75973-16080-B0×2i199409-199608

LT. GRAY,040 ,1A0

75981STRIPE, FRONT FENDER, RH NO.1

main75981-16360i199409-199712

main75981-16370i199409-199712

main75981-16420i199712

main75981-16430i199712

75982STRIPE, FRONT FENDER, LH NO.1

main75982-16340i199409-199712

main75982-16350i199409-199712

main75982-16400i199712

main75982-16410i199712

75985STRIPE, FRONT DOOR, RH

main75985-16620i199409-199712

main75985-16630i199409-199712

main75985-16660i199504-199608

main75985-16700i199608-199712

main75985-16720i199712

main75985-16730i199712

main75985-16751i199712-199811

main75985-16761i199712-199811

main75985-16780i199707-199712

75986STRIPE, FRONT DOOR, LH

main75986-16610i199409-199712

main75986-16620i199409-199712

main75986-16640i199504-199608

main75986-16670i199608-199712

main75986-16690i199712

main75986-16700i199712

main75986-16721i199712-199811

main75986-16731i199712-199811

main75986-16750i199707-199712

75991BSTRIPE, QUARTER, RH

main75991-16430i199409-199712

main75991-16440i199409-199712

main75991-16470i199504-199608

main75991-16500i199608-199712

main75991-16520i199712

main75991-16530i199712

main75991-16580i199707-199712

75992ASTRIPE, QUARTER, LH

main75992-16400i199409-199712

main75992-16410i199409-199712

main75992-16440i199504-199608

main75992-16470i199608-199712

main75992-16490i199712

main75992-16500i199712

main75992-16550i199707-199712

75997BSTRIPE, REAR BUMPER

main75997-16140-B0×2i199409-199608

LT. GRAY,040 ,1A0

75998FSTRIPE, REAR BUMPER SIDE

main75998-16020-B0×2i199409-199608

LT. GRAY,040 ,1A0

9 parts on this diagram · 1 diagram in section

BODY STRIPE for Toyota CORSA/TERCEL

This section contains 9 genuine Toyota parts for the BODY STRIPE system of the Toyota CORSA/TERCEL. Key components include: STRIPE, FRONT BUMPER SIDE, STRIPE, FRONT FENDER, RH NO.1, STRIPE, FRONT FENDER, LH NO.1, STRIPE, FRONT DOOR, RH, STRIPE, FRONT DOOR, LH.
