E
EPC Data

Toyota CORSA/TERCEL — ARMREST & VISOR

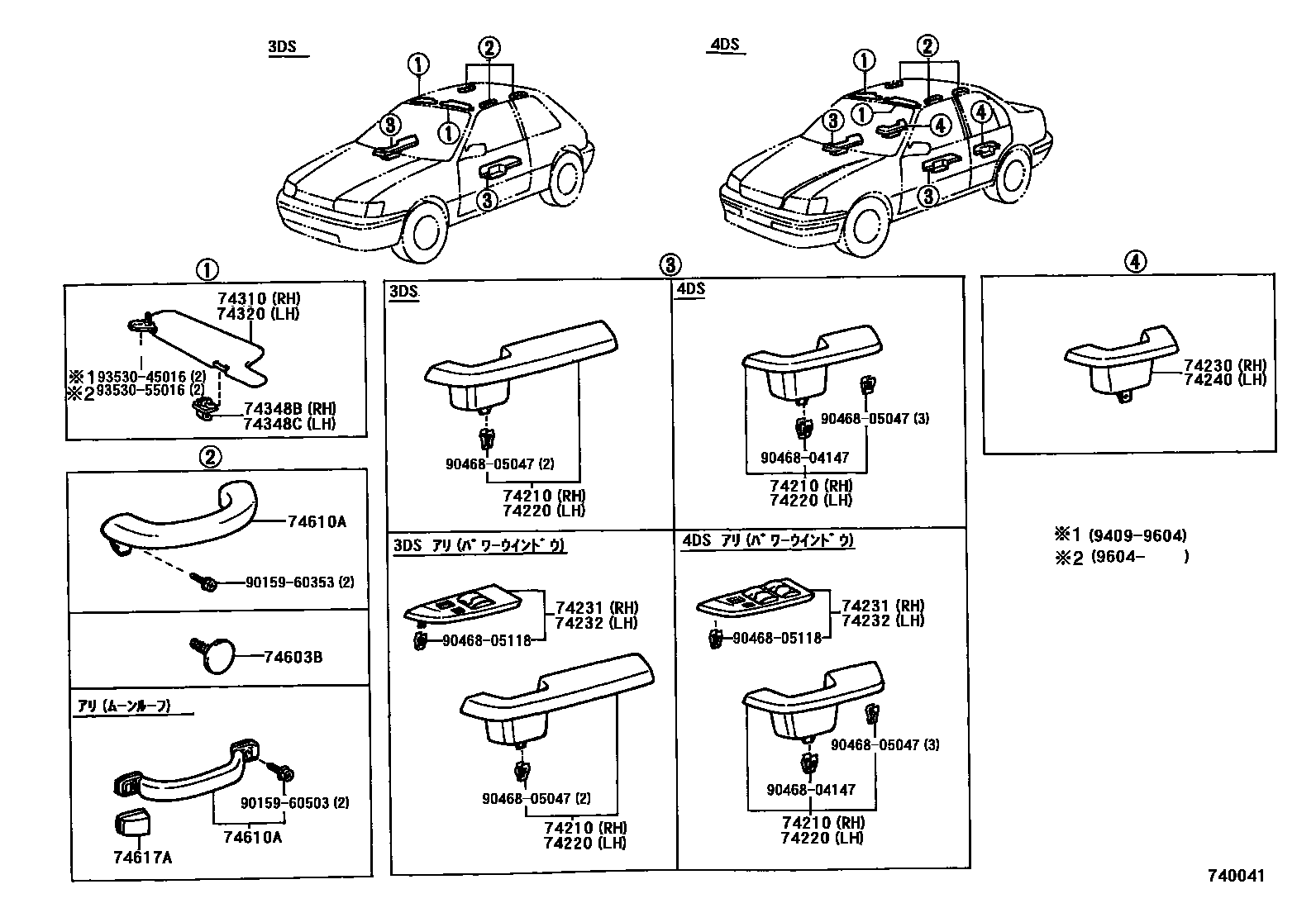

Parts diagram
74210ARMREST ASSY, FRONT, RH
main74210-16080-B0i199409-199608
BLUISH GRAY,TRIM1#
main74210-16080-B1i199608-199907
SHADOW GRAY,TRIM1#
main74210-16080-E0i199712-199907
OAK,TRIM4#
main74210-16090-B0i199409-199608
main74210-16090-B1i199608-199907
main74210-16090-E0i199712-199907
main74210-16100-B0i199409-199501
BLUISH GRAY,TRIM1#
main74210-16101-B0i199501-199608
BLUISH GRAY,TRIM1#
main74210-16101-B1i199608-199907
SHADOW GRAY,TRIM1#
main74210-16101-E0i199712-199907
OAK,TRIM4#
main74210-16120-B1i199409-199907
main74210-16120-E0i199712-199907
74220ARMREST ASSY, FRONT, LH
main74220-16060-B0i199409-199608
BLUISH GRAY,TRIM1#
main74220-16060-B1i199608-199907
SHADOW GRAY,TRIM1#
main74220-16060-E0i199712-199907
OAK,TRIM4#
main74220-16070-B0i199409-199608
main74220-16070-B1i199608-199907
main74220-16070-E0i199712-199907
main74220-16080-B0i199409-199501
BLUISH GRAY,TRIM1#
main74220-16081-B0i199501-199608
BLUISH GRAY,TRIM1#
main74220-16081-B1i199608-199907
SHADOW GRAY,TRIM1#
main74220-16081-E0i199712-199907
OAK,TRIM4#
main74220-16100-B0i199409-199608
main74220-16100-B1i199608-199907
main74220-16100-E0i199712-199907
74230ARMREST ASSY, REAR, RH
main74250-16050-B0i199409-199608
BLUISH GRAY,TRIM1#
main74250-16050-B1i199608
SHADOW GRAY,TRIM1#
main74250-16050-E0i199712
OAK,TRIM4#
main74250-16060-B0i199409-199608
main74250-16060-B1i199608
main74250-16060-E0i199712
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74230-16010-B0i199712
GRAY,TRIM1#
main74230-16010-E0i199712
OAK,TRIM4#
main74230-16020-B0i199712
GRAY,TRIM1#
main74230-16020-E0i199712
OAK,TRIM4#
main74231-10040-C0i199409-199712
BLACK,TRIM1#
main74231-10050-C0i199409-199712
BLACK,TRIM1#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-10021-22i199409-199712
BLACK,TRIM1#
main74240-16010-B0i199712
GRAY,TRIM1#
main74240-16010-E0i199712
OAK,TRIM4#
74240ARMREST ASSY, REAR, LH
main74250-16050-B0i199409-199608
BLUISH GRAY,TRIM1#
main74250-16050-B1i199608
SHADOW GRAY,TRIM1#
main74250-16050-E0i199712
OAK,TRIM4#
main74250-16060-B0i199409-199608
main74250-16060-B1i199608
main74250-16060-E0i199712
74310VISOR ASSY, RH
main74310-16590-B1i199409-199506
LT. BLUISH GRAY,TRIM1#
main74310-16591-B1i199506-199608
LT. BLUISH GRAY,TRIM1#
main74310-16740-B0i199608-199708
LT. BLUISH GRAY,TRIM1#
main74310-16741-B0i199708-199907
LT. BLUISH GRAY,TRIM1#
main74310-16741-E0i199712-199907
LT. BEIGE,TRIM4#
74320VISOR ASSY, LH
main74320-16450-B1i199409-199608
LT. BLUISH GRAY,TRIM1#
main74320-16590-B0i199608-199907
LT. BLUISH GRAY,TRIM1#
main74320-16590-E0i199712-199907
LT. BEIGE,TRIM4#
main74320-16600-B0i199608-199708
main74320-16601-B0i199708-199907
main74320-16601-E0i199712-199907
74348BHOLDER, VISOR, RH
main74348-16010-B0i199409
LT.BLUISH GRAY,TRIM1#
main74348-16010-E0i199712
MD.OAK,TRIM4#
74348CHOLDER, VISOR, LH
main74348-16010-B0i199409
LT.BLUISH GRAY,TRIM1#
main74348-16010-E0i199712
MD.OAK,TRIM4#
74603BCLIP (FOR ASSIST GRIP)
main90467-05021-B0×8i199409-199608
main90467-05021-B1×6i199409-199608
main90467-05021-B2×6i199608-199712
main90467-05021-E1×8i199712
main90467-05021-P0×6i199608-199712
SHADOW GRAY,TRIM1#
74610AGRIP SUB-ASSY, ASSIST
main74610-22050-B1i199409
main74610-22050-E3i199712
main74611-20030-B2i199409
LT.BLUISH GRAY,TRIM1#
main74611-20030-E1i199712
MD.OAK,TRIM4#
74617APLUG, ASSIST GRIP
main74612-22050-B4×2i199409
LT.BLUISH GRAY,TRIM1#
main74612-22050-E6×2i199712
MD.OAK,TRIM4#
9015960353
main90159-60353
9015960503
main90159-60503
9046804147
main90468-04147
9046805047
main90468-05047
9046805118
main90468-05118
9353045016
main93530-45016
9353055016
main93530-55016

20 parts on this diagram · 1 diagram in section

ARMREST & VISOR for Toyota CORSA/TERCEL

This section contains 20 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CORSA/TERCEL. Key components include: ARMREST ASSY, FRONT, RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, PANEL, FRONT ARMREST BASE, UPPER RH, PANEL, FRONT ARMREST BASE, UPPER LH.
