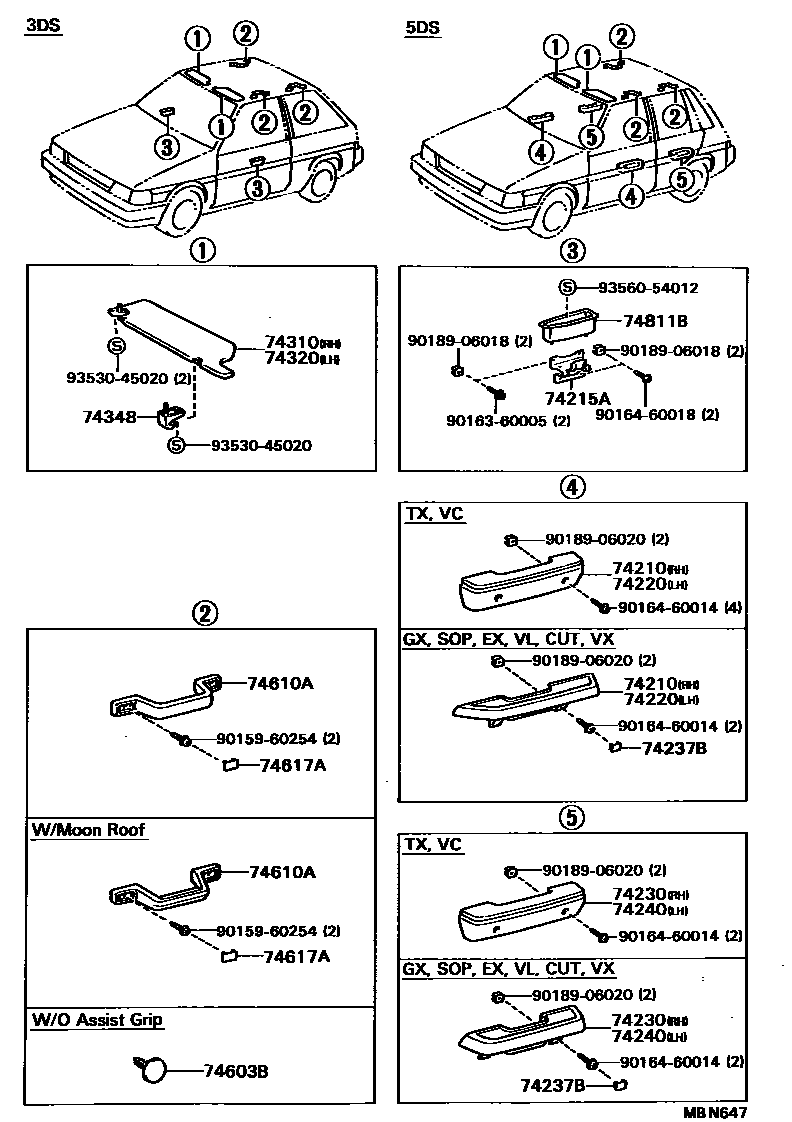

Toyota CORSA/TERCEL — ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
BLACK,TRIM2#
BLUE,TRIM8#
BLACK,TRIM2#
BLUE,TRIM8#
74215ABASE, DOOR ARMREST RH
74220ARMREST ASSY, FRONT, LH
BLACK,TRIM2#
BLUE,TRIM8#
BLACK,TRIM2#
BLUE,TRIM8#
74230ARMREST ASSY, REAR, RH
BLACK,TRIM2#
BLUE,TRIM8#
BLACK,TRIM2#
BLUE,TRIM8#
74237BCAP, DOOR ARMREST BASE
BLACK,TRIM2#
BLUE,TRIM8#
74240ARMREST ASSY, REAR, LH
BLACK,TRIM2#
BLUE,TRIM8#
BLACK,TRIM2#
BLUE,TRIM8#
74310VISOR ASSY, RH
GRAY,TRIM2#
LIGHT BLUE,TRIM8#
GRAY,TRIM2#
LIGHT BLUE,TRIM8#
GRAY,TRIM2#
LIGHT BLUE,TRIM8#
74320VISOR ASSY, LH
LIGHT GRAY,TRIM2#
LIGHT BLUE,TRIM8#
GRAY,TRIM2#
LIGHT BLUE,TRIM8#
74348HOLDER, VISOR
LIGHT GRAY,TRIM2#
LIGHT BLUE,TRIM8#
DEEP BLUE,TRIM8#
SHADOW GRAY,TRIM2#
74603BCLIP (FOR ASSIST GRIP)
main90467-06048-33×2iEL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX; EL30,NL30..TX,VC; EL30..3DS..(TX,VC)198805-198809
main90467-06048-34×2iEL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX; EL30,NL30..TX,VC; EL30..3DS..(TX,VC)198805-198809
main90467-06048-B1×2iEL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX; EL30,NL30..TX,VC; EL30..3DS..(TX,VC)198809-199009
main90467-06048-J0×2iEL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX; EL30,NL30..TX,VC; EL30..3DS..(TX,VC)198809-199009
74610AGRIP SUB-ASSY, ASSIST
LIGHT BLUE,TRIM8#,REAR
LIGHT GRAY,TRIM2#,REAR
main74610-16010-03×3iEL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX; EL30,NL30..TX,VC; EL30..3DS..(TX,VC); EL31..EFI,TBO198805-199009
main74610-16010-04iEL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX; EL30,NL30..TX,VC; EL30..3DS..(TX,VC); EL31..EFI,TBO198805-199009
74617APLUG, ASSIST GRIP
main74617-16010-24×2iEL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX; EL30,NL30..TX,VC; EL30..3DS..(TX,VC)198805-199009
main74617-16010-53×2iEL3#,NL30..CUT,EX,GP,GX,SOP,SXI,UX,VL,VSI,VU,VX; EL30,NL30..TX,VC; EL30..3DS..(TX,VC)198805-199009
74811BHANDLE, DOOR PULL
BLACK,TRIM2#
BLUE,TRIM8#
9015960254
main90159-60254
9016360005
main90163-60005
9016460014
main90164-60014
9016460018
main90164-60018
9018906018
main90189-06018
9018906020
main90189-06020
9353045020
main93530-45020
9356054012
main93560-54012
21 parts on this diagram · 1 diagram in section
ARMREST & VISOR for Toyota CORSA/TERCEL
This section contains 21 genuine Toyota parts for the ARMREST & VISOR system of the Toyota CORSA/TERCEL. Key components include: ARMREST ASSY, FRONT, RH, BASE, DOOR ARMREST RH, ARMREST ASSY, FRONT, LH, ARMREST ASSY, REAR, RH, CAP, DOOR ARMREST BASE.
