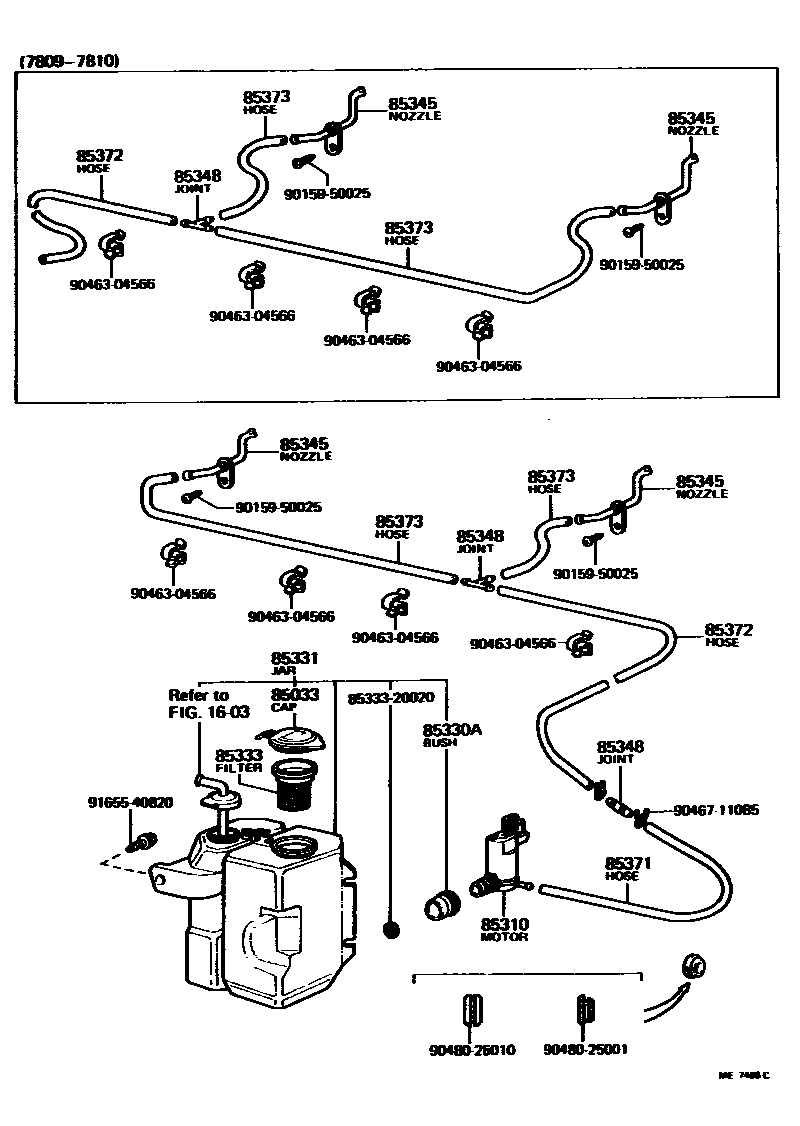

Toyota CORONA — WINDSHIELD WASHER

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

85033CAP ASSY, WINDSHIELD WASHER

main85332-20060i197809-198112

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20120i197809-197908

main85310-20130i197908-198112

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32103i197809-198112

85331JAR SUB-ASSY, WINDSHIELD WASHER

main85330-20240i197809-198004

main85330-20241i198004-198008

85333FILTER, WINDSHIELD WASHER JAR

main85333-20010i197809-198112

85345NOZZLE, WINDSHIELD WASHER

main85341-20130×2i197809-198112

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-89101i197809-198112

3 WAY

main85349-20010i197809-198008

2 WAY

main85355-87201i198008-198112

2 WAY

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33341i197809-198008

L=500

main90446-06286i198008-198112

L=1000(*H,L=400)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33333i197809-197810

L=1200

main90099-33344i197810-198112

L=1300

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33327i197809-197810

L=120

main90099-33331i197810-198112

L=2000(*H,L=600)

main90099-33339i197809-197810

L=650

main90099-33349i197810-198112

L=60

8533320020FILTER, WINDSHIELD WASHER JAR

main85333-20020

9015950025

main90159-50025

9046304566

main90463-04566

9046711085

main90467-11085

9048025001

main90480-25001

9048025010

main90480-25010

9165540820

main91655-40820

18 parts on this diagram · 1 diagram in section

WINDSHIELD WASHER for Toyota CORONA

This section contains 18 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CORONA. Key components include: RADIATOR & WATER OUTLET, CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, JAR SUB-ASSY, WINDSHIELD WASHER.
