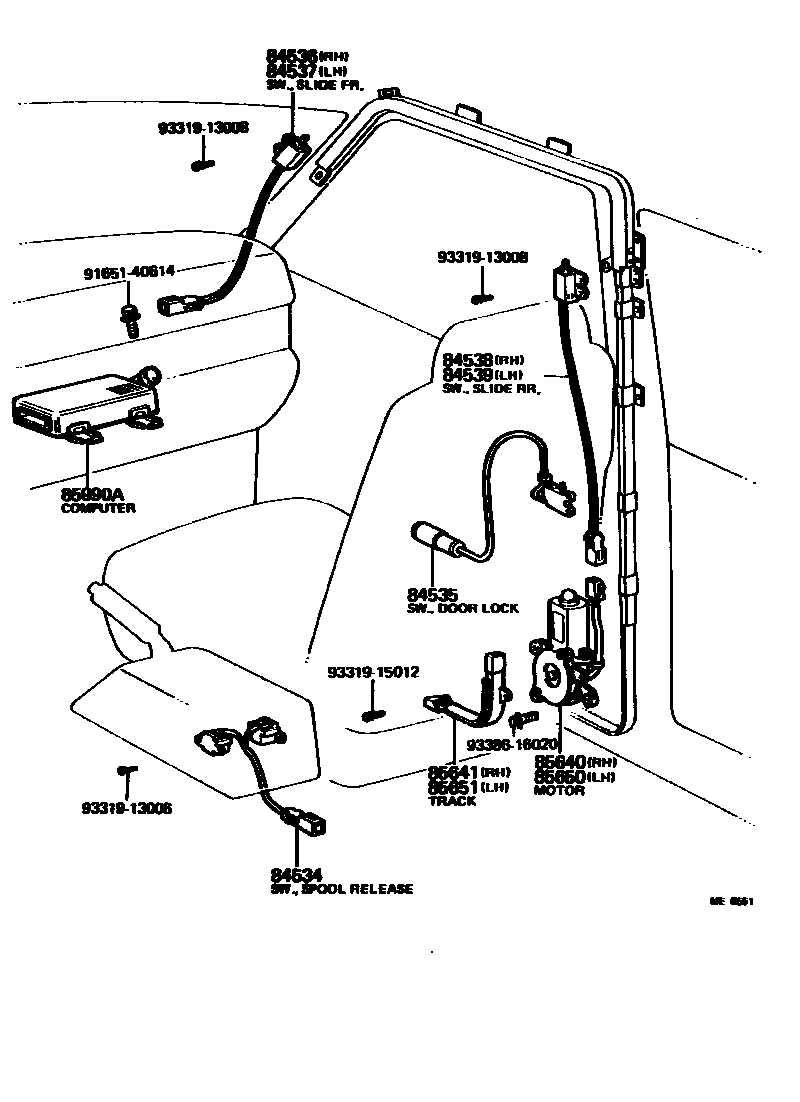

Toyota CORONA — PASSIVE BELT SYSTEM

84534SWITCH, SPOOL RELEASE

main84534-20010iRT134..WPB198001-198003

84535SWITCH, DOOR LOCK

main84535-20010×2iRT134..WPB198001-198003

84536SWITCH, SLIDE RAIL LIMIT, FRONT RH

main84536-20011iRT134..WPB198001-198003

84537SWITCH, SLIDE RAIL LIMIT, FRONT LH

main84537-20011iRT134..WPB198001-198003

84538SWITCH, SLIDE RAIL LIMIT, REAR RH

main84538-20011iRT134..WPB198001-198003

84539SWITCH, SLIDE RAIL LIMIT, REAR LH

main84539-20011iRT134..WPB198001-198003

85640MOTOR ASSY, PASSIVE BELT DRIVE, RH

main85640-20010iRT134..WPB198001-198003

sub85640-22010

85641TRACK, PASSIVE BELT DRIVE, RH

main85641-20010iRT134..WPB198001-198003

85650MOTOR ASSY, PASSIVE BELT DRIVE, LH

main85650-20010iRT134..WPB198001-198003

sub85650-22010

85651TRACK, PASSIVE BELT DRIVE, LH

main85651-20010iRT134..WPB198001-198003

85990ACOMPUTER ASSY, SEAT BELT WARNING (FOR PASSIVE BELT)

main85990-20020iRT134..WPB198001-198003

9165140614

main91651-40614

9331913006

main93319-13006

9331913008

main93319-13008

9331915012

main93319-15012

9338616020

main93386-16020

16 parts on this diagram · 1 diagram in section
