Toyota CORONA — MIRROR

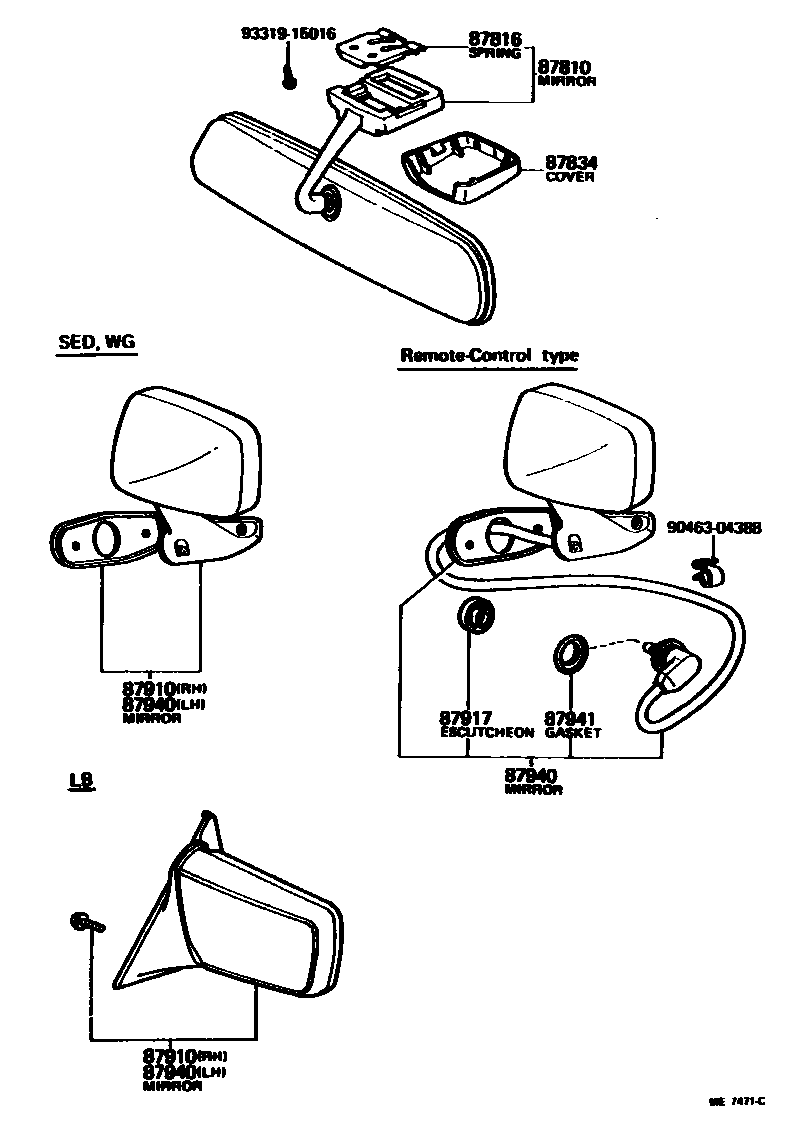

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-14080-03i197809-198008
GRAY,GRAY
main87810-14080-08i198008-198112
IVORY,IVORY
87816SPRING, INNER REAR VIEW MIRROR
main74372-30030i197809-198112
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87834-20071-08i197809-197910
IVORY,IVORY
main87834-20071-15i197809-197910
BEIGE,BEIGE
main87834-20080-08i197910-198112
IVORY,IVORY
main87834-20080-15i197910-198008
BEIGE,BEIGE
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-20300i197908-198008
main87910-29495i198008-198112
main87910-29515i198008-198112
87917ESCUTCHEON
main87917-20020i197809-198008
REMOTE-CONTROL TYPE
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-20290i197809-198008
REMOTE-CONTROL TYPE
main87940-20320i197809-198008
main87940-29515i198008-198112
main87940-29525i198008-198112
main87940-29555i198008-198112
87941GASKET, OUTER REAR VIEW MIRROR, LH
main87941-20090i197809-198112
REMOTE-CONTROL TYPE
9046304388
main90463-04388
9331915016
main93319-15016

9 parts on this diagram · 1 diagram in section

MIRROR for Toyota CORONA

This section contains 9 genuine Toyota parts for the MIRROR system of the Toyota CORONA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, COVER, INNER REAR VIEW MIRROR STAY HOLDER, MIRROR ASSY, OUTER REAR VIEW, RH, ESCUTCHEON.
