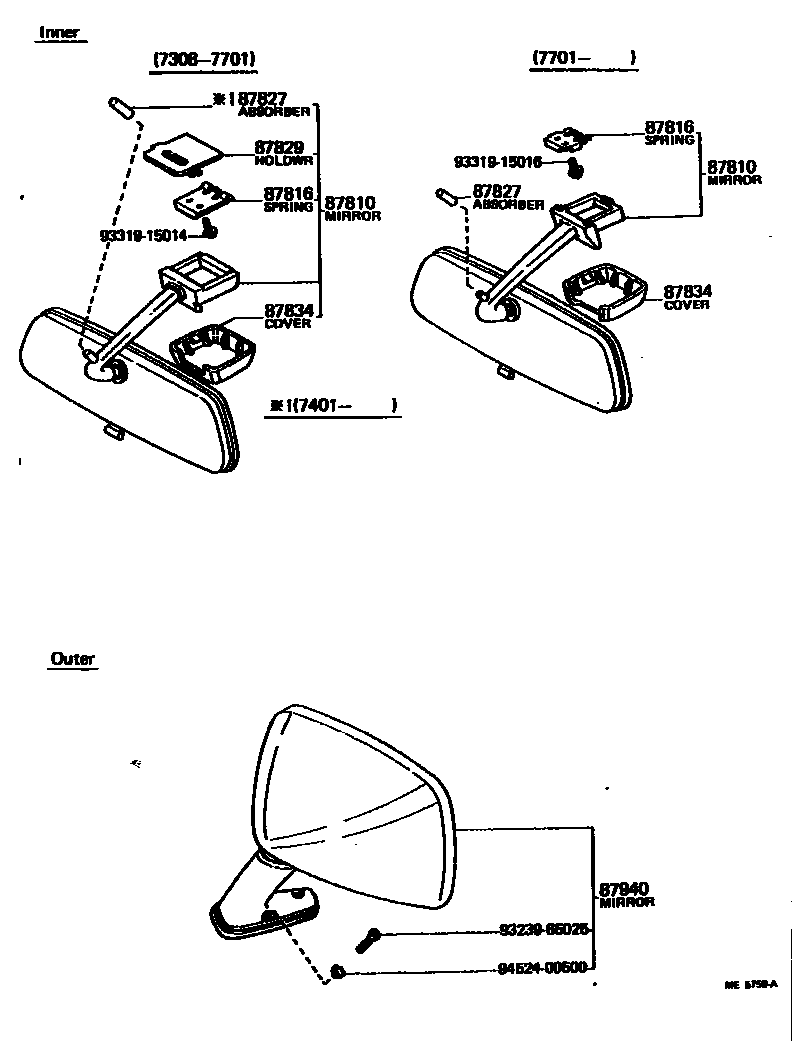

Toyota CORONA — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-20120i197308-197401

main87810-20121i197401-197506

main87810-20130-03i197506-197701

NON GLARE TYPE,GRAY,GRAY

main87810-20130-05i197509-197701

NON GLARE TYPE,BEIGI,BEIGE

main87810-22140i197701-197808

main87810-23020i197701-197808

NON GLARE TYPE

87816SPRING, INNER REAR VIEW MIRROR

main74372-30020i197308-197701

main74372-30030i197701-197808

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22010i197506-197701

NON GLARE TYPE

main87828-23010i197401-197701

87829HOLDER, INNER REAR VIEW MIRROR STAY

main87829-20020i197308-197701

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20070-03i197308-197701

GRAY,GRAY

main87834-20070-05i197509-197701

BEIGE,BEIGE

main87834-20070-13i197701-197808

GRAY,GRAY

main87834-20070-15i197701-197808

BEIGE,BEIGE

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-20121i197510-197701

main87940-20170i197701-197707

main87940-20171i197707-197808

main87940-20903i197308-197510

9323965025

main93239-65025

9331915014

main93319-15014

9331915016

main93319-15016

9452400500

main94524-00500

10 parts on this diagram · 1 diagram in section

MIRROR for Toyota CORONA

This section contains 10 genuine Toyota parts for the MIRROR system of the Toyota CORONA. Key components include: MIRROR ASSY, INNER REAR VIEW, SPRING, INNER REAR VIEW MIRROR, ABSORBER, INNER REAR VIEW MIRROR, HOLDER, INNER REAR VIEW MIRROR STAY, COVER, INNER REAR VIEW MIRROR STAY HOLDER.
