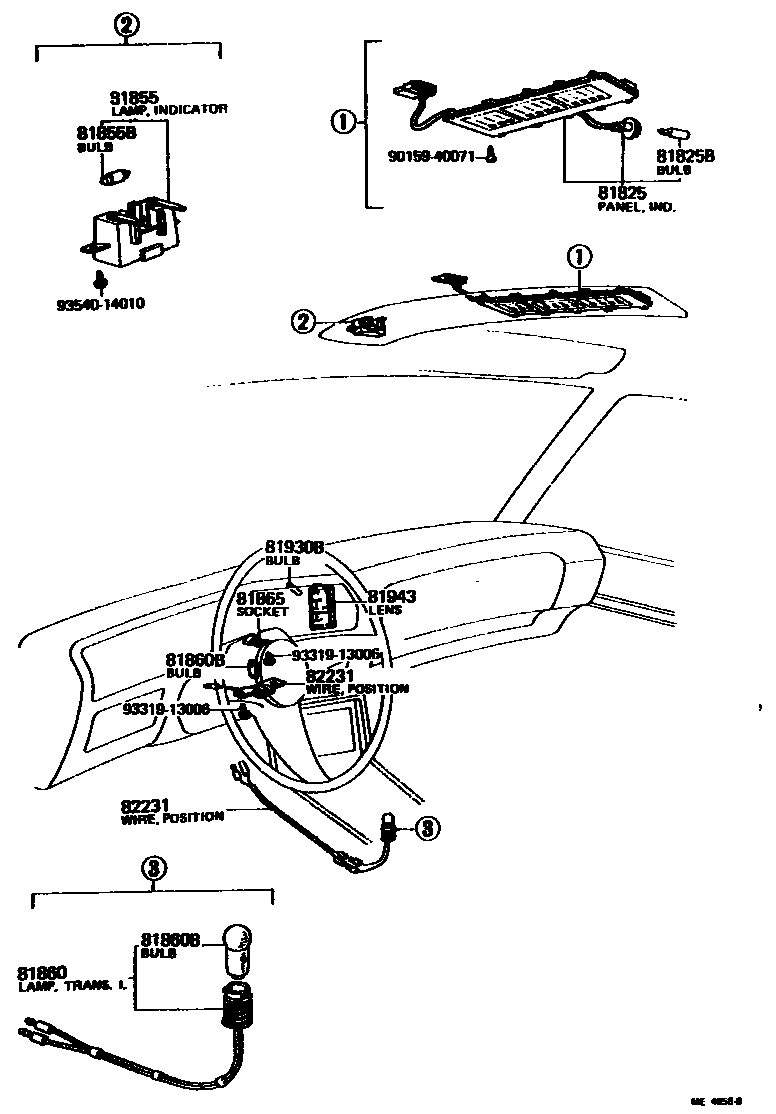

Toyota CORONA — INDICATOR

0001 1 0002 1

81825PANEL ASSY, CONDITION INDICATOR

main81820-20020iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197506

main81820-20021iRT119..3HC;RT105..3FC..4D197601-197701

81825BBULB, CONDITION INDICATOR PANEL

main90981-11018×4iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197506

12V 1.4W

81855LAMP ASSY, INDICATOR (FOR OK MONITER)

main81850-20030iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197506

81855BBULB, INDICATOR LAMP (FOR OK MONITER)

main90981-11010iRT118..4F;RT105..3FC..4D;RT104..3FC..STD197308-197506

12V 2W

81860LAMP ASSY, TRANSMISSION INDICATOR

main81860-22011iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

81860BBULB, TRANSMISSION INDICATOR LAMP

main90981-11006iRT119..3HC197605-197808

12V 3W,12V

main99132-11034×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

12V 3.4W,12V 3.4W

81865SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP

main35963-30030iRT119..3HC197605-197808

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81850-20050iRT119..3HC197701-197808

81930BBULB, HEATER CONTROL INDICATOR LAMP

main90981-11009iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

12V 1.5W

main90981-11018×2iRT119..3HC197701-197808

12V 1.2W W/O SOCKET,12V 1.4W

81943LENS, HEATER CONTROL INDICATOR

main81943-20020iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main81943-20021iRT119..3HC197701-197808

main81943-20040iRT119..3HC;RT105..3FC..4D197408-197701

FOR COOLER

main81943-20060iRT119..3HC197605-197701

FOR BOOST VENTILATOR

main81943-20061iRT119..3HC197701-197808

FOR BOOST VENTILATOR

82231WIRE, POSITION INDICATOR LAMP

main35977-30040iRT119..3HC197605-197808

main82232-20010iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197701

main82232-20020iRT119..3HC197701-197808

9015940071

main90159-40071

9331913006

main93319-13006

9354014010

main93540-14010

14 parts on this diagram · 2 diagrams in section
