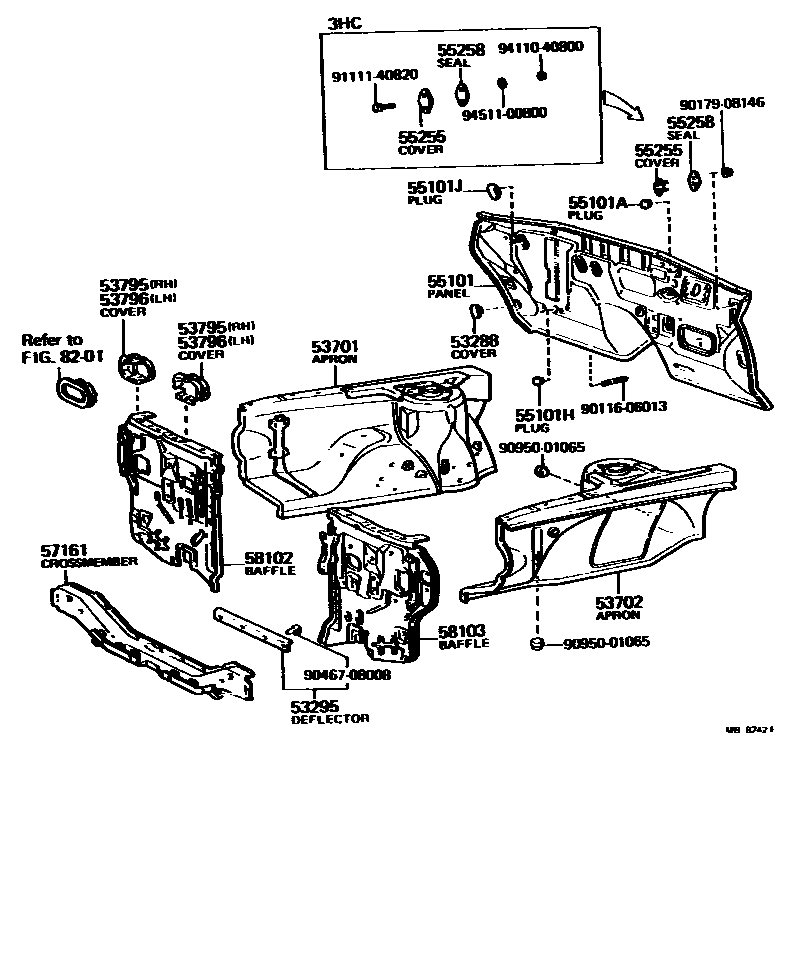

Toyota CORONA — FRONT FENDER APRON & DASH PANEL

53288COVER, POWER STEERING PIPE HOLE

main53288-20010i197908-198112

53295DEFLECTOR, RADIATOR LOWER AIR

main53295-14021i197809-197908

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-20340i197809-197908

main53701-20341i197908-198112

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-20420i197809-198008

main53702-20421i198008-198112

53795COVER, HEADLAMP WIRE HARNESS HOLE, RH

main53793-20020i197809-198008

W/COOLER,INNER

main53795-20040i197809-198008

W/COOLER,OUTER

53796COVER, HEADLAMP WIRE HARNESS HOLE, LH

main53793-20020i197809-198008

W/COOLER,INNER

main53795-20040i197809-198008

W/COOLER,OUTER

55101PANEL SUB-ASSY, DASH

main55101-20902i197809-197905

main55101-20910i197905-198008

main55101-20918i198008-198112

55101APLUG, HOLE, NO.1(FOR DASH PANEL)

main90950-01133i197809-198112

55101HPLUG, HOLE, NO.2(FOR DASH PANEL)

main90950-01060i197809-198112

55101JPLUG, HOLE, NO.3(FOR DASH PANEL)

main90950-01189i197809-198112

55255COVER, CLUTCH MASTER CYLINDER HOLE

main55255-20010i197809-198008

main55255-22020i197809-198112

55258SEAL, CLUTCH MASTER CYLINDER HOLE

main55258-20010i197809-198112

57161CROSSMEMBER, FRONT

main57104-20901i197809-198112

58102BAFFLE SUB-ASSY, RADIATOR SIDE, RH

main53202-20030i197809-198008

main53202-20031i198008-198112

58103BAFFLE SUB-ASSY,RADIATOR SIDE, LH

main53203-20050i197809-198008

main53203-20051i198008-198112

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

9011606013

main90116-06013

9017908146

main90179-08146

9046708008

main90467-08008

9095001065

main90950-01065

9111140820

main91111-40820

9411040800

main94110-40800

9451100800

main94511-00800

23 parts on this diagram · 1 diagram in section

FRONT FENDER APRON & DASH PANEL for Toyota CORONA

This section contains 23 genuine Toyota parts for the FRONT FENDER APRON & DASH PANEL system of the Toyota CORONA. Key components include: COVER, POWER STEERING PIPE HOLE, DEFLECTOR, RADIATOR LOWER AIR, APRON SUB-ASSY, FRONT FENDER, RH, APRON SUB-ASSY, FRONT FENDER, LH, COVER, HEADLAMP WIRE HARNESS HOLE, RH.
