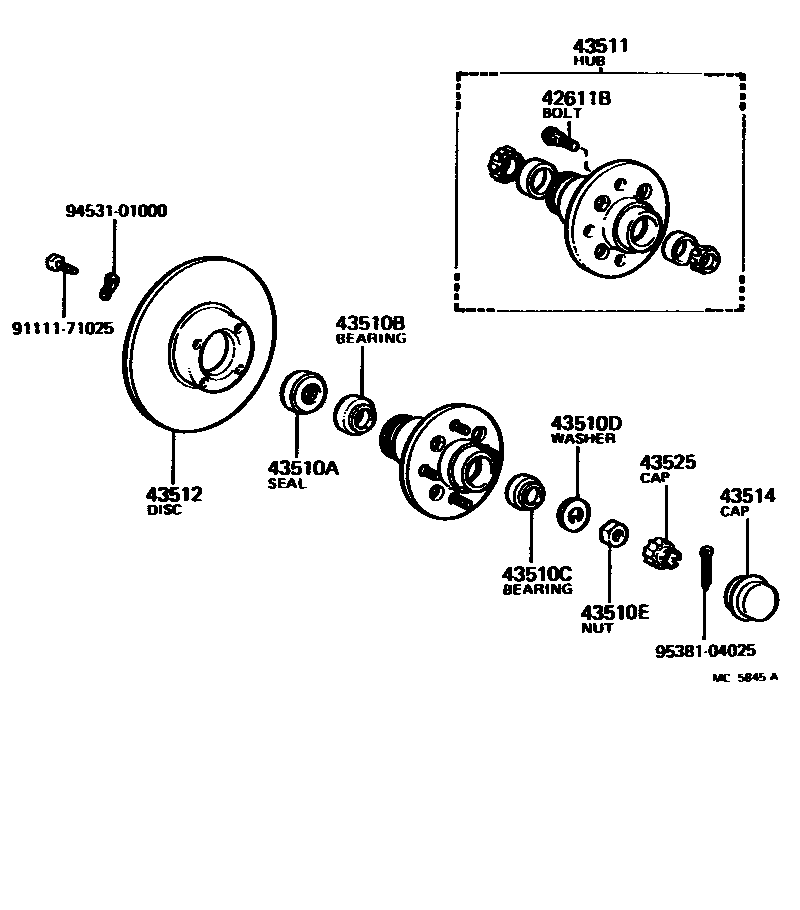

Toyota CORONA — FRONT AXLE HUB

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02035×8i197809-198112

*12-1.5PX36-23.5

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48122×2i197809-198112

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31002×2i197809-198008

main90368-31067×2i198008-198112

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037×2i197809-198112

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005×2i197809-198112

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185×2i197809-198112

43511HUB, FRONT AXLE

main43502-29015×2i197809-198112

43512DISC, FRONT

main43512-22030×2i197904-198112

main43512-22040×2i197809-197904

43514CAP, FRONT HUB GREASE

main43514-22020×2i197809-198112

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2i197809-198112

9111171025

main91111-71025

9453101000

main94531-01000

9538104025

main95381-04025

13 parts on this diagram · 1 diagram in section

FRONT AXLE HUB for Toyota CORONA

This section contains 13 genuine Toyota parts for the FRONT AXLE HUB system of the Toyota CORONA. Key components include: BOLT, HUB (FOR FRONT AXLE), SEAL, OIL (FOR FRONT AXLE HUB), BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING), BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING), WASHER, CLAW (FOR STEERING KNUCKLE WASHER).
