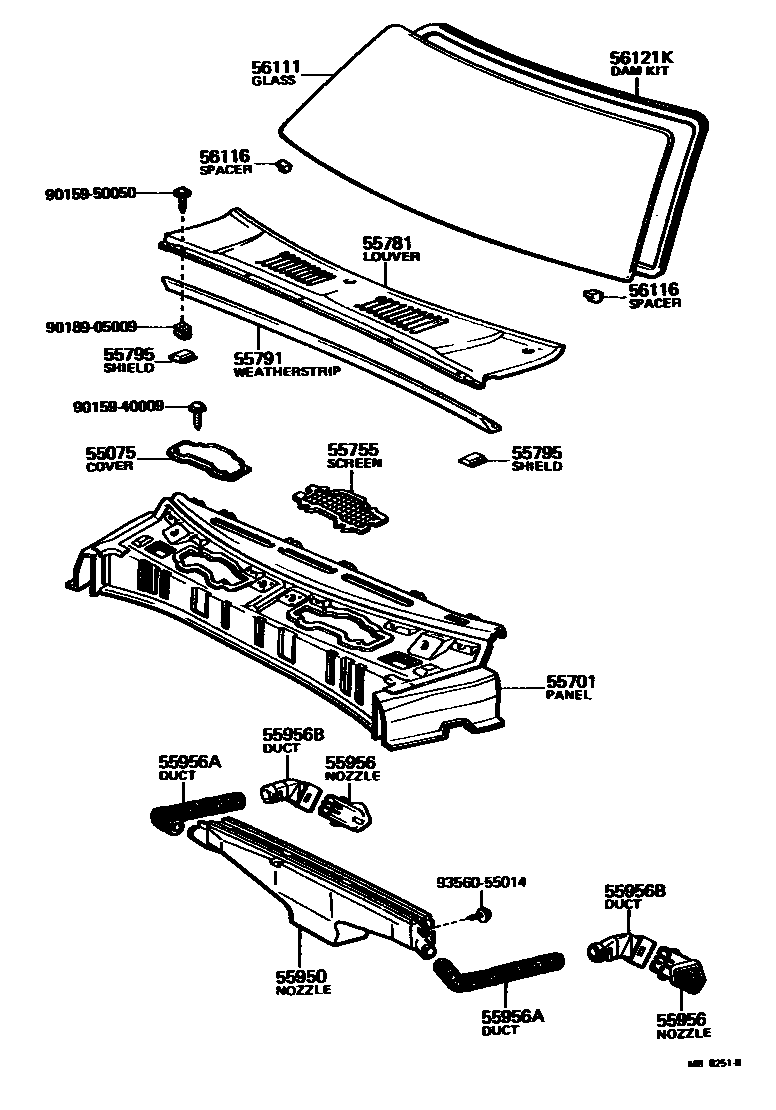

Toyota CORONA — COWL PANEL & WINDSHIELD GLASS
55075COVER SUB-ASSY, HEATER AIR DUCT HOLE
55701PANEL SUB-ASSY, COWL
W/AUTO DRIVE
55755SCREEN, HEATER AIR DUCT
55791WEATHERSTRIP, HOOD TO COWL TOP
55795SHIELD, COWL TOP TO LOUVER, SIDE
55950NOZZLE ASSY, DEFROSTER
55956NOZZLE, SIDE DEFROSTER
RH,BLACK,BLACK
RH,DARK WINE,RED/MAROON
RH,BEIGE,BEIGE
RH,LIGHT BROWN,BROWN
LH,BLACK,BLACK
LH,DARK WINE,RED/MAROON
LH,BEIGE,BEIGE
LH,LIGHT BROWN,BROWN
55956ADUCT, SIDE DEFROSTER NOZZLE, NO.1
55956BDUCT, SIDE DEFROSTER NOZZLE, NO.2
RH
LH
56111GLASS, WINDSHIELD
*TL,T=5.3
*TL,T=5.3
*TL,T=5.3
*TL,T=5.3
56116SPACER, WINDSHIELD GLASS
56121KDAM KIT, WINDSHIELD GLASS
9015940009
main90159-40009
9015950050
main90159-50050
9018905009
main90189-05009
9356055014
main93560-55014
17 parts on this diagram · 1 diagram in section
COWL PANEL & WINDSHIELD GLASS for Toyota CORONA
This section contains 17 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CORONA. Key components include: COVER SUB-ASSY, HEATER AIR DUCT HOLE, PANEL SUB-ASSY, COWL, SCREEN, HEATER AIR DUCT, LOUVER, COWL VENTILATOR, WEATHERSTRIP, HOOD TO COWL TOP.
