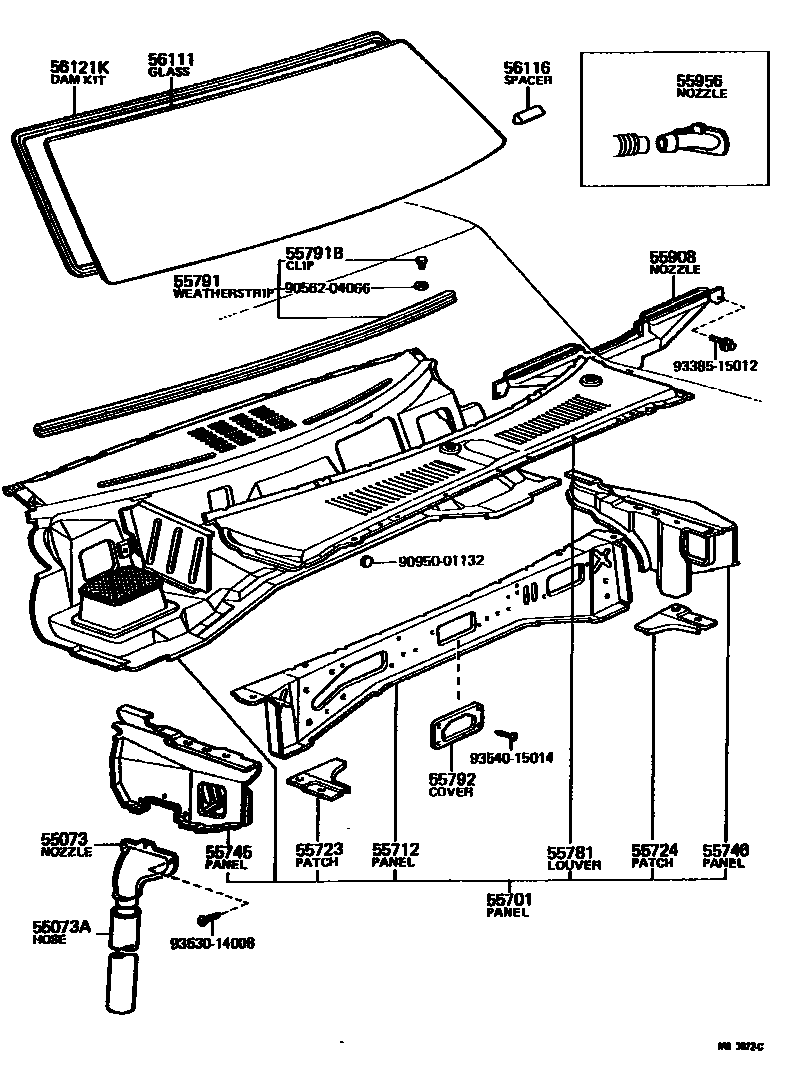

Toyota CORONA — COWL PANEL & WINDSHIELD GLASS

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20010×2i197308-197511

55073AHOSE(FOR EXTRACT NOZZLE)

main90445-33003×2i197308-197511

55701PANEL SUB-ASSY, COWL

main55700-20070i197308-197512

main55700-20080i197512-197701

main55700-20081i197701-197808

55712PANEL, COWL TOP OUTSIDE, FRONT

main55712-20906i197308-197701

main55712-20908i197701-197808

55723PATCH, COWL TOP OUTER CORNER, RH

main55723-20020i197308-197808

55724PATCH, COWL TOP OUTER CORNER, LH

main55724-20020i197308-197808

55745PANEL, COWL TOP OUTSIDE, RH

main55706-20030i197308-197312

main55706-20040i197312-197708

main55706-20050i197708-197808

55746PANEL, COWL TOP OUTSIDE, LH

main55705-20030i197708-197808

main55707-20010i197308-197312

main55707-20020i197312-197708

55781LOUVER, COWL VENTILATOR

main55711-20080i197308-197808

55791WEATHERSTRIP, HOOD TO COWL TOP

main53383-20030i197308-197808

55791BCLIP(FOR HOOD TO COWL TOP WEATHERSTRIP)

main90467-07050×8i197308-197610

main90467-08008×8i197610-197808

55792COVER, WIPER MOTOR SERVICE HOLE

main55071-20010×3i197308-197808

55908NOZZLE SUB-ASSY, DEFROSTER, RH

main55950-20010i197308-197808

55956NOZZLE, SIDE DEFROSTER

main55961-20030i197701-197808

FOR RH.

main55962-20030i197701-197808

FOR LH.

56111GLASS, WINDSHIELD

main56111-20190i197308-197808

TN.LM.T=5.7

main56111-20230i197308-197608

TN.LM.T=5.0

main56111-20240i197308-197808

LM.T=5.0

56116SPACER, WINDSHIELD GLASS

main56116-20030×2i197308-197808

main56116-20040×2i197308-197808

56121KDAM KIT, WINDSHIELD GLASS

main04562-30010i197308-197709

main04562-30020i197709-197808

9056204066

main90562-04066

9095001132

main90950-01132

9338515012

main93385-15012

9353014008

main93530-14008

9354015014

main93540-15014

22 parts on this diagram · 1 diagram in section

COWL PANEL & WINDSHIELD GLASS for Toyota CORONA

This section contains 22 genuine Toyota parts for the COWL PANEL & WINDSHIELD GLASS system of the Toyota CORONA. Key components include: NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT, HOSE(FOR EXTRACT NOZZLE), PANEL SUB-ASSY, COWL, PANEL, COWL TOP OUTSIDE, FRONT, PATCH, COWL TOP OUTER CORNER, RH.
