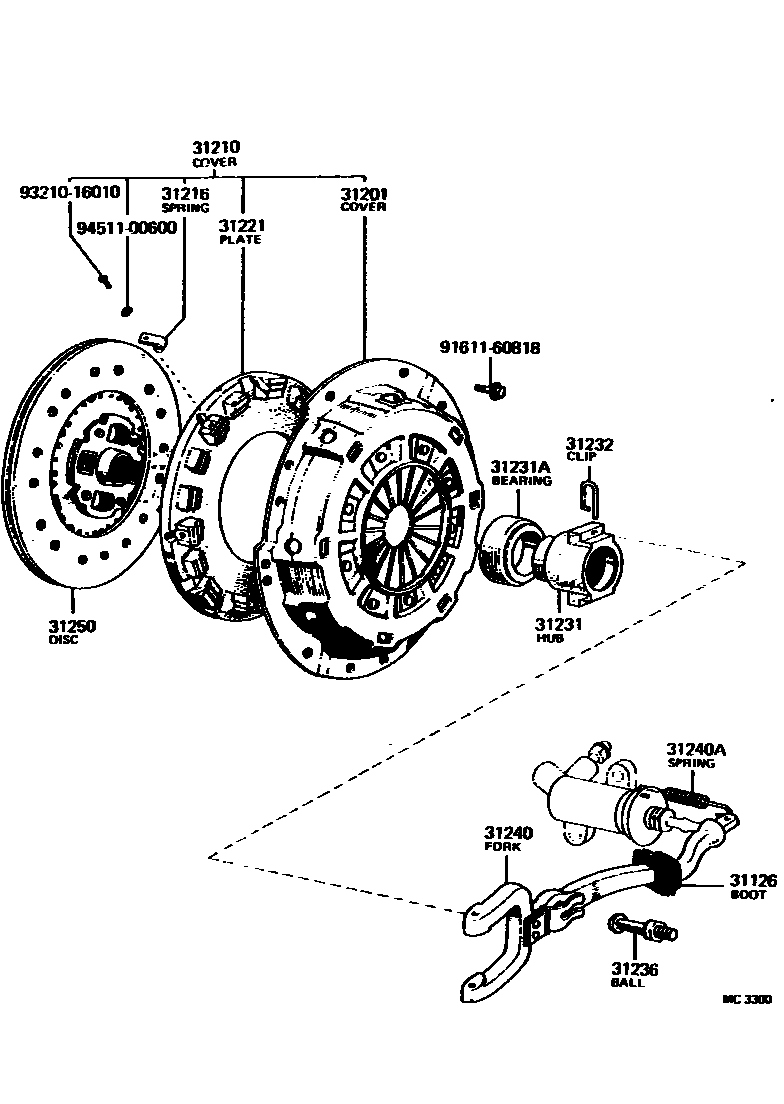

Toyota CORONA — CLUTCH & RELEASE FORK
31126BOOT, CLUTCH RELEASE FORK
31201COVER SUB-ASSY, CLUTCH
31210COVER ASSY, CLUTCH
31216SPRING, CLUTCH RETRACTING
31221PLATE, CLUTCH PRESSURE
31231HUB, CLUTCH RELEASE BEARING
31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)
40TRK39-1
31232CLIP OR SPRING, RELEASE BEARING HUB
31236BALL, RELEASE FORK
31240FORK ASSY, CLUTCH RELEASE
31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)
31250DISC ASSY, CLUTCH
9161160818
main91611-60818
9321016010
main93210-16010
9451100600
main94511-00600
15 parts on this diagram · 2 diagrams in section
CLUTCH & RELEASE FORK for Toyota CORONA
This section contains 20 genuine Toyota parts for the CLUTCH & RELEASE FORK system of the Toyota CORONA. Key components include: BOOT, CLUTCH RELEASE FORK, COVER SUB-ASSY, CLUTCH, COVER ASSY, CLUTCH, SPRING, CLUTCH RETRACTING, PLATE, CLUTCH PRESSURE.
