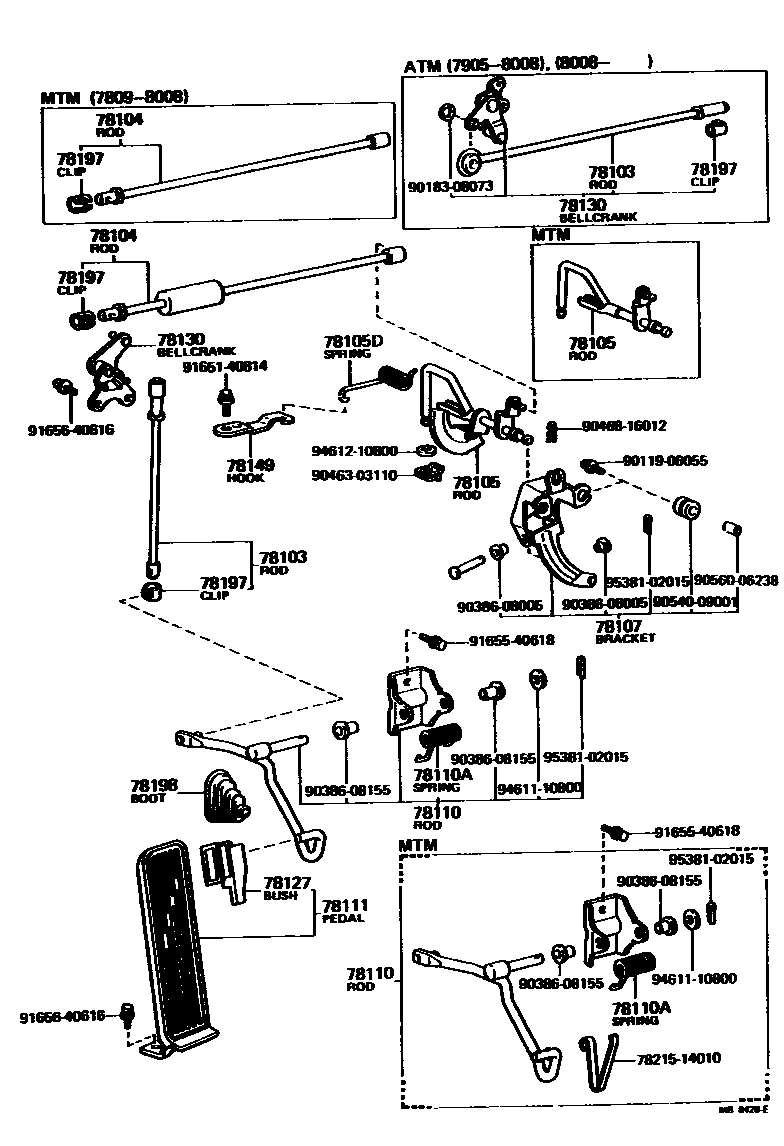

Toyota CORONA — ACCELERATOR LINK
78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1
78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3
W/AUTO DRIVE
W/AUTO DRIVE
78105DSPRING (FOR ACCELERATOR TORQUE ROD)
78107BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD
W/AUTO DRIVE
78110ROD ASSY, ACCELERATOR PEDAL
78110ASPRING (FOR ACCELERATOR PEDAL ROD)
78111PEDAL, ACCELERATOR
78127BUSH, ACCELERATOR PEDAL, NO.2
78130BELLCRANK ASSY, ACCELERATOR
78149HOOK, ACCELERATOR TORQUE ROD SPRING
78197CLIP, ACCELERATOR JOINT BALL
78198BOOT, ACCELERATOR CONNECTING ROD
7821514010CASE, ACCELERATOR LINK
main78215-14010
9011906055
main90119-06055
9018308073
main90183-08073
9038608005
main90386-08005
9038608155
main90386-08155
9046303110
main90463-03110
9046816012
main90468-16012
9054009001
main90540-09001
9056006238
main90560-06238
9165140814
main91651-40814
9165540618
main91655-40618
9165640616
main91656-40616
9461110800
main94611-10800
9461210800
main94612-10800
9538102015
main95381-02015
28 parts on this diagram · 2 diagrams in section
ACCELERATOR LINK for Toyota CORONA
This section contains 29 genuine Toyota parts for the ACCELERATOR LINK system of the Toyota CORONA. Key components include: ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2, ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3, SPRING (FOR ACCELERATOR TORQUE ROD), BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD.
