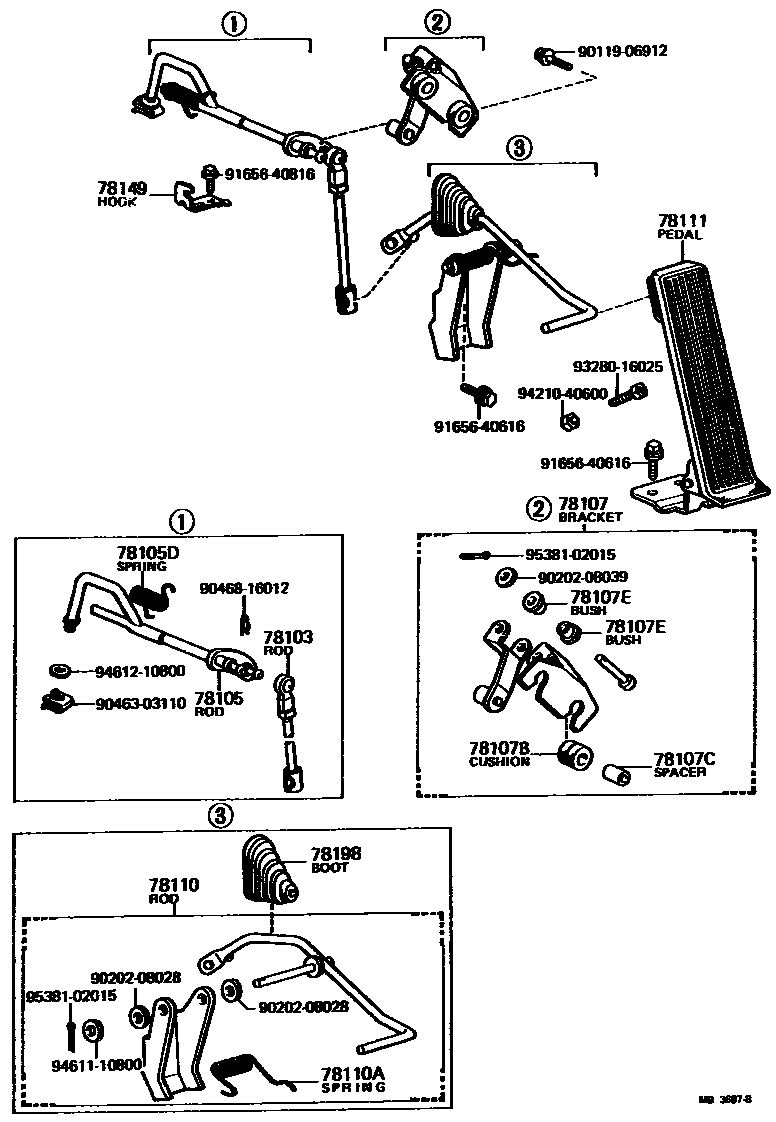

Toyota CORONA — ACCELERATOR LINK

0001 1 0002 1 0003 1

78103ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.1

main78103-20070iRT118..4F;RT104..3FC..STD197308-197408

sub78103-20071

main78103-20090iRT119..3HC;RT105..3FC..4D197408-197808

sub78103-89109

78105ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.3

main78105-20240iRT118..4F;RT104..3FC..STD197308-197408

main78105-20290iRT119..3HC;RT105..3FC..4D197408-197808

main78105-20300iRT119..3HC;RT105..3FC..4D197408-197808

78105DSPRING (FOR ACCELERATOR TORQUE ROD)

main90508-14365iRT118..4F;RT104..3FC..STD197308-197408

main90508-14407iRT119..3HC;RT105..3FC..4D197408-197808

78107BRACKET SUB-ASSY, ACCELERATOR TORQUE ROD

main78107-20110iRT118..4F;RT104..3FC..STD197308-197408

main78107-20140iRT119..3HC;RT105..3FC..4D197408-197808

78107BCUSHION (FOR ACCELERATOR TORQUE ROD BRACKET)

main90540-09059×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

78107CSPACER (FOR ACCELERATOR TORQUE ROD BRACKET)

main90560-06238×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

78107EBUSH (FOR ACCELERATOR TORQUE ROD BRACKET)

main90386-08077×2iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

78110ROD ASSY, ACCELERATOR PEDAL

main78110-20140iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

78110ASPRING (FOR ACCELERATOR PEDAL ROD)

main90508-26377iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

78111PEDAL, ACCELERATOR

main78010-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

78149HOOK, ACCELERATOR TORQUE ROD SPRING

main78149-20060iRT119..3HC;RT105..3FC..4D197408-197808

main78178-22020iRT118..4F;RT104..3FC..STD197308-197408

78198BOOT, ACCELERATOR CONNECTING ROD

main78199-20030iRT118..4F;RT119..3HC;RT105..3FC..4D;RT104..3FC..STD197308-197808

9011906912

main90119-06912

9020208028

main90202-08028

9020208039

main90202-08039

9046303110

main90463-03110

9046816012

main90468-16012

9165640616

main91656-40616

9165640816

main91656-40816

9328016025

main93280-16025

9421040600

main94210-40600

9461110800

main94611-10800

9461210800

main94612-10800

9538102015

main95381-02015

24 parts on this diagram · 3 diagrams in section
