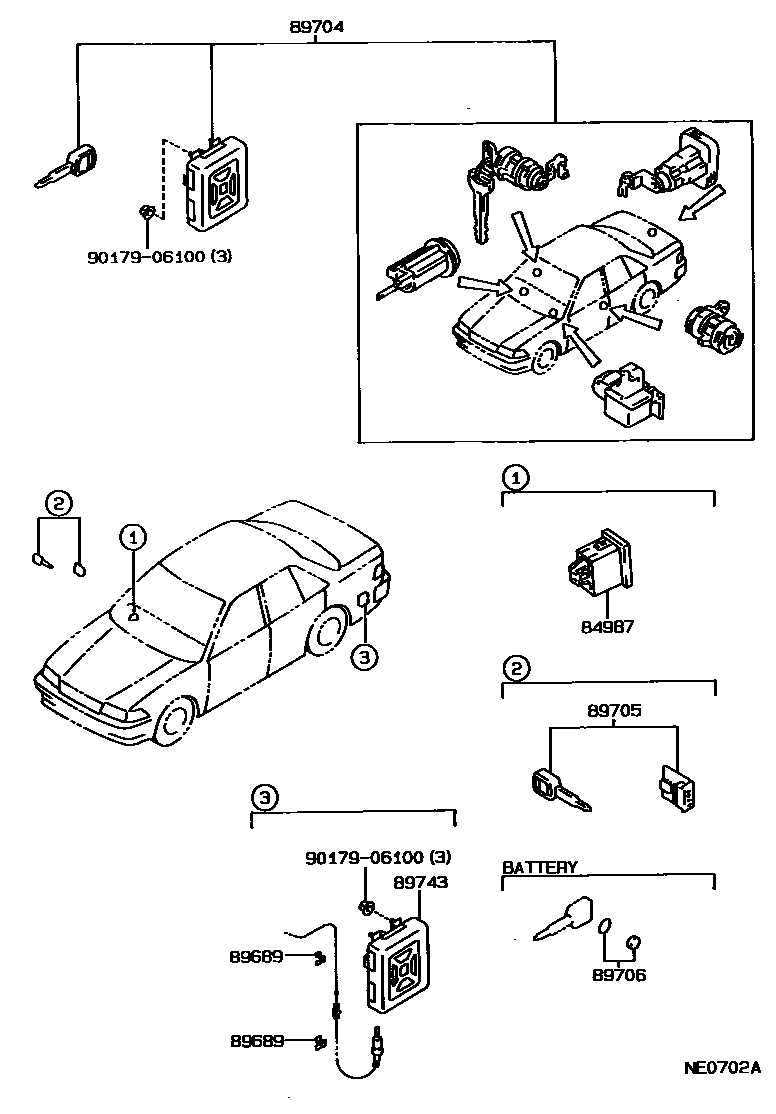

Toyota CORONA — WIRELESS DOOR LOCK

0001 1 0002 1

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-20010iST170..EXS,SELS,X;CT170,ST171..EXG,EXS,G,GT,GTR,SXR198712-199202

sub84987-17010

89689CLAMP, WIRELESS DOOR LOCK

main89689-20010iCT170,ST17#..EXG,EXS,GTR,SXR198712-199202

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-20020iST170..EXS,SELS;CT170,ST171..EXG,EXS,GTR,SXR198712-199202

main89704-20030iST17#..G,GT,X198712-199202

main89704-20040iST17#..G,GT,X198712-199202

89705TRANSMITTER, DOOR CONTROL

main89705-20010iCT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

89706BATTERY SET, TRANSMITTER

main89706-30010iCT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

sub89745-48020

sub90301-15006

89743RECEIVER, DOOR CONTROL

main89743-20010iCT170,ST17#..EXG,EXS,GTR,SXR198712-199202

main89743-20020iST17#..G,GT,X198712-199202

9017906100

main90179-06100

7 parts on this diagram · 2 diagrams in section
