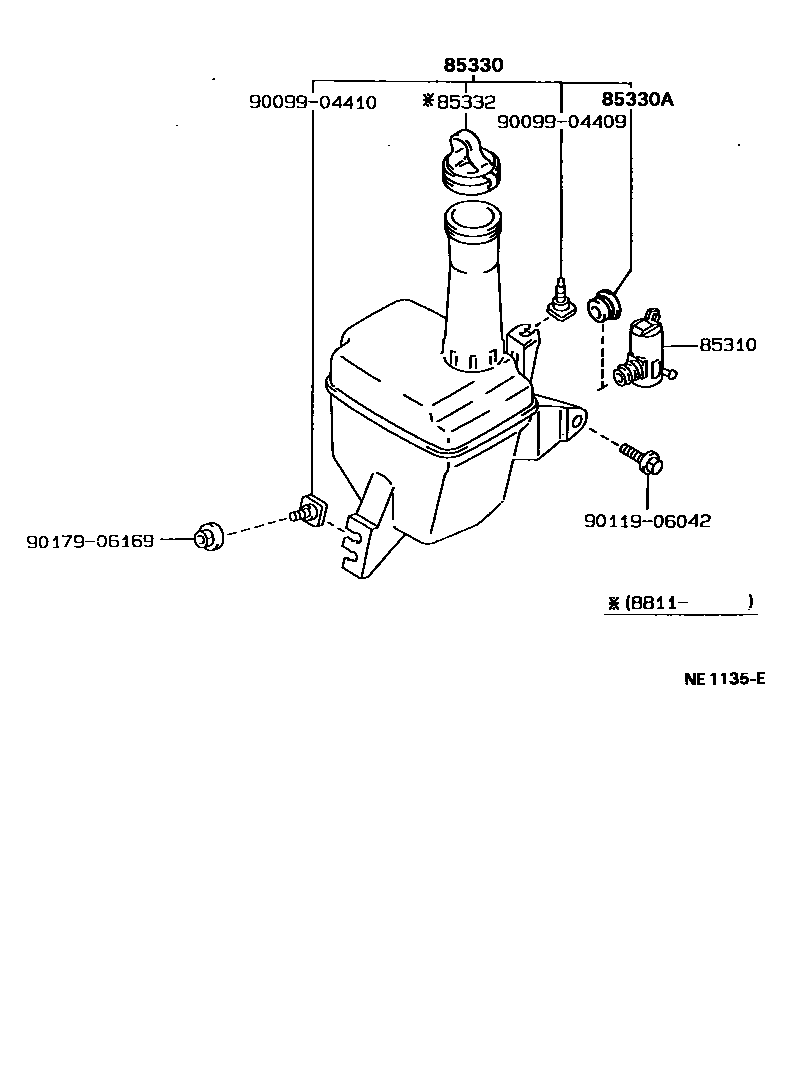

Toyota CORONA — WINDSHIELD WASHER

0001 1 0002 1W(ANTI-LOCK BRAKE SYSTEM) 0003 1

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iAT17#,CT17#,ET176,ST17#198712-199211

85330JAR ASSY, WINDSHIELD WASHER

main85315-20250iAT170..EXS,GX,SELS198911-199202

main85315-20250iAT170..EXS,GX,SELS199008-199202

main85331-20630iET176..DX,STD;AT17#,CT17#,ST17#..SED,VAN198712-198811

sub85331-20631

main85331-20631iET176..DX,STD;AT17#,CT17#,ST17#..SED,VAN198811-199211

main85331-20640iET176..STD;AT17#,CT170,ST17#..SED198809-198811

sub85331-20641

main85331-20640iCT176,ET176..DX198809-198811

sub85331-20641

main85331-20640iCT176,ET176..DX198712-198809

sub85331-20641

main85331-20640iET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)198712-198811

sub85331-20641

main85331-20641iCT176,ET176..DX198901-199211

main85331-20641iCT176,ET176..DX198811-198901

main85331-20641iCT176,ET176..DX198811-199202

main85331-20641iET176,ST17#..(LB,VAN)..(G,GT,GX,X,Z)198811-199211

main85331-20641iET176..STD198901-199211

main85331-20650iAT170..EXS198808-198911

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iAT175198808-199211

85332CAP, WINDSHIELD WASHER JAR

main85316-20250iAT170..MTM..GX;AT170..EXS,SELS198911-199202

sub85316-16070

main85332-20650iAT170..EXS198811-198911

main85332-32130iAT170..EXS198809-198811

main85332-32130iAT170..EXS198808-198809

main85332-32161iAT17#,CT17#,ET176,ST17#198811-199211

9009904409

main90099-04409

9009904410

main90099-04410

9011906042

main90119-06042

9017906169

main90179-06169

8 parts on this diagram · 3 diagrams in section
