Toyota CORONA — WINDSHIELD WASHER

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080i198301-198711

85330JAR ASSY, WINDSHIELD WASHER

main85331-20430i198301-198711

main85331-20440i198301-198711

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089i198301-198711

85332CAP, WINDSHIELD WASHER JAR

main85332-20430i198301-198406

main85332-20431i198406-198711

main85332-20440i198301-198406

W/RR WIPER

main85332-20441i198406-198711

9009904301

main90099-04301

9009904987

main90099-04987

9011906070

main90119-06070

9017906026

main90179-06026

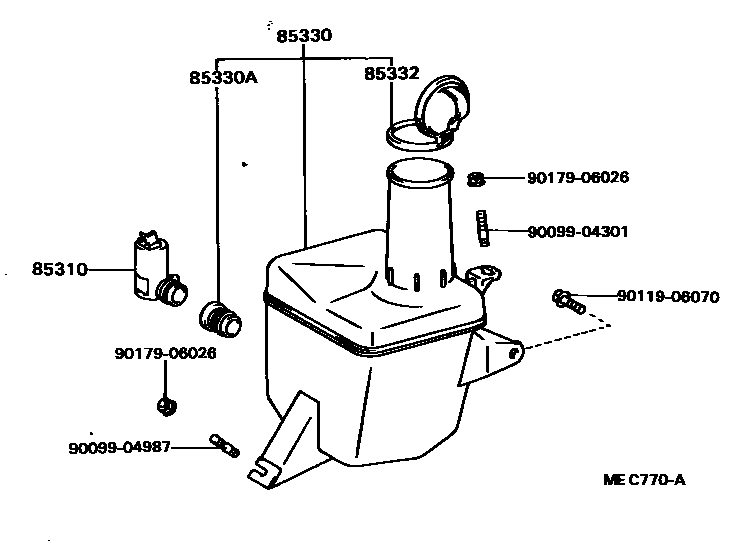

8 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CORONA

This section contains 24 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CORONA. Key components include: VALVE SUB-ASSY, WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, CAP, WINDSHIELD WASHER JAR.
