Toyota CORONA — WINDSHIELD WASHER

85342HOLDER, WASHER NOZZLE

main85342-14010×2i198612-198712

85345NOZZLE, WINDSHIELD WASHER

main85035-19015×2i198201-198508

main85035-19025×2i198201-198612

main85035-20200×2i198612-199804

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122i198612-198712

2-WAY,NO.2

main85355-12250i198201-199804

3-WAY

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85355-14481×2i198201-199804

85355VALVE, WINDSHIELD WASHER HOSE

main85031-12250×2i198612-199804

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33299i198201-198508

main90446-06013i198209-199804

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001i198201-198612

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33299i198201-198508

main90446-06013i198612-199804

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9046400300

main90464-00300

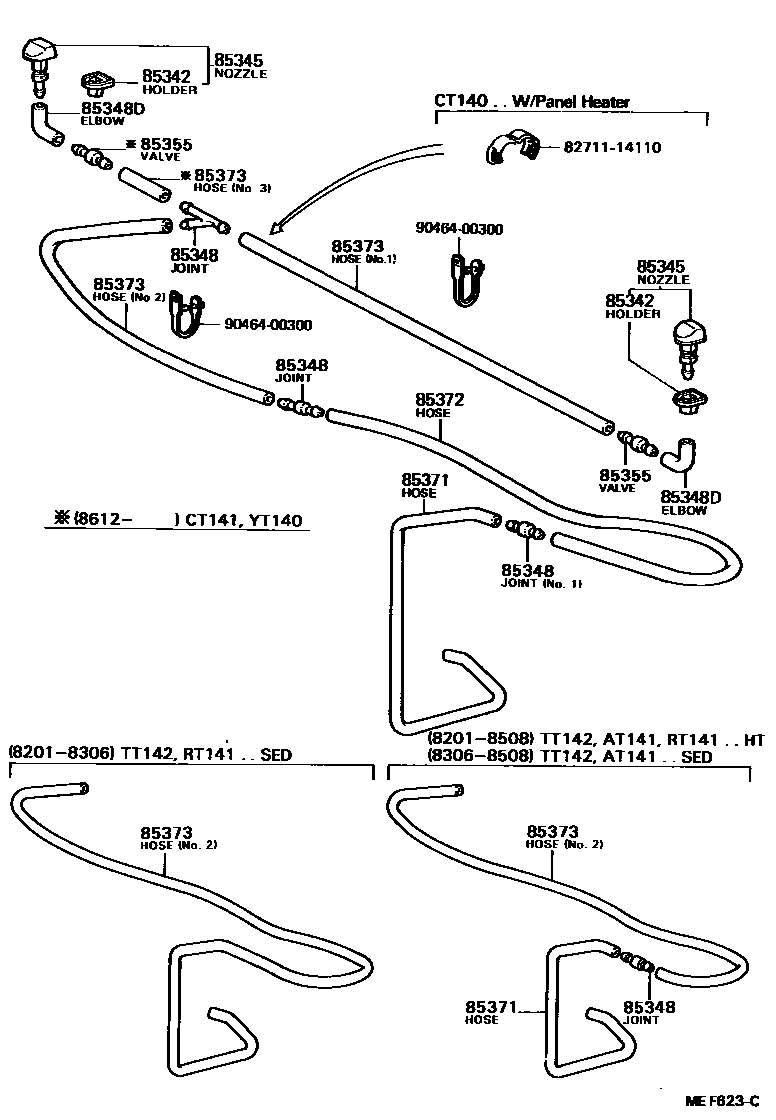

10 parts on this diagram · 2 diagrams in section

WINDSHIELD WASHER for Toyota CORONA

This section contains 21 genuine Toyota parts for the WINDSHIELD WASHER system of the Toyota CORONA. Key components include: CAP ASSY, WINDSHIELD WASHER, MOTOR AND PUMP ASSY, WINDSHIELD WASHER, JAR ASSY, WINDSHIELD WASHER, BUSH, WINDSHIELD WASHER JAR, HOSE, BREATHER.
