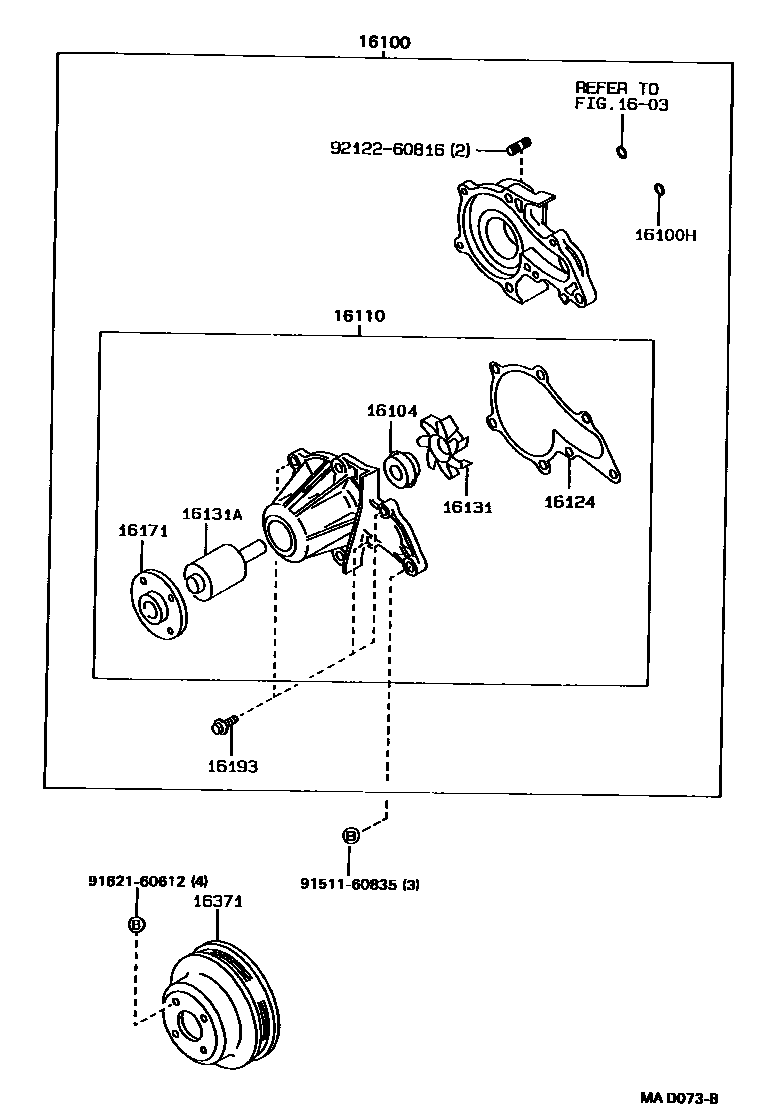

Toyota CORONA — WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-19126i3E..ET176198911-198912

sub16100-19225

main16100-19195i3E..ET176198712-198911

main16100-19205i4AFE,5AF#..AT17#198712-199202

main16100-19225i3E..ET176198912-199211

sub16100-19226

main16100-69085i2C..CT17#198712-198912

sub16100-69275

main16100-69275i2C..CT17#198912-199005

sub16100-64H00

sub16100-64H01

main16100-69295i2C..CT17#199005-199211

sub16100-69296

main16100-79075i3SFE,4SFI..ST17#198712-198911

sub16100-79185

main16100-79095i3SGE..ST171198712-198911

sub16100-79096

main16100-79125i3SGE..ST171198911-199012

sub16100-79175

main16100-79175i3SGE..ST171199012-199202

sub16100-79176

main16100-79185i3SFE,4SFE..ST17#198911-199202

sub16100-79186

16100HRING, O(FOR WATER PUMP)

main90301-37005i3SGE..ST171198712-198808

*54

main90301-37005i3S#,4SF#..ST17#198808-199202

main96711-24035i4AFE,5AF#..AT17#198712-199202

sub96761-24035

main96711-24037i3S#,4SFI..ST17#198712-198808

*53

16104SEAL SET, WATER PUMP

main16104-15020i4AFE,5AF..AT17#198712-198810

main16104-15060i4AFE,5AFE..AT17#198712-199203

main16104-16040i3E..ET176199112-199211

main16104-70010i3E..ET176198810-199203

main16104-70010i3SGE..ST171198911-199112

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19065i3E..ET176198712-198905

sub16110-19105

main16110-19075i4AFE,5AF..AT17#198712-199002

sub16110-19076

main16110-19076i4AFE,5AFE..AT17#199002-199202

main16110-19085i4AFE,5AF..AT17#198712-199002

sub16110-19086

main16110-19086i4AFE,5AFE..AT17#199002-199202

main16110-19095i3E..ET176198905-199002

sub16110-19105

main16110-19105i3E..ET176199002-199211

sub16110-19106

16124GASKET, WATER PUMP COVER

main16124-10010i3E..ET176198712-198911

sub16124-10012

main16124-10012i3E..ET176198911-199211

main16124-15010i4AFE,5AF#..AT17#198712-199002

sub16124-16020

main16124-15060i4AFE,5AF#..AT17#198712-199002

sub16124-15061

main16124-15061i4AFE,5AFE..AT17#199002-199202

main16124-16020i4AFE,5AFE..AT17#199002-199202

main16124-74010i3S#,4SFI..ST17#198712-198909

sub16124-74020

main16124-74020i3S#,4SFI..ST17#198809-199211

16131ROTOR, WATER PUMP

main16131-15050i3E..ET176198712-198808

sub16131-15080

main16131-15070i4AFE,5AF#..AT17#198712-199202

main16131-15080i4AFE,5AF#..AT17#198712-199211

main16131-15080i3E..ET176198808-199211

16131ABEARING, WATER PUMP

main90029-36809i3E..ET176199112-199211

main90369-30064i3E..ET176..4F;3E..ET176..3FC..GX198712-199112

sub90029-36838

main90369-35043i4AFE,5AFE..AT17#198712-199203

16171SEAT, WATER PUMP PULLEY

main16171-10012i4AFE,5AFE..AT17#199007-199202

main16171-15050i4AFE,5AF#..AT17#198712-199007

sub16171-10012

main16171-15050i3E..ET176198712-199211

sub16171-10012

main16171-15070i4AFE,5AF#..AT17#198712-199202

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011i4AFE,5AF#..AT17#198712-199202

main16193-15060i4AFE,5AF#..AT17#198712-199106

sub16193-15100

main16193-15100i4AFE,5AFE..AT17#199106-199202

main90029-01500i3SGE..ST171198712-199202

16371PULLEY, FAN

main16173-10011i3E..ET176198712-199211

main16371-15050i4AFE,5AF#..AT17#..EXS,GX,MX,SELS198712-199202

sub16371-15070

main16371-15060i5AF#..AT170..DX,STD198712-199202

9151160835

main91511-60835

9162160612

main91621-60612

9212260816

main92122-60816

14 parts on this diagram · 5 diagrams in section
