Toyota CORONA — VENTILATION HOSE

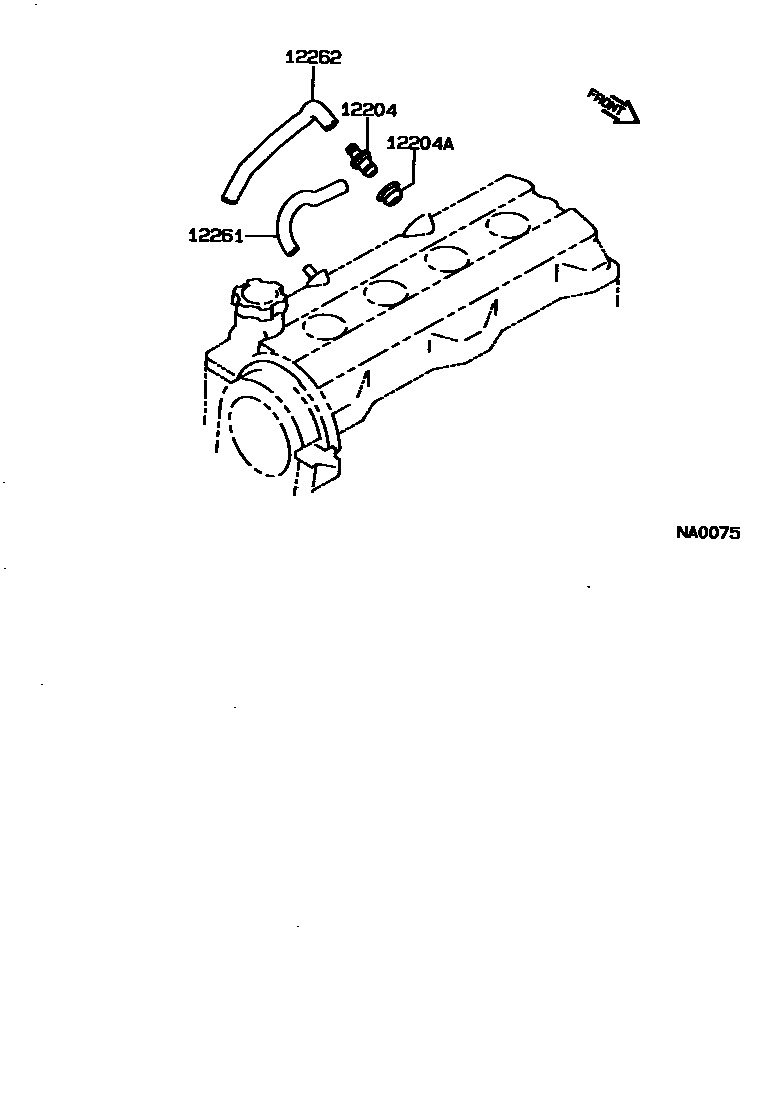

Parts diagram
12204VALVE SUB-ASSY, VENTILATION
main12204-10020i198712-199211
sub12204-10030
main12204-15030i198808-199202
main12204-15040i198712-198911
12204AGROMMET(FOR VENTILATION SYSTEM)
main90480-18001i198712-199202
main90480-18006i198806-199211
12261HOSE, VENTILATION
main12261-11050i198712-199211
main12261-15090i198712-198911
main12261-64030i198712-199111
sub12261-64090
main12261-64090i199111-199211
main12261-74020i198712-199204
main12261-74040i198712-198911
main12261-88361i198712-198911
main12261-88362i198911-199202
main90445-10013i198808-199202
sub90447-11006
12262HOSE, VENTILATION, NO.2
main12262-10020i198712-199211
main12262-15040i198712-198911
main90445-15037i198808-199202
sub90445-15067

4 parts on this diagram · 6 diagrams in section
