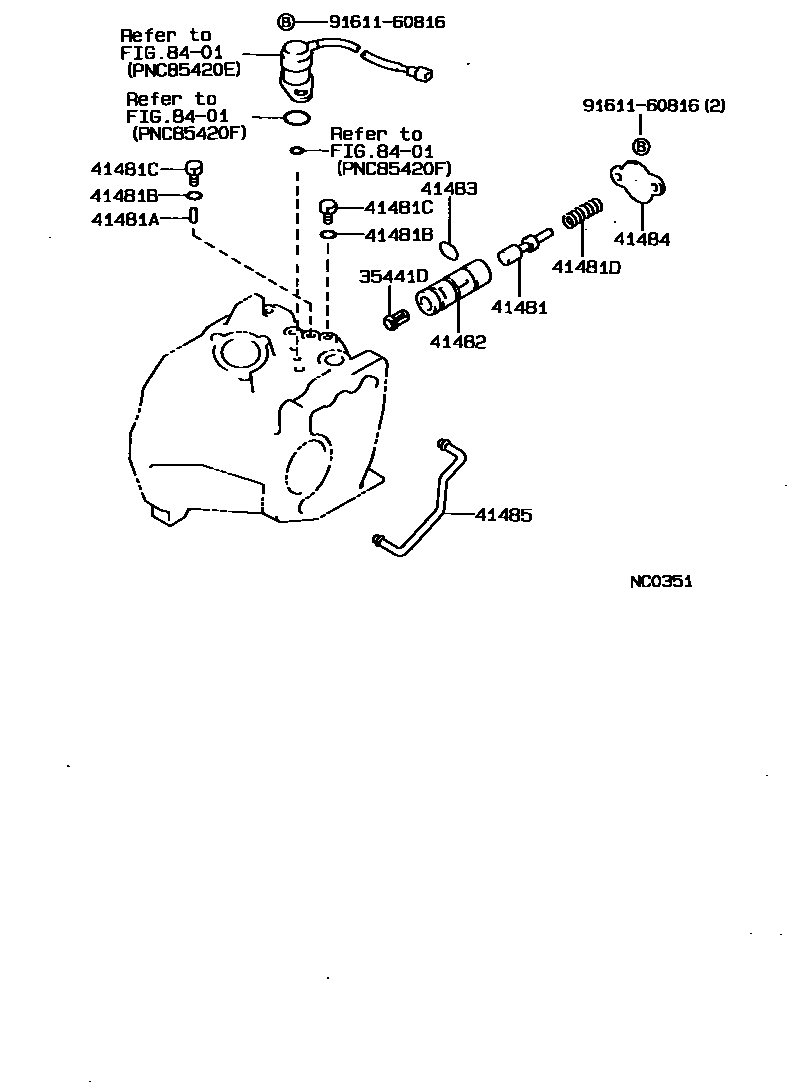

Toyota CORONA — TRANSFER VALVE BODY & VALVE LEVER

35441DSTRAINER, CENTER DIFFERENTIAL LOCK CLUTCH CONTROL OIL

main35441-12010iAT175..4FC198808-199202

41481VALVE, DIFFERENTIAL LOCK CLUTCH CONTROL

main41481-12010iAT175..4FC198808-199202

41481APIN, STRAIGHT (FOR DIFFERENTIAL CONTROL VALVE)

main90250-04065iAT175..4FC198808-199202

41481BRING, O (FOR DIFFERENTIAL LOCK CLUTCH CONTROL VALVE)

main90301-06196iAT175..4FC198808-199202

41481CPLUG (FOR DIFFERENTIAL LOCK CLUTCH CONTROL VALVE)

main90341-08001iAT175..4FC198808-199202

41481DSPRING, COMPRESSION (FOR DIFFENTIAL VALVE)

main90501-08099iAT175..4FC198808-199202

41482SLEEVE, DIFFERENTIAL LOCK CLUTCH CONTROL VALVE

main41482-12010iAT175..4FC198808-199202

41483RETAINER, DIFFERENTIAL LOCK CLUTCH CONTROL VALVE SPRING

main41483-12010iAT175..4FC198808-199202

41484COVER, DIFFERENTIAL LOCK CLUTCH CONTROL VALVE SLEEVE

main41484-12010iAT175..4FC198808-199202

41485TUBE, DIFFERENTIAL LOCK CLUTCH PRESSURE APPLY

main41485-12010iAT175..4FC198808-199202

8401

9161160816

main91611-60816

12 parts on this diagram · 1 diagram in section
