Toyota CORONA — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

0001 1C40,C50 0002 1E55F5 0003 1S50,S51,S53

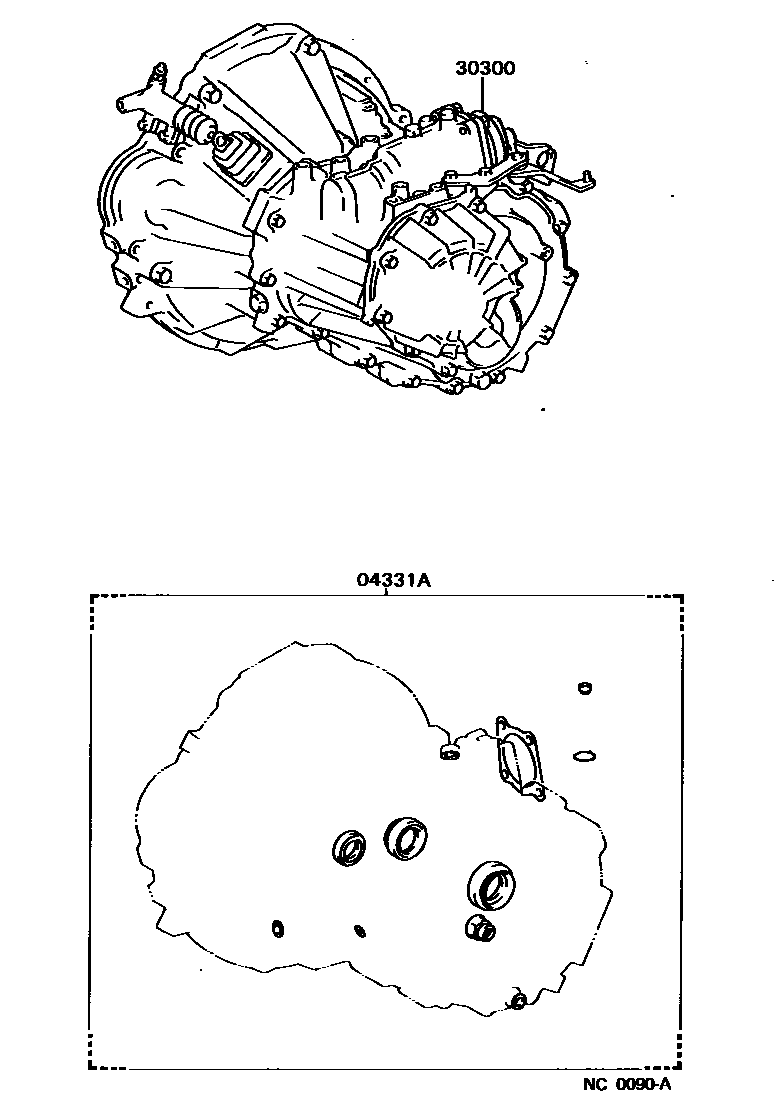

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080iAT170,ET176..MTM198712-199211

main04331-12101iAT175..5F198808-199202

main04331-32010iCT17#,ST17#..5F198712-198804

main04331-32011iCT17#,ST17#..5F198804-199211

30300TRANSAXLE ASSY, MANUAL

main30300-12360iCT17#..5F198712-199005

sub30300-12730

main30300-12380iAT170..4F198712-199202

sub30300-12381

main30300-12400iAT170..5F198712-199202

sub30300-12401

main30300-12520iET176..4F198712-199211

sub30300-12521

main30300-12730iCT17#..5F199005-199201

sub30300-12731

sub11355-64051

sub90119-06670

main30300-12731iCT17#..5F199201-199211

sub30300-1A120

main30300-20550iST170..5F198712-199005

sub30300-20840

main30300-20570iST171..5F..(EXG,G,SXR)198712-199005

sub30300-20890

main30300-20610iST171..5F..(GT,GTR)198712-198911

sub30300-20611

main30300-20670iAT175..5F198808-198907

sub30300-20671

sub90560-10019

sub91511-61016

main30300-20671iAT175..5F198907-199106

main30300-20840iST170..5F199005-199201

sub30300-20841

sub11356-74030

sub90119-06670

main30300-20841iST170..5F199201-199202

main30300-20851iAT175..5F198911-199106

main30300-20860iST171..5F..(GT,GTR)198911-199005

sub30300-2B110

main30300-20890iST171..5F..(EXG,G,SXR)199005-199201

sub30300-20891

sub11356-74030

sub90119-06670

main30300-20891iST171..5F..(EXG,G,SXR)199201-199202

main30300-2B110iST171..5F..(GT,GTR)199005-199201

sub30300-2B111

sub11356-74030

sub90119-06670

main30300-2B111iST171..5F..(GT,GTR)199201-199202

main30300-2B130iAT175..5F199106-199202

main30300-2B140iAT175..5F199106-199202

2 parts on this diagram · 3 diagrams in section
