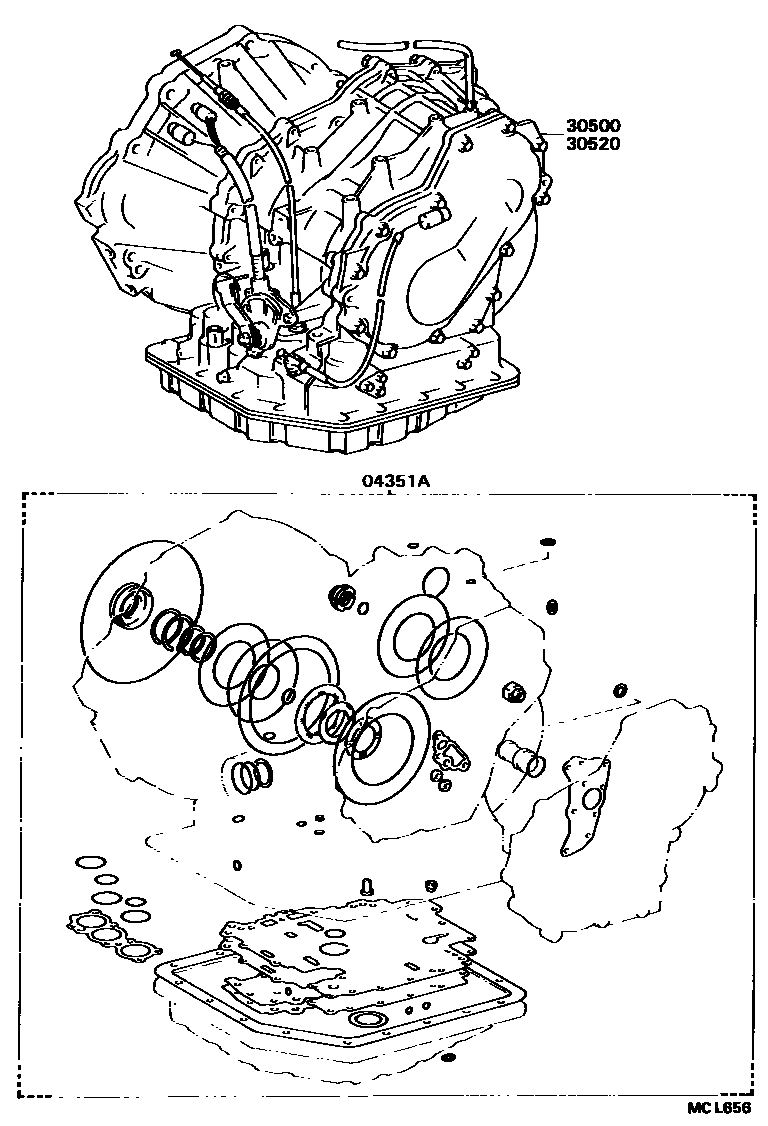

Toyota CORONA — TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A240L,A241L,A241H 0002 1A132L 0003 1A140L,A140E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-10030iET176..3FC198712-199211

main04351-12070iAT175..4FC198808-199202

main04351-20060iAT170..4FC198712-199202

main04351-20070iCT17#..4FC198712-199211

main04351-20080iST170..4FC198712-199202

main04351-20090iST171..4FC198712-199202

30500TRANSAXLE ASSY, AUTOMATIC

main30110-20350iST171..4FC..(GT,GTR)198904-198911

sub30500-20350

main30110-20480iST170..4FC198904-198911

sub30500-20480

sub30500-20590

main30110-20500iST171..4FC..(EXG,G,SXR)198904-198911

sub30500-20500

main30110-20880iST171..4FC..(EXG,G,SXR)198911-199012

sub30500-20880

main30110-20890iST171..4FC..(GT,GTR)198911-199012

sub30500-20890

main30110-2B060iST170..4FC198911-199012

sub30500-2B060

sub30500-2B070

main30500-12290iET176..3FC198712-198911

sub30500-12291

main30500-12590iET176..3FC198911-199203

sub30500-12591

main30500-12591iET176..3FC199203-199211

main30500-20350iST171..4FC..(GT,GTR)198712-198904

main30500-20480iST170..4FC..GX198712-198904

sub30500-20481

sub90105-10203

sub91642-H0822

main30500-20500iST171..4FC..(EXG,G,SXR)198712-198904

main30500-20530iAT170..4FC..(EXS,MX)198712-198911

main30500-20530iAT170..4FC..GX198810-198911

main30500-20540iCT170..4FC..GX198810-198908

sub30500-20541

sub91651-41022

main30500-20540iCT170..4FC..(EXS,MX)198712-198908

sub30500-20541

sub91651-41022

main30500-20541iCT170..4FC..(EXS,MX)198908-198911

main30500-20541iCT170..4FC..GX198908-198911

main30500-20590iST170..4FC..GX198810-198904

sub30500-20591

sub90105-10203

sub91642-H0822

main30500-20590iST170..4FC..(EXS,MX,X,Z)198712-198904

sub30500-20591

sub90105-10203

sub91642-H0822

main30500-20600iCT170..4FC..GX198712-198908

sub30500-20601

sub91651-41022

main30500-20601iCT170..4FC..GX198908-198911

main30500-20660iAT175..4FC..GX198808-198911

main30500-20670iAT175..4FC..GX198811-198911

main30500-20670iAT175..4FC..MX198808-198911

main30500-20690iAT170..4FC..GX198911-199202

main30500-20700iAT170..4FC..GX198712-198911

main30500-20800iAT170..4FC..(EXS,SELS)198911-199202

main30500-20800iAT170..4FC..GX199104-199202

main30500-20811iCT17#..4FC..(DX,GX)198911-199202

sub30500-20813

sub11355-64061

sub90119-06670

main30500-20813iCT176..4FC199202-199211

main30500-20820iCT170..4FC..(EXS,SELS)198911-199202

sub30500-20822

sub11355-64061

sub90119-06670

main30500-20820iCT170..4FC..GX199104-199202

sub30500-20822

sub11355-64061

sub90119-06670

main30500-20880iST171..4FC..(EXG,G,SXR)199012-199202

sub30500-20881

sub90105-10203

sub91642-H0822

main30500-20890iST171..4FC..(GT,GTR)199012-199202

sub30500-20891

sub90105-10203

sub91642-H0822

main30500-2B060iST170..4FC199012-199202

sub30500-2B061

sub90105-10203

sub91642-H0822

30520TRANSAXLE ASSY, AUTOMATIC W/TRANSFER

main30520-20030iAT175..4FC..GX198911-199202

main30520-20040iAT175..4FC..GX199104-199202

main30520-20040iAT175..4FC..(EXS,SELS)198911-199202

3 parts on this diagram · 3 diagrams in section
