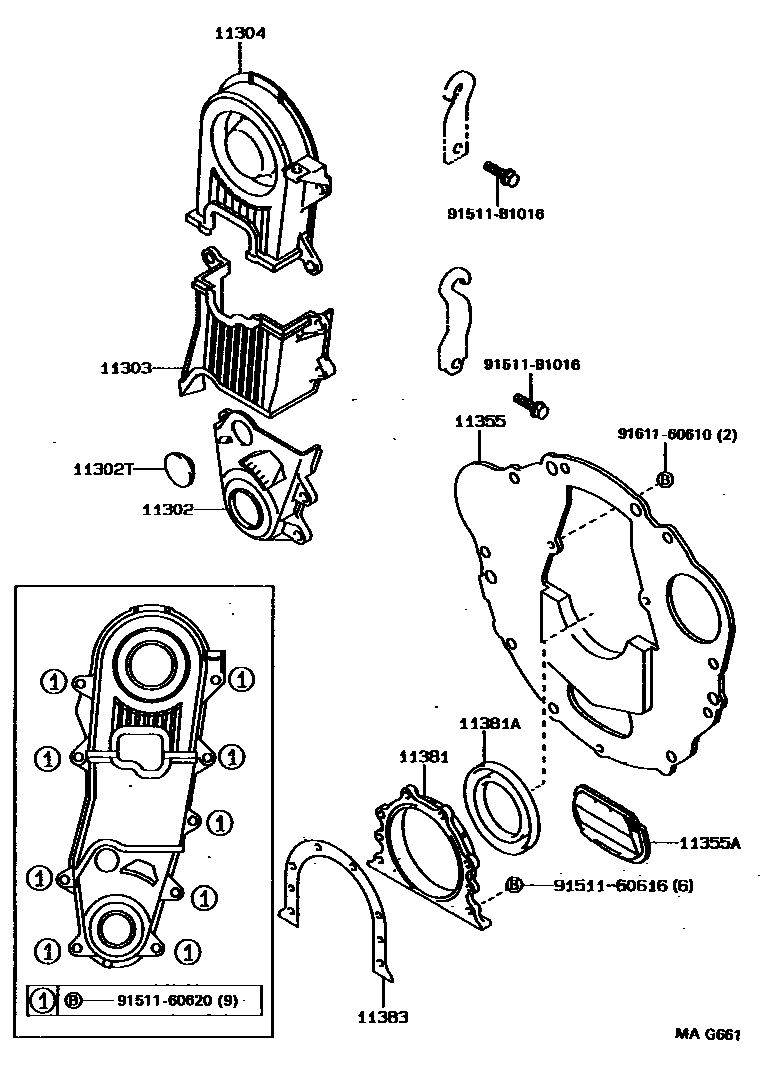

Toyota CORONA — TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-11031i3E..ET176198712-199211

main11302-15041i5AF#..AT170..5F198712-199202

main11302-74010i3SFE,4SFI..ST17#198712-198906

sub11302-74011

main11302-74011i3SFE,4SF#..ST17#198906-199202

main11321-74031i3SGE..ST171198909-199202

main11321-88360i3SGE..ST171198712-198909

sub11321-74030

11302TPLUG, HOLE

main90950-01391i4AFE..AT175198712-199202

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-15040i4AFE..AT175198712-199202

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-74010i3SFE,4SF#..ST17#198712-199202

main11304-15020i5AF#..AT170..4FC198712-199202

main11322-88361i3SGE..ST171198712-199202

11355PLATE, REAR END

main11355-10011i3E..ET176..4F198712-199211

sub11355-10012

main11355-11011i3E..ET176..3FC198712-199211

sub11355-11012

main11355-15070i5AF#..AT170..MTM198712-199202

main11355-15080i5AF#..AT170..4FC198712-199202

main11355-16010i4AFE..AT175198808-199202

main11355-63021i3SGE..ST171198712-198911

main11355-64032i2C..CT17#..5F198712-198904

sub11355-64050

sub11356-64040

main11355-64042i2C..CT170..4FC198712-198904

sub11355-64060

sub11356-64040

main11355-64050i2C..CT17#..5F198904-199110

sub11355-64051

sub90119-06670

main11355-64051i2C..CT17#..5F199110-199211

sub11355-64052

main11355-64060i2C..CT17#..4FC198904-199110

sub11355-64061

sub90119-06670

main11355-64061i2C..CT17#..4FC199110-199211

sub11355-64062

main11355-74010i3S#,4SFE..ST17#198712-199202

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i5AF#..AT170..4FC198712-199202

main90950-01548i3E..ET176..3FC198712-199211

main90950-01738i2C..CT17#..4FC198910-199211

11381RETAINER, ENGINE REAR OIL SEAL

main11381-10020i3E..ET176198712-199211

main11381-15010i4AFE,5AF#..AT17#198712-199202

main11381-63011i3S#,4SFI..ST17#198712-198907

sub11381-63012

main11381-63012i3S#,4SF#..ST17#198907-199202

main11381-64012i2C..CT17#198712-199211

sub11381-64020

11381ASEAL, ENGINE REAR OIL

main90311-70004i4AFE,5AF#..AT17#198712-199106

sub90311-70007

main90311-70007i4AFE,5AFE..AT17#199106-199202

main90311-80007i3E..ET176198712-198911

sub90311-80012

main90311-80007i3E..ET176198911-199108

sub90311-80012

main90311-80012i3E..ET176199010-199211

main90311-85003i3S#,4SFI..ST17#198712-199010

sub90311-85006

main90311-85006i3SFE,4SFE..ST17#199010-199202

sub90311-85009

main90311-89001i3SGE..ST171198907-199202

sub90311-89003

main90311-90003i2C..CT17#198712-199211

ARAI

sub90311-90005

main90311-90005i2C..CT17#198809-199211

sub90311-90008

main90311-90005i2C..CT17#198712-198809

NOK

sub90311-90008

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i4AFE,5AF..AT17#198712-198912

sub11383-15011

main11383-15011i4AFE,5AFE..AT17#198912-199202

sub11383-16010

main11383-63010i3S#,4SFI..ST17#198712-198907

*53

sub11383-63011

main11383-63011i3S#,4SF#..ST17#198907-199111

sub11383-74021

main11383-74020i3S#,4SFE..ST17#199111-199202

sub11383-74021

main11383-88380i3SGE..ST171198712-198907

*54

sub11383-88381

9151160616

main91511-60616

9151160620

main91511-60620

91511B1016

main91511-B1016

9161160610

main91611-60610

13 parts on this diagram · 7 diagrams in section
