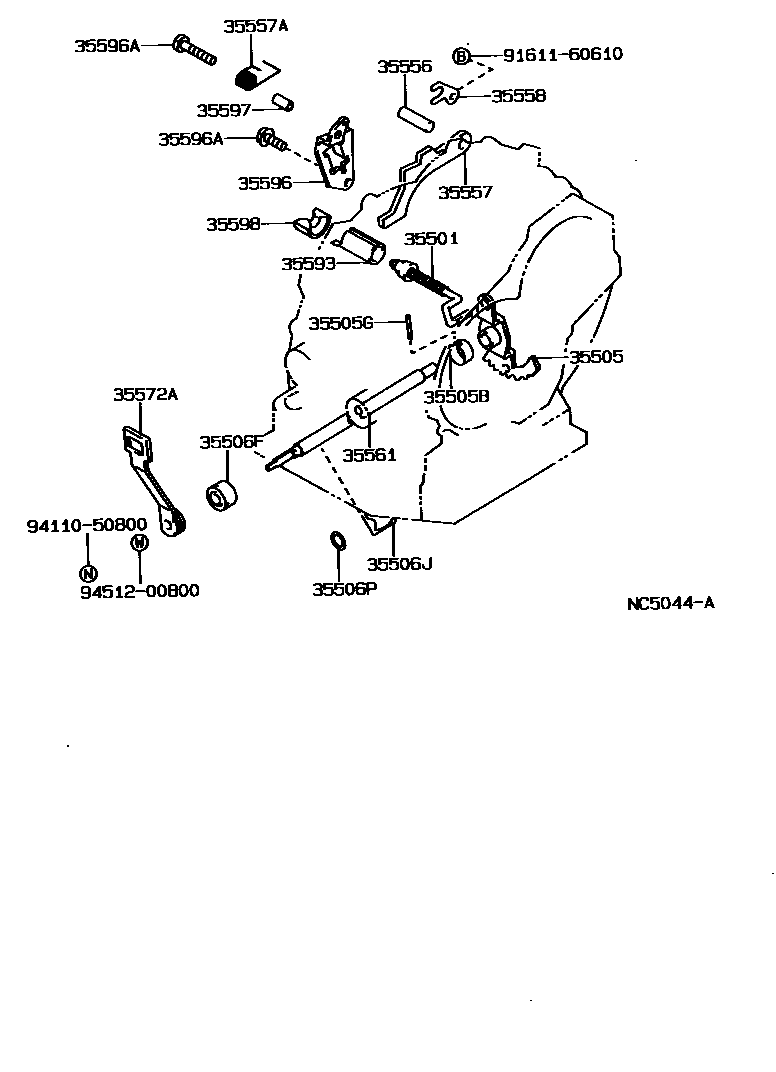

Toyota CORONA — THROTTLE LINK & VALVE LEVER (ATM)

0001 1A240L,A241L,A241H 0002 1A132L,A140L,A140E 0003 1A240L,A241L 0005 1A241H,A240L 0007 1A132L,A140L,A140E 0009 1A140L,A140E

35501ROD SUB-ASSY, PARKING LOCK

main35501-12010iAT17#,CT17#..4FC198712-199211

main35501-32010iET176,ST17#..ATM198712-198808

main35501-32030iET176,ST17#..ATM198808-199211

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-20010iET176,ST17#..ATM198712-198808

sub35505-32040

main35505-20020iAT17#,CT170..4FC198712-198811

sub35505-20040

sub35409-20010

main35505-20040iAT17#,CT17#..4FC198811-199211

main35505-32030iET176,ST17#..ATM198808-199211

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAT17#,CT17#,ET176,ST17#..ATM198712-199211

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iET176,ST17#..ATM198712-199211

main90524-11001iAT17#,CT17#..4FC198712-199211

35506PWASHER, PLATE (FOR MANUAL VALVE LEVER SHAFT)

main90201-12028iAT17#,CT17#..4FC198712-199211

35556SHAFT, PARKING LOCK PAWL

main35556-12020iAT170,CT17#..4FC198712-199211

main35556-12030iAT175..4FC198808-199202

main35556-32010iET176,ST17#..ATM198712-199211

35557PAWL, PARKING LOCK

main35557-12020iAT17#,CT17#..4FC198712-199211

main35557-32020iET176,ST17#..ATM198712-199211

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21003iAT17#,CT17#..4FC198712-199211

main90508-26047iET176,ST17#..ATM198712-199211

35558CLAMP, PAWL SHAFT

main35558-12010iAT170,CT17#..4FC198712-199211

main35558-12020iAT175..4FC198808-199202

35561SHAFT, MANUAL VALVE LEVER

main35561-12020iAT17#,CT17#..4FC198712-199211

main35561-32010iET176,ST17#..ATM198712-199211

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-12070iET176..3FC198712-199211

main35572-12080iAT17#..4FC198712-199202

main35572-20130iCT17#..4FC198712-199211

main35572-32011iST17#..4FC198712-199202

35593SLEEVE, CAM GUIDE

main35593-12010iAT17#,CT17#..4FC198712-199211

35596PLATE, PAWL STOPPER

main35596-12010iAT17#,CT17#..4FC198712-199211

35596ABOLT (FOR PAWL STOPPER PLATE)

main90105-08068iAT17#,CT17#..4FC198712-199211

sub90105-08333

main90105-08070iAT17#,CT17#..4FC198712-199211

35597SLEEVE, SPRING GUIDE

main35597-12010iAT17#,CT17#..4FC198712-199211

35598SLEEVE, PARKING LOCK

main35598-12010iAT17#,CT17#..4FC198712-199211

9161160610

main91611-60610

9411050800

main94110-50800

9451200800

main94512-00800

21 parts on this diagram · 6 diagrams in section
