Toyota CORONA — SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1����� & ��������� 0003 1����� & ��������� 0004 1����� & ��������� 0005 1����� �-� 0006 1����� �-� 0007 1��� 0008 1��������� ���� 0009 1�����-��� ���� 0010 1�-�,���,�-� & ���-��

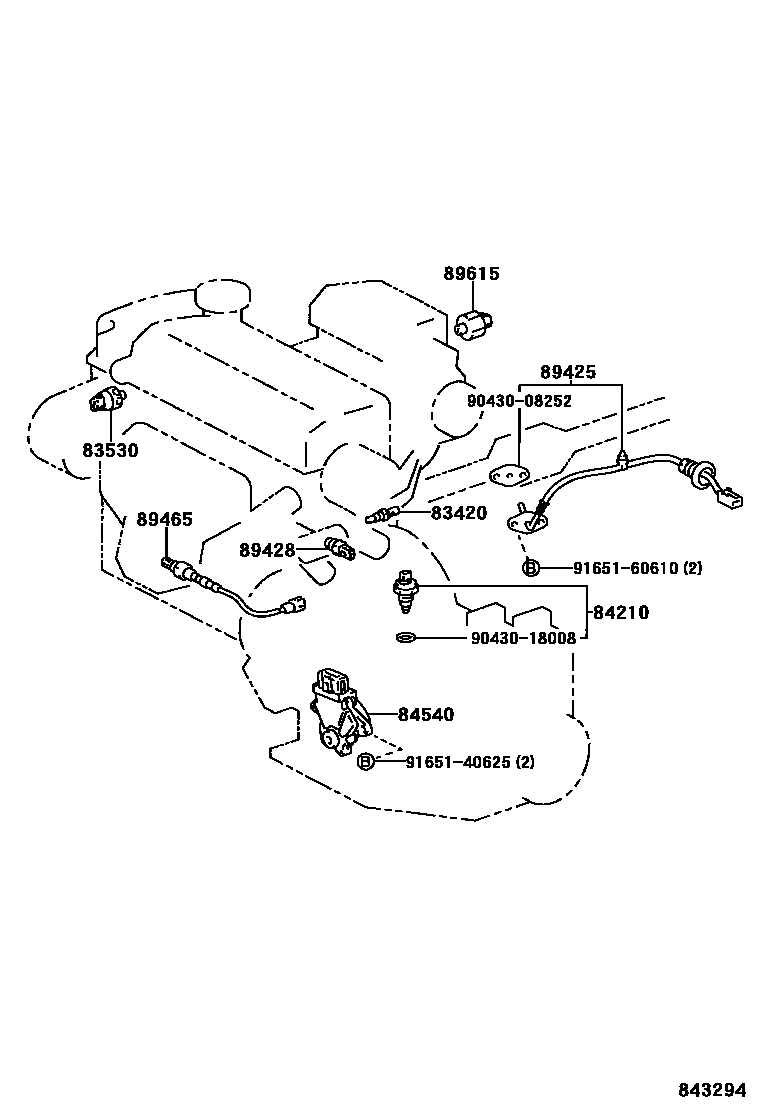

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16040iCT21#199712

main83420-20020iCT21#199601-199712

main83420-20040iST21#199601-199712

main83420-AA010iAT21#,ST21#199712

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iST21#199803

main83530-30090iAT21#,ST21#199601-199803

main83530-30100iCT21#199601-199803

main83530-60010iCT21#199803

main83530-60020iST21#199803

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iAT21#,CT210,211,215,ST215..MTM199601

sub84210-52050

84540SWITCH ASSY, NEUTRAL START

main84540-12200iST210..D4;AT21#..ATM199601

main84540-12210iST210..D4;AT21#..ATM199601

main84540-16050iCT210,ST210..ATM..(EFI,TD)199601-199712

main84540-20200iST215..ATM199601-199712

89425SENSOR, EXHAUST GAS TEMPERATURE

main89425-20210iST215199601-199712

sub89425-20290

main89425-20320iST210..D4199612-199712

main89425-20330iST210..D4199612-199712

main89425-80035iAT21#,ST210..EFI199601-199712

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-10120iAT21#199712

main89428-12160iAT21#199601-199712

main89428-20110iCT211,215;CT210,216..ATM199601

main89428-33010iCT210..MTM199601-199712

89465SENSOR, OXYGEN

main89465-12400iAT21#199601

main89465-20270iST215199601

main89465-20280iST210..EFI199601-199712

main89465-20610iST210..D4199612-199808

main89465-20640iST210199808

89615SENSOR, KNOCK CONTROL

main89615-12030iAT21#199601-199809

main89615-20030iST215199810-199910

main89615-20070iST210199810-199909

main89615-22030iAT21#199601-199909

main89615-22040iAT21#199601-199712

main89615-22050iAT21#199809

main89615-32030iST215199910

main89615-32040iST215199910

main89615-32050iST210199909

main89615-33020iST215199810-199910

main89615-52010iAT21#199909

9043008252

main90430-08252

9043018008

main90430-18008

9165140625

main91651-40625

9165160610

main91651-60610

12 parts on this diagram · 10 diagrams in section
