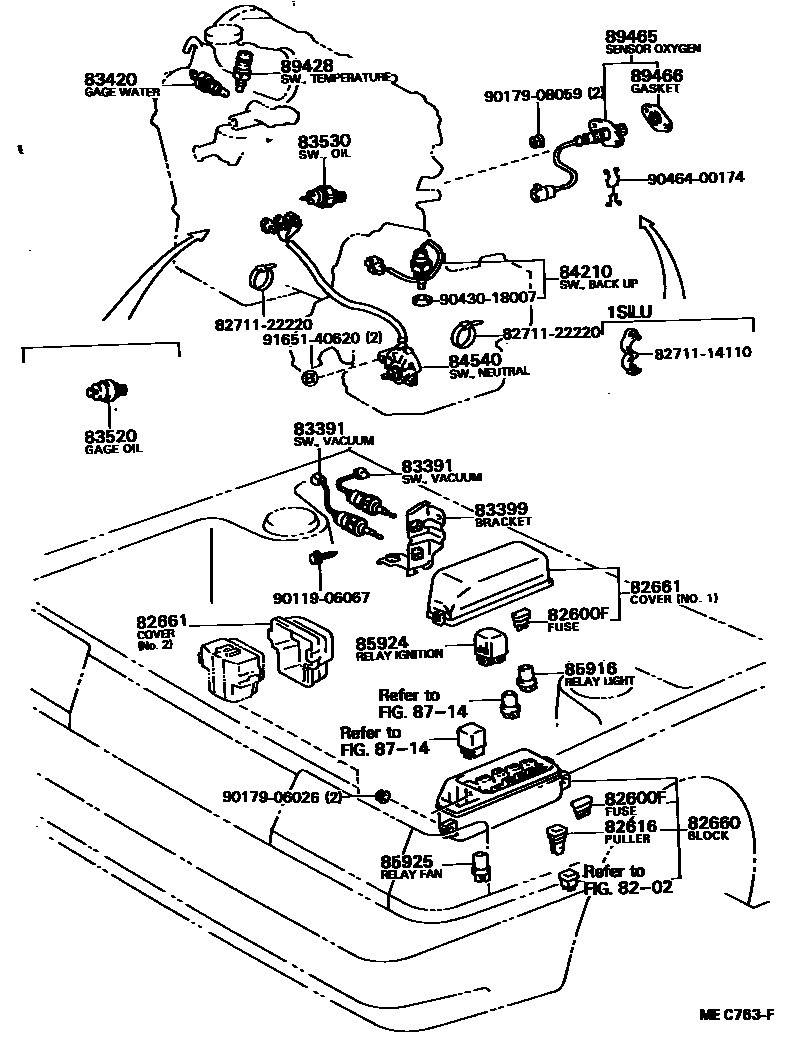

Toyota CORONA — SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

8202

82600FFUSE, FUSE BLOCK

main90982-09002iAT150,CT150,ST150,16#198301-198711

main90982-09003×6iAT150,CT150,ST150,16#198301-198711

main90982-09004×4iAT150,CT150,ST150,16#198301-198711

main90982-09005×5iAT150,CT150,ST150,16#198301-198711

82616PULLER, FUSE

main82616-12010iAT150,CT150,ST150,16#198301-198711

82660BLOCK ASSY, RELAY, ENGINE ROOM

main82660-20180iST16#198508-198711

main82660-32030iAT150,CT150,ST150198301-198412

sub82660-32160

main82660-32040iAT150,CT150,ST150198412-198711

sub82660-32160

82661COVER, RELAY BLOCK, NO.1

main82661-20130iST16#198508-198711

ENGINE ROOM,NO.2

main82661-32010iAT150,CT150,ST150198301-198711

ENGINE ROOM,NO.1

main82661-32030iAT150,CT150,ST150,16#198301-198711

COWL SIDE

main82672-20060iST16#198508-198711

ENGINE ROOM,NO.1

83391SWITCH, VACUUM

main83391-14061iST150198301-198310

MARK=85M

main83391-14070iST150198301-198310

MARK=330B

main83391-16030iAT150198310-198508

MARK=85M

main83391-22070iAT150198508-198711

MARK=85M

83399BRACKET, VACUUM SWITCH

main83399-20100iST150198301-198310

main83399-22011iAT150198310-198711

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16010iST150198301-198308

DENSO

main83420-20020iAT150,CT150,ST150,16#198301-198711

YAZAKI

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14022iAT150,CT150..4D..GX198512-198705

DENSO

main83520-14023iAT150,CT150..EXS198705-198711

DENSO

sub83520-35030

main83520-14042iST150..4D..GX198512-198705

DENSO

main83520-14043iST162198705-198711

DENSO

main83520-20020iST150..4D..GX198504-198508

YAZAKI

main83520-55011iAT150,CT150..EXS198310-198711

YAZAKI

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-10020iST150..DX,GX198301-198310

sub83530-14030

main83530-12040iST150198310-198410

main83530-14020iST150198410-198508

main83530-14040iAT150..DX,GX,STD198503-198511

main83530-30042iCT150..GX198410-198502

main83530-30050iAT150..DX,GX,STD198708-198711

sub83530-30051

main83530-30060iCT150..GX198502-198711

sub83530-60030

main83530-30080iST150,160..EXA,EXS,GX,SXR198608-198711

sub83530-60040

main83530-36011iCT150..GX198310-198410

84210SWITCH ASSY, BACK-UP LAMP

main84210-60010iAT150,CT150,ST150..MTM198301-198711

main84210-60021iST16#..5F198508-198711

84540SWITCH ASSY, NEUTRAL START

main84540-12160iST160..4FC198508-198711

main84540-32010iAT150,CT150,ST150..ATM198301-198711

TOKAIRIKA

main84540-32020iAT150,CT150,ST150..ATM198301-198711

MATSUSHITA

main84540-32050iST162..4FC198508-198711

85916RELAY, LIGHT CONTROL

main90987-01003iAT150,CT150,ST150,16#198508-198711

HEAD

main90987-02006iST16#198508-198711

HEAD

85924RELAY, IGNITION CONTROL

main85913-30020iAT150,CT150,ST150198301-198508

main90987-04002iAT150,CT150,ST150,16#198508-198711

85925RELAY, RADIATOR FAN

main90987-03001iAT150,CT150,ST150,16#198301-198711

8714

89428SWITCH, TEMPERATURE DETECT, NO.2

main89428-15011iAT150198508-198711

main89428-15030iCT150198310-198711

main89428-32010iST150,16#198508-198711

89465SENSOR, OXYGEN

main89465-12070iAT150198508-198711

main89465-19075iST162198508-198509

sub89465-19076

main89465-19085iAT150198310-198508

main89465-20051iST150..CI198310-198711

main89465-29125iST150,160..EFI198310-198711

main89465-29175iST162198509-198711

sub89465-29176

main89465-39085iST150198301-198310

89466GASKET, OXYGEN SENSOR

main89466-32010iAT150,ST150,16#..CBR,EFI,TWC198301-198711

sub89466-30030

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

8271122220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22220

9011906067

main90119-06067

9017906026

main90179-06026

9017908059

main90179-08059

9043018007

main90430-18007

9046400174

main90464-00174

9165140620

main91651-40620

27 parts on this diagram · 8 diagrams in section
