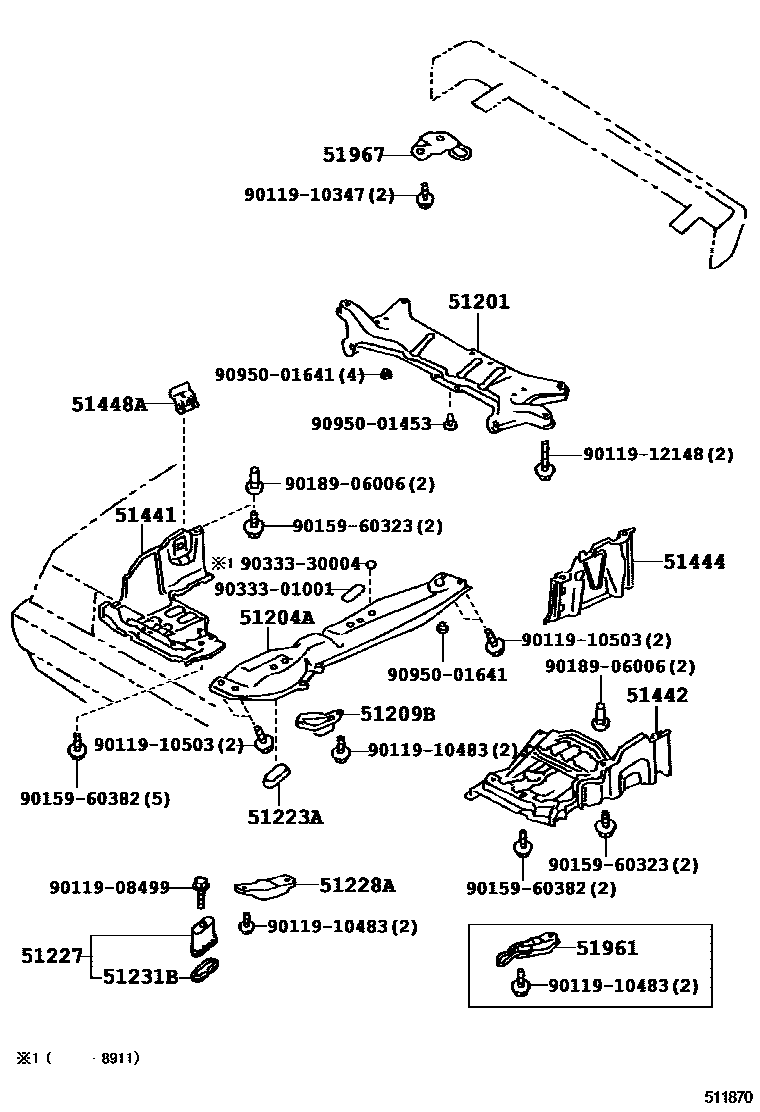

Toyota CORONA — SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20210iAT170,CT17#,ET176,ST17#198712-199211

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20070iAT170,CT17#,ET176,ST17#198712-199211

main51204-20090iAT175198808-199202

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-20010iCT17#;AT170,ET176,ST17#..ATM..(EXG,EXS,GX,MX)198712-199211

51223ACOVER, ENGINE MOUNTING HOLE

main51223-20020iAT170,CT17#,ET176,ST17#198712-199211

sub51223-20030

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-20040iST170..4FC198805-199202

51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH

main51228-20030iST170..4FC198805-199202

sub51228-20050

51231BSEAL, FRONT SUSPENSION MEMBER WEIGHT

main51231-20010iST170..4FC198805-199008

51441COVER, ENGINE UNDER, NO.1

main51441-20150iAT170,CT17#,ET176,ST17#198712-199211

main51441-20180iAT175198808-199202

51442COVER, ENGINE UNDER, NO.2

main51442-20090iAT170,CT17#,ET176,ST17#..MTM198712-199211

main51442-20110iAT170,CT17#,ET176..ATM198712-199211

main51442-20120iST17#..4FC198712-199202

main51442-20170iAT175..5F198808-199202

main51442-20180iAT175..4FC198808-199202

51444COVER, ENGINE UNDER, REAR LH

main51444-20050iST17#..4FC198712-199202

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-20030iAT17#,CT17#,ET176,ST17#198712-199211

51961HOOK, NO.1

main51960-20010iST17#..G,GT,GTR,SXR,X,Z198712-199202

51967HOOK, TRANSPORT, REAR

main51095-20110iAT175198808-199202

main51968-20030iAT170,CT170,ST17#198712-199202

9011908499

main90119-08499

9011910347

main90119-10347

9011910483

main90119-10483

9011910503

main90119-10503

9011912148

main90119-12148

9015960323

main90159-60323

9015960382

main90159-60382

9018906006

main90189-06006

9033301001

main90333-01001

9033330004

main90333-30004

9095001453

main90950-01453

9095001641

main90950-01641

25 parts on this diagram · 4 diagrams in section
