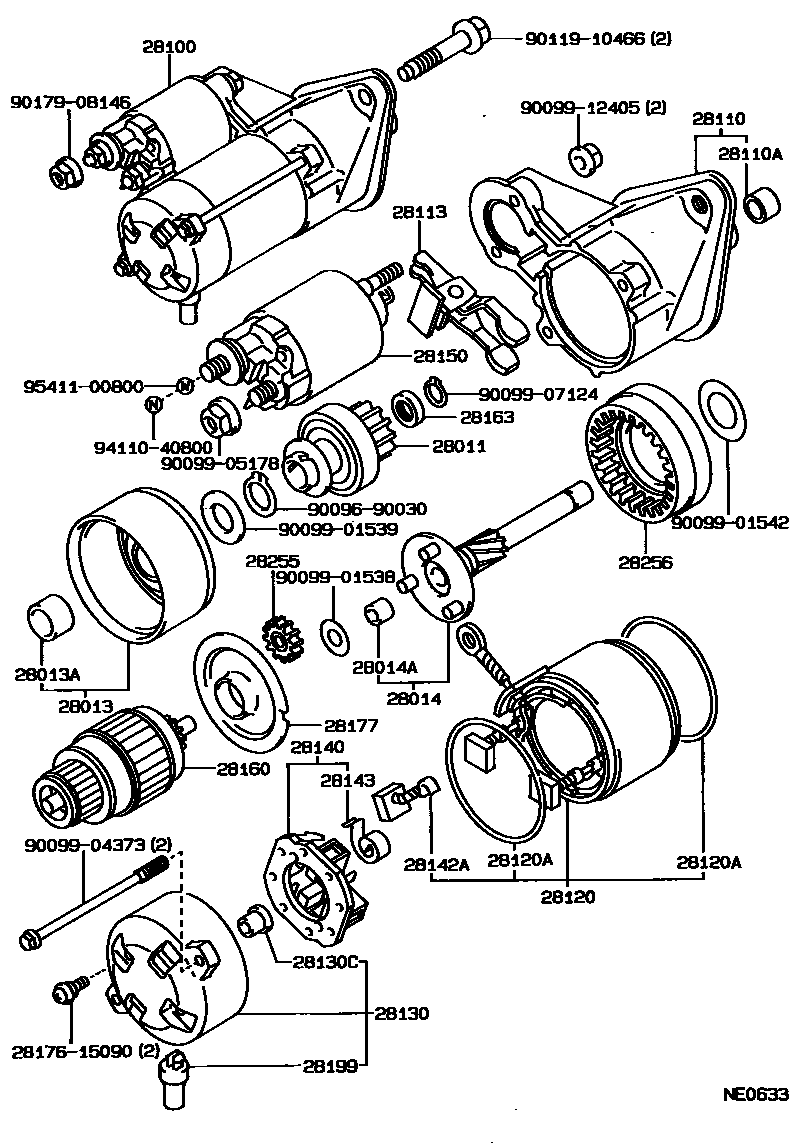

Toyota CORONA — STARTER

0001 112V 0.8KW 0002 112V 1.0KW 0003 112V 1.0KW 0004 112V 0.8KW 0005 112V 1.0KW 0006 112V 1.4KW 0007 112V 2.2KW 0008 112V 1.0KW 0009 112V 1.0KW 0010 112V 1.4KW

28011CLUTCH SUB-ASSY, STARTER

main28011-10030i3E..ET176198712-199211

main28011-26042i3SGE..ST171198712-198911

main28011-26042i4AFE,5AF,3E..AT17#,ET176198712-199211

main28011-64010i2C..CT17#198712-199211

sub28011-67030

main28011-70020i4AFE,5AF#..AT17#198712-199202

main28011-74010i3SFE,4SFI..ST17#198712-198805

sub28011-74011

main28011-74011i3S#,4SFE..ST17#198805-199202

sub28011-74060

28013BEARING, STARTER CENTER & SHOCK ABSORBER, NO.1

main28013-70020i4AFE,5AF#..AT17#198712-199202

sub28013-70030

28013ABEARING, STARTER CENTER & SHOCK ABSORBER, NO.2

main90099-10181i4AFE,5AF#..AT17#198712-199202

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-70020i4AFE,5AF#..AT17#198712-199202

28014ABUSH OR BEARING, PLANET CARRIER SHAFT

main90099-10180i4AFE,5AF#..AT17#198712-199202

28100STARTER ASSY

main28100-10030i3E..ET176198712-199211

sub28100-11010

main28100-10040i3E..ET176198712-199211

main28100-16070i4AFE,5AF#..AT17#198712-199106

sub28100-16071

main28100-16071i4AFE,5AFE..AT17#199106-199202

main28100-16080i4AFE..AT175198808-199202

sub28100-16090

main28100-16110i5AF#..AT170198712-199211

sub28100-16130

main28100-63050i3SGE..ST171198712-198911

sub28100-74040

main28100-64040i2C..CT17#198712-199211

main28100-64070i2C..CT17#198712-199211

sub28100-64040

main28100-74010i3SFE,4SFI..ST17#198712-198805

sub28100-74011

main28100-74011i3SFE,4SF#..ST17#198805-199202

main28100-74021i3SGE..ST171198911-199202

sub28100-74090

28110HOUSING ASSY, STARTER DRIVE

main28110-10030i3E..ET176198712-199211

main28110-10040i3E..ET176198712-199211

main28110-16020i5AF..AT170198712-198911

main28110-16070i4AFE,5AF#..AT17#198712-199106

sub28110-16071

main28110-16071i4AFE,5AFE..AT17#199106-199202

main28110-16080i4AFE..AT175198808-199202

main28110-63050i3SGE..ST171198712-198911

main28110-64070i2C..CT17#198712-199211

main28110-74010i3SFE,4SF#..ST17#198712-199202

main28110-74020i3SGE..ST171198911-199202

main28115-64040i2C..CT17#198712-199211

28110ABEARING(FOR STARTER HOUSING)

main90099-10182i4AFE,5AF#..AT17#198712-199202

28113LEVER, STARTER PINION DRIVE

main28113-15011i3E..ET176198712-199211

main28113-16070i4AFE,5AF#..AT17#198712-199202

28120YOKE ASSY, STARTER

main28120-15010i3E..ET176198712-199211

main28120-15090i2C..CT17#198712-199211

main28120-26071i3SFE,4SFE..ST17#198712-199202

main28120-26071i4AFE,5AF,3E..AT17#,ET176198712-199211

main28120-64040i2C..CT17#198712-199211

main28120-70020i4AFE,5AF#..AT17#198712-199202

28120ARING, O(FOR STARTER YOKE)

main90099-14092i4AFE,5AF#..AT17#198712-199202

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i3SGE..ST171198712-198911

main28130-15090i2C..CT17#198712-199101

main28130-16070i4AFE,5AF#..AT17#198712-199202

main28130-16080i4AFE..AT175198808-199202

main28130-34060i3E..ET176198712-199211

main28130-37010i3E..ET176198712-199211

main28130-64070i2C..CT17#199101-199211

main28130-72010i5AF..AT170198712-198911

main28130-74010i3SFE,4SF#..ST17#198712-199202

main28130-74020i3SGE..ST171198911-199202

28130CBEARING, STARTER FLANGE

main90099-10134i3E..ET176198712-199211

main90099-10183i4AFE,5AF#..AT17#198712-199202

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i3E..ET176198712-199211

main28140-15090i2C..CT17#198712-199211

main28140-26070i3SGE..ST171198712-198911

main28140-26070i4AFE,5AF,3E..AT17#,ET176198712-199211

main28140-64040i2C..CT17#198712-199211

main28140-70020i4AFE,5AF#..AT17#198712-199202

main28140-74010i3SFE,4SF#..ST17#198712-199202

main28140-74020i3SGE..ST171198911-199202

28142ASTARTER KIT

main28142-70020i4AFE,5AF#..AT17#198712-199202

28143SPRING, STARTER BRUSH

main28143-70020i4AFE,5AF#..AT17#198712-199202

main90099-17112i2C,3S#,4SF#..CT17#,ST17#198712-199211

main90099-17115i2C..CT17#198712-199211

28150SWITCH ASSY, MAGNET STARTER

main28150-10020i4AFE,5AF#..AT17#198712-199010

sub28150-10021

main28150-10021i4AFE,5AFE..AT17#199010-199202

main28150-16080i4AFE..AT175198808-199202

main28150-16110i5AF..AT170198712-198911

main28150-34080i3E..ET176198712-199211

main28150-37010i3E..ET176198712-199211

sub28150-37011

main28150-63050i3SGE..ST171198712-198911

main28150-64040i2C..CT17#198712-199211

main28150-64070i2C..CT17#198712-199010

main28150-64100i2C..CT17#199010-199101

sub28150-64101

main28150-64101i2C..CT17#199101-199211

main28150-74010i3SFE,4SF#..ST17#198712-199202

main28150-74020i3SGE..ST171198911-199202

28160ARMATURE ASSY, STARTER

main28160-15010i3E..ET176198712-199211

main28160-15090i2C..CT17#198712-198908

sub28160-15091

main28160-15091i2C,3SGE..CT17#,ST171198908-199211

main28160-26070i4AFE,5AF,3E..AT17#,ET176198712-198908

sub28160-26071

main28160-26071i3SFE,4SFE..ST17#198908-199202

main28160-26071i4AFE,5AF,3E..AT17#,ET176198908-199211

main28160-64040i2C..CT17#198712-199211

sub28160-64041

main28160-70020i4AFE,5AF..AT17#198712-198812

sub28160-70021

main28160-70021i4AFE,5AF#..AT17#198812-199202

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i3E..ET176198712-199211

main28163-70020i4AFE,5AF#..AT17#198712-199202

28177PLATE(FOR STARTER ARMATURE)

main28177-70020i4AFE,5AF#..AT17#198712-199202

28199COVER, STARTER

main28199-15090i2C,3SGE..CT17#,ST171198712-199202

main28199-46080i4AFE,5AFE..AT17#199010-199202

main28199-63050i3SGE..ST171198712-198911

main28199-70020i4AFE,5AF#..AT17#198712-199010

sub28199-46080

main28199-74100i2C..CT17#199101-199211

sub28199-74110

main28199-77090i3E..ET176198712-199211

28255GEAR, PLANET

main28255-70020i4AFE,5AF#..AT17#198712-199202

28256GEAR, STARTER INTERNAL

main28256-70020i4AFE,5AF#..AT17#198712-199202

2817615090SCREW, STARTER

main28176-15090

9009690030

main90096-90030

9009901538

main90099-01538

9009901539

main90099-01539

9009901542

main90099-01542

9009904373

main90099-04373

9009905178

main90099-05178

9009907124

main90099-07124

9009912405

main90099-12405

9011910466

main90119-10466

9017908146

main90179-08146

9411040800

main94110-40800

9541100800

main95411-00800
