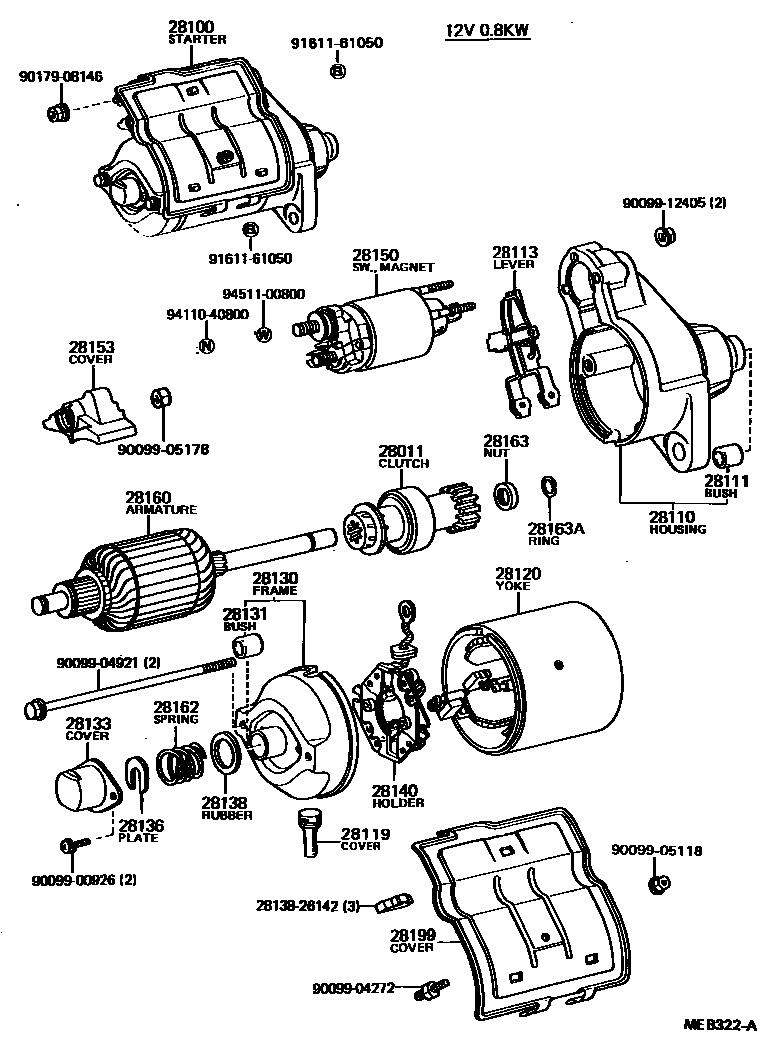

Toyota CORONA — STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i198201-198409

12V 0.8KW

main28011-26042i198201-199804

12V 1.0KW,1.4KW

main28011-64010i198201-199111

12V 1.4KW

main28011-64020i198201-199111

12V 2.0KW

main28011-64030i198201-198310

12V 2.5KW

28100STARTER ASSY

main28100-13010i198310-198712

main28100-15031i198201-198712

main28100-15040i198201-198712

main28100-15060i198201-198712

main28100-15070i198201-198712

main28100-15110i198310-198508

main28100-15130i198310-198508

main28100-27020i198201-198304

main28100-27030i198201-198310

main28100-27060i198210-198508

main28100-27070i198304-198409

main28100-34060i198201-198210

main28100-37010i198201-198210

main28100-63020i198201-198712

main28100-64010i198201-198309

main28100-64020i198201-199111

main28100-64030i198201-198310

main28100-64100i198309-199111

main28100-72010i198209-199804

main28100-72020i198209-199804

28110HOUSING ASSY, STARTER DRIVE

main28110-13010i198310-198712

12V 1.0KW

main28110-15031i198201-198712

12V 0.8KW

main28110-15040i198201-198712

12V 1.0KW

main28110-15060i198201-198712

12V 0.8KW

main28110-15070i198201-198712

12V 1.0KW

main28110-15110i198310-198508

12V 0.8KW

main28110-15130i198310-198508

12V 1.0KW

main28110-27020i198201-198409

12V 0.8KW

main28110-27030i198201-198508

12V 1.0KW

main28110-34060i198201-198210

12V 1.0KW

main28110-37010i198201-198210

12V 0.8KW

main28110-63020i198201-198712

12V 1.0KW

main28110-64070i198309-199111

12V 1.4KW

main28110-72010i198209-199804

12V 1.0KW

main28110-72020i198209-199804

12V 1.4KW

main28115-64010i198201-198309

12V 1.4KW

main28115-64020i198201-199111

12V 2.0KW

main28115-64030i198201-198310

12V 2.5KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i198201-198409

12V 0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i198201-198409

12V 0.8KW

28119COVER, STARTER END FRAME

main28119-54070i198510-199111

12V 2.0KW

main28199-72020i198309-199101

12V 1.4KW

main28199-74100i199101-199111

12V 1.4KW

main28199-77090i198201-198409

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-15010i198201-198712

12V 0.8KW

main28120-15090i198309-199111

12V 1.4KW

main28120-26071i198201-199804

12V 1.0KW

main28120-26140i198409-198508

12V 0.8KW

main28120-34030i198201-198309

12V 1.4KW

main28120-56081i198201-198310

12V 2.5KW

main28120-64020i198201-199111

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-13010i198310-198712

12V 1.0KW

main28130-13020i198310-198508

12V 0.8KW

main28130-15010i198201-198712

12V 0.8KW

main28130-15040i198201-198712

12V 1.0KW

main28130-26070i198201-198508

12V 1.0KW

main28130-34060i198201-198210

12V 1.0KW

main28130-37010i198201-198409

12V 0.8KW

main28130-63020i198201-198712

12V 1.0KW

main28130-64030i198201-198310

12V 2.5KW

main28130-64100i198309-199101

12V 1.4KW

main28130-64110i199101-199111

12V 1.4KW

main28130-72010i198209-199804

12V 1.0KW

main28130-72020i198209-199804

12V 1.4KW

28131BUSH, COMMUTATOR END FRAME

main90099-10134i198201-198409

12V 0.8KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i198201-198409

12V 0.8KW

28136PLATE, STARTER LOCK

main28136-15010i198201-198409

12V 0.8KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i198409-198712

12V 0.8KW

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i198201-198409

12V 0.8KW

main28140-15090i198309-199111

12V 1.4KW

main28140-26070i198201-199804

12V 1.0KW

main28140-34030i198201-198309

12V 1.4KW

main28140-54070i198201-199111

12V 2.0KW

main28140-77090i198201-198310

12V 2.5KW

28150SWITCH ASSY, MAGNET STARTER

main28150-13011i198310-198712

12V 1.0KW

main28150-15012i198301-198304

12V 0.8KW

main28150-15070i198201-198712

12V 1.0KW

main28150-27031i198201-198310

12V 1.0KW

main28150-27051i198210-198508

12V 1.0KW

main28150-27070i198304-198409

12V 0.8KW

main28150-34080i198201-199712

12V 1.0KW

main28150-37010i198301-198712

12V 0.8KW

main28150-63020i198201-198204

12V 1.0KW

main28150-63021i198204-198712

12V 1.0KW

main28150-64010i198201-198309

12V 1.4KW

main28150-64020i198201-199104

12V 2.0KW

main28150-64021i199104-199111

12V 2.0KW

main28150-64030i198201-198310

12V 2.5KW

main28150-64070i198309-199010

12V 1.4KW

main28150-64100i199010-199101

12V 1.4KW

main28150-64101i199101-199111

12V 1.4KW

main28150-72010i199712-199804

12V 1.0KW

main28150-72020i198209-199712

12V 1.4KW

main28150-72021i199712-199804

12V 1.4KW

28153COVER, MAGNET SWITCH

main28159-13030i198403-198409

12V 0.8KW

main28159-15010i198201-198403

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-15010i198409-198712

12V 0.8KW

main28160-15090i198309-199111

12V 1.4KW

main28160-26050i198201-198309

12V 1.4KW

main28160-26070i198201-199804

12V 1.0KW

main28160-47040i198201-198310

12V 2.5KW

main28160-54070i198201-199111

12V 2.0KW

28162SPRING, STARTER BRAKE

main28162-15010i198409-198712

12V 0.8KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i198201-198409

12V 0.8KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i198201-198409

12V 0.8KW

28199COVER, STARTER

main28199-13011i198310-198712

12V 1.0KW

main28199-15110i198310-198508

12V 0.8KW

main28199-15130i198310-198508

12V 1.0KW

main28199-26131i198201-198304

12V 0.8KW

main28199-27031i198201-198310

12V 1.0KW

main28199-27060i198210-198508

12V 1.0KW

main28199-46080i198201-199111

12V 2.0KW

main28199-77090i198201-198310

12V 2.5KW

2813826142RUBBER(FOR STARTER BEARING COVER)

main28138-26142

9009900926

main90099-00926

9009904272

main90099-04272

9009904921

main90099-04921

9009905118

main90099-05118

9009905178

main90099-05178

9009912405

main90099-12405

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

31 parts on this diagram · 14 diagrams in section

STARTER for Toyota CORONA

This section contains 87 genuine Toyota parts for the STARTER system of the Toyota CORONA. Key components include: CLUTCH SUB-ASSY, STARTER, STARTER ASSY, HOUSING ASSY, STARTER DRIVE, BUSH(FOR STARTER HOUSING), LEVER, STARTER PINION DRIVE.
