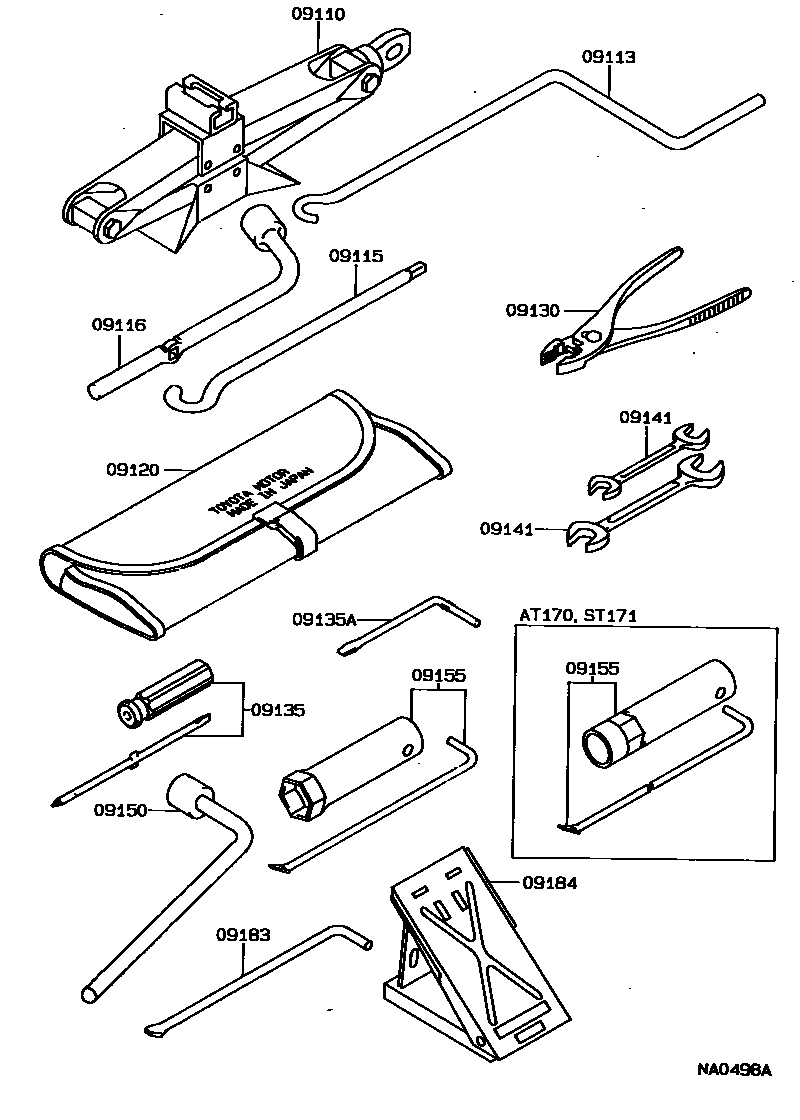

Toyota CORONA — STANDARD TOOL

09110JACK ASSY

main09111-12100iAT17#,CT170,ST17#198712-199202

sub09111-20060

main09111-20090iCT176,ET176198712-199211

09113HANDLE, JACK

main09113-20030iAT17#,CT170,ST17#198712-199202

sub09113-20050

09115ROD SUB-ASSY, JACK HANDLE

main09115-13010iCT176,ET176198712-199211

09116LEVER, JACK HANDLE

main09116-16010iCT176,ET176198712-199211

09120BAG, TOOL

main09120-10030iAT17#,CT170,ST17#198712-199202

main09120-12011iCT176,ET176198712-199211

09130PLIERS

main99913-11500iAT17#,CT17#,ET176,ST17#198712-199211

09135DRIVER, SCREW

main99915-10700iAT17#,CT17#,ET176,ST17#198712-199211

09135ABIT, SCREW DRIVER

main09135-00012iCT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,GT,GTR,MX,SXR198712-199202

09141SPANNER

main99914-10810iAT17#,CT17#,ET176,ST17#198712-199211

main99914-11214iAT17#,CT17#,ET176,ST17#198712-199211

09150WRENCH, HUB NUT BOX

main09150-26010iAT17#,CT170,ST17#198712-199202

09155WRENCH, SPARK PLUG

main09155-32010iST171..GT,GTR198712-198911

sub09155-74020

main09155-41020iET176198712-198911

09183WRENCH, WHEEL CAP

main09183-00010iAT17#,CT17#,ET176,ST17#198712-199211

09184STOPPER, WHEEL

main09184-00010iAT17#,CT17#,ET176,ST17#198712-199211

13 parts on this diagram · 1 diagram in section
