Toyota CORONA — SPEAKER

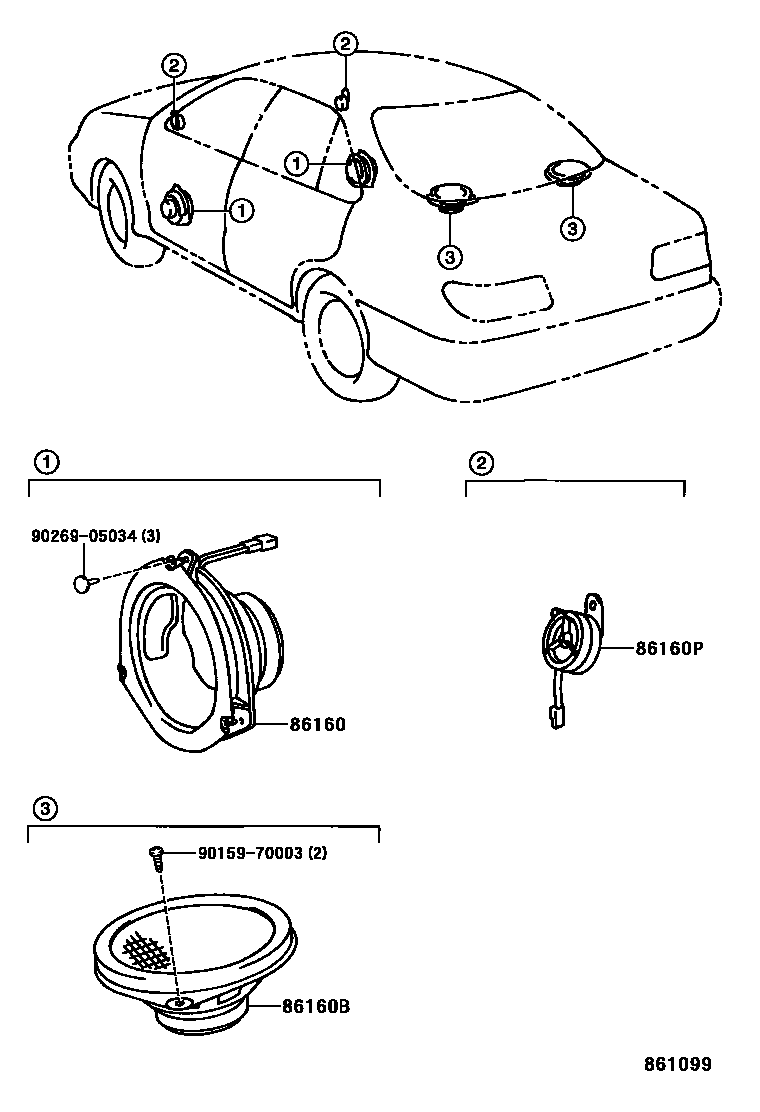

Parts diagram

86160SPEAKER ASSY, FRONT NO.1

main86160-20890×2i199601-199712

main86160-20891×2i199712

main86160-2B010×2i199601-199712

main86160-2B011×2i199712

86160BSPEAKER ASSY, REAR

main86160-2B360×2i199601

main86160-2B410×2i199601

86160PSPEAKER ASSY, FRONT NO.2

main86160-2B020i199601

main86160-2B090i199601

9015970003

main90159-70003

9026905034

main90269-05034

5 parts on this diagram · 1 diagram in section

SPEAKER for Toyota CORONA

This section contains 5 genuine Toyota parts for the SPEAKER system of the Toyota CORONA. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2.
