Toyota CORONA — SPEAKER

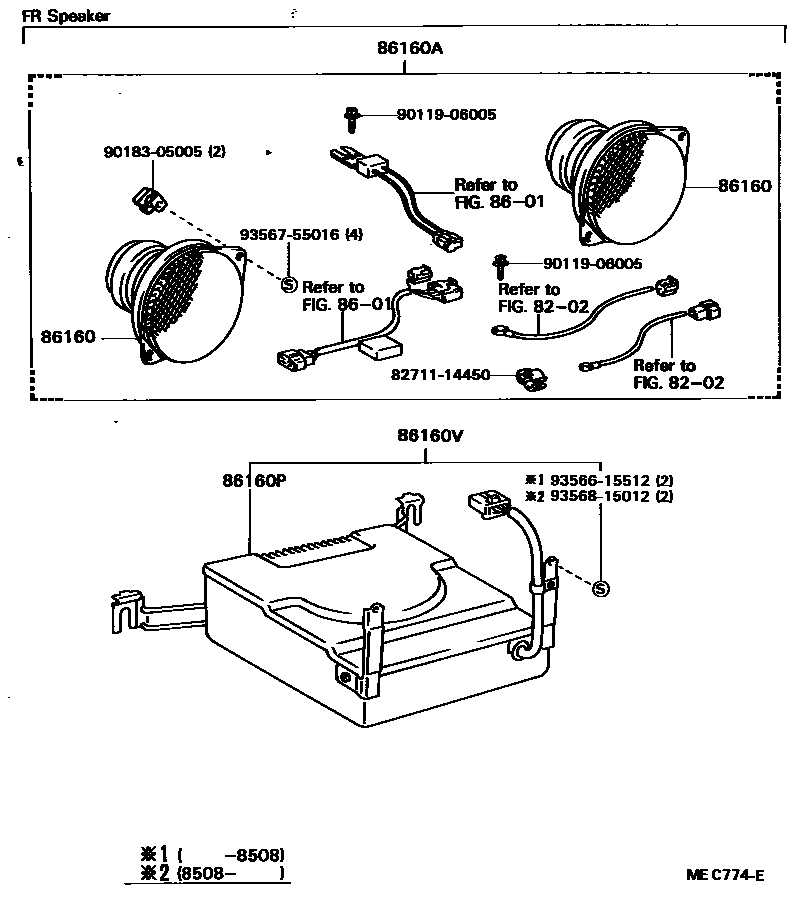

Parts diagram

8202WIRING & CLAMP

→ Go to FIG 82-02

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86160SPEAKER ASSY, FRONT NO.1

main86160-20230×2i198301-198711

86160ASPEAKER SET, FRONT

main86160-29715i198310-198711

86160PSPEAKER ASSY, FRONT NO.2

main86150-20030i198301-198310

main86150-20110i198508-198711

86160VSPEAKER SET, FRONT NO.2

main86150-29065i198301-198310

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

9011906005

main90119-06005

9018305005

main90183-05005

9356615512

main93566-15512

9356755016

main93567-55016

9356815012

main93568-15012

12 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota CORONA

This section contains 17 genuine Toyota parts for the SPEAKER system of the Toyota CORONA. Key components include: WIRING & CLAMP, RADIO RECEIVER & AMPLIFIER & CONDENSER, SPEAKER ASSY, FRONT NO.1, SPEAKER SET, FRONT, SPEAKER ASSY, REAR.
