Toyota CORONA — SPEAKER

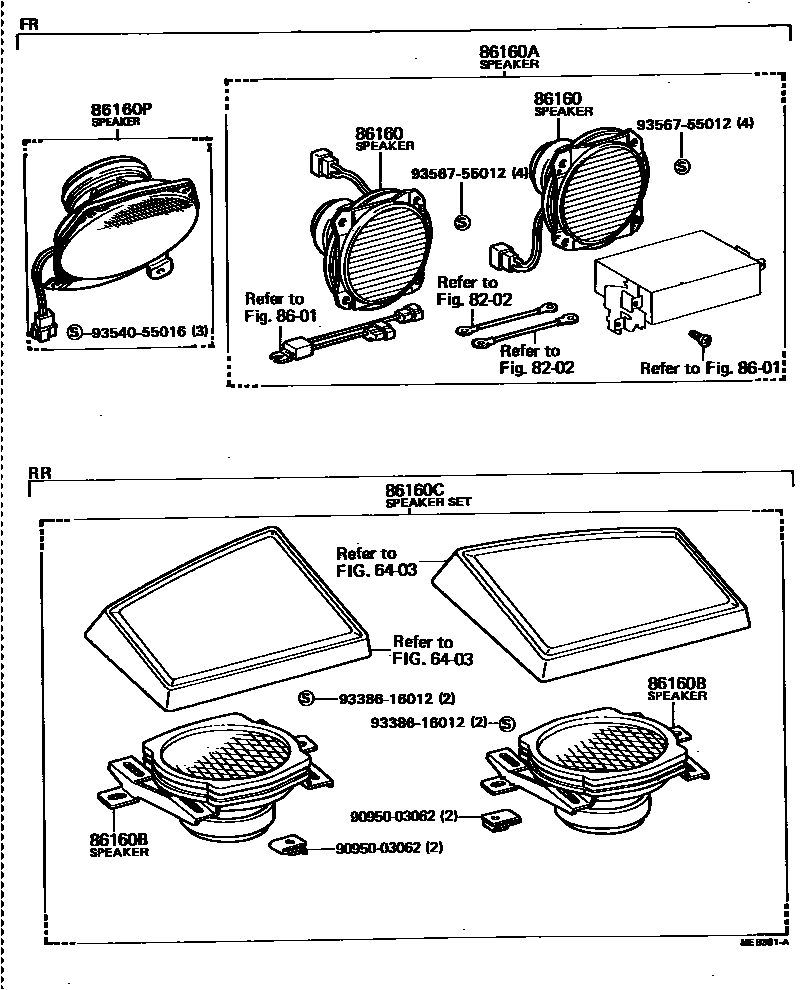

Parts diagram

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

8202WIRING & CLAMP

→ Go to FIG 82-02

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86160SPEAKER ASSY, FRONT NO.1

main86160-14130×2i198201-199801

main86160-14131×2i199801-199804

main86160-20200×2i198201-198508

86160ASPEAKER SET, FRONT

main86160-29355i198201-198612

86160BSPEAKER ASSY, REAR

main86160-20210×2i198201-198508

main86160-91D01×2i198201-198508

86160CSPEAKER SET, REAR

main86160-29385i198201-198508

SPEAKER GRILLE:BLACK

main86160-29395i198201-198310

SPEAKER GRILLE:SADDLE BROWN

main86160-29405i198201-198310

SPEAKER GRILLE:BLUE

main86160-29415i198201-198508

SPEAKER GRILLE:BLACK

main86160-29425i198201-198310

SPEAKER GRILLE:SADDLE BROWN

main86160-29435i198201-198508

SPEAKER GRILLE:BLUE

86160PSPEAKER ASSY, FRONT NO.2

main86160-29365i198210-198712

WOOFER

main86160-29375i198201-198508

WOOFER

9095003062

main90950-03062

9338616012

main93386-16012

9354055016

main93540-55016

9356755012

main93567-55012

12 parts on this diagram · 2 diagrams in section

SPEAKER for Toyota CORONA

This section contains 16 genuine Toyota parts for the SPEAKER system of the Toyota CORONA. Key components include: PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT, WIRING & CLAMP, RADIO RECEIVER & AMPLIFIER & CONDENSER, SPEAKER ASSY, FRONT NO.1, SPEAKER SET, FRONT.
