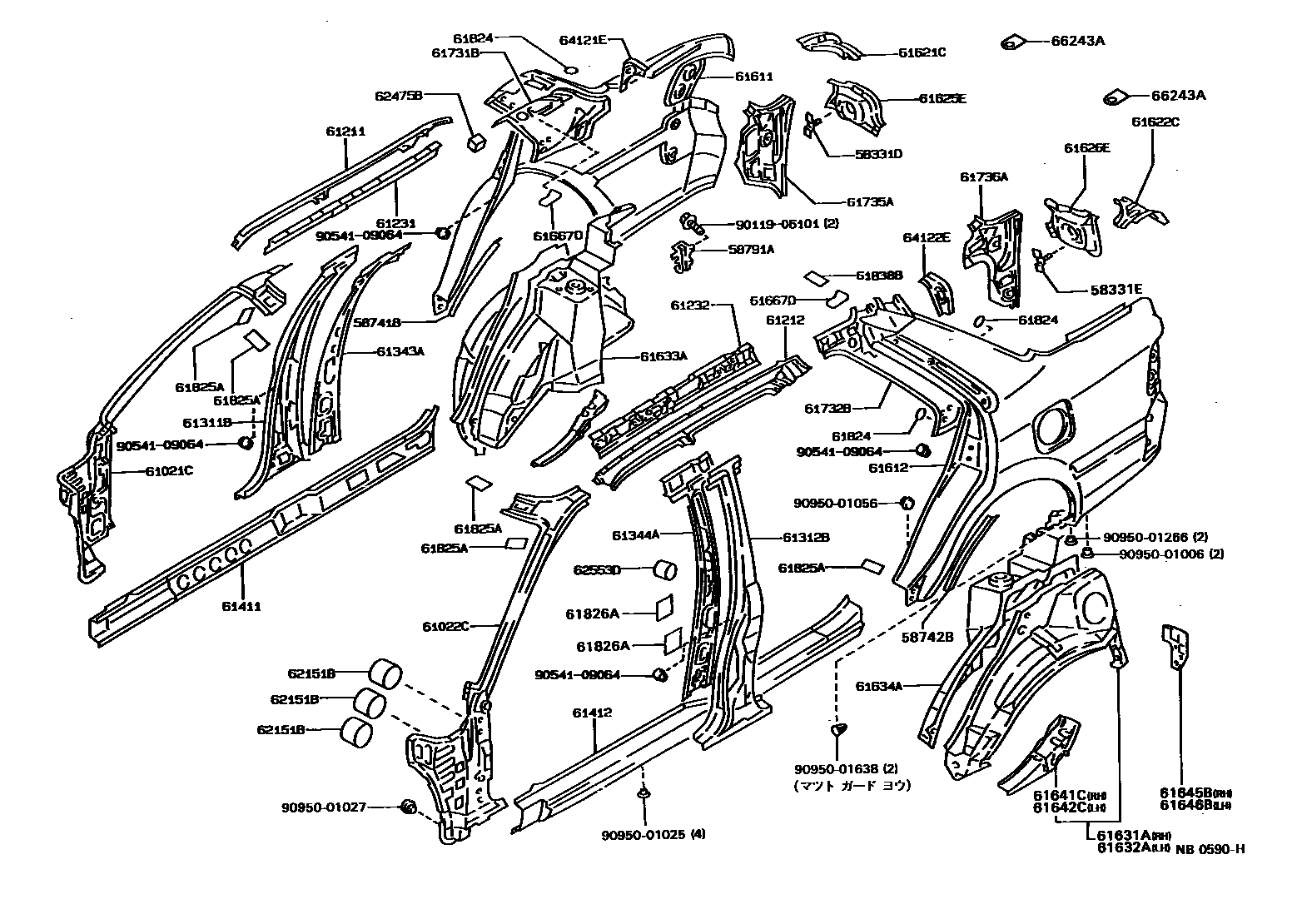

Toyota CORONA — SIDE MEMBER

0001 1 0002 1(9006- )�-��- �-�- 0003 1 0004 1 0005 1

58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-20030iAT17#,CT170,ST17#..EXG,EXS,GTR,SELS,SXR198712-199202

58331EBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-20030iAT175..MX;AT170,CT170,ST17#..EXG,EXS,GTR198712-199202

58741BPROTECTOR, QUARTER PANEL, RH

main58741-20020iAT170,CT17#,ET176,ST17#198712-198802

sub58741-20021

main58741-20021iAT17#,CT17#,ET176,ST17#198802-199211

58742BPROTECTOR, QUARTER PANEL, LH

main58742-20020iAT170,CT17#,ET176,ST17#198712-198802

sub58742-20021

main58742-20021iAT17#,CT17#,ET176,ST17#198802-199211

58791ACARRIER, JACK

main58791-20030iAT17#,CT170,ST17#198712-199202

main58791-95500iCT176,ET176198712-199211

61021CPILLAR SUB-ASSY, FRONT BODY, RH

main61021-20500iAT175..EXS,MX;AT170,CT170,ST17#..EXG,EXS,G,GT,GTR,STD,SXR,X198712-199202

main61021-20500iST170..SELS199106-199202

main61021-20520iAT170,CT17#,ET176,ST170..DX,GX,MX,Z198712-198911

main61021-20520iET176..GX198808-199211

main61021-20520iAT175..GX,SELS;AT170,CT170,ST170..DX,GX,MX,SELS,Z198805-199202

main61021-20610iET176..STD198805-199211

sub61021-20500

sub90333-48001

main61021-20620iET176..STD198805-199211

sub61021-20520

sub90333-48001

main61021-20620iCT176,ET176..DX,GX198805-199211

sub61021-20520

sub90333-48001

61022CPILLAR SUB-ASSY, FRONT BODY, LH

main61022-20430iAT170,CT17#,ET176,ST17#198712-199202

main61022-20430iET176..GX198808-199211

main61022-20520iCT176,ET176198808-199211

sub61022-20430

sub90333-48001

61211RAIL, ROOF SIDE, OUTER RH

main61201-94700iST171..4FC..EXG199005-199007

main61211-20180iAT17#,CT170,ST17#..SED198712-199202

main61211-20190iST17#..LB198712-199202

main61211-95502iCT176,ET176198712-199211

61212RAIL, ROOF SIDE, OUTER LH

main61202-94700iST171..4FC..EXG199005-199007

main61212-20180iAT17#,CT170,ST17#..SED198712-199202

main61212-20190iST17#..LB198712-199202

main61212-95502iCT176,ET176198712-199211

61231RAIL, ROOF SIDE, INNER RH

main61203-94700iST171..4FC..EXG199005-199007

main61231-20260iAT17#,CT170,ST17#198712-199202

main61231-95504iCT176,ET176198712-199211

61232RAIL, ROOF SIDE, INNER LH

main61204-94700iST171..4FC..EXG199005-199007

main61232-20250iAT17#,CT170,ST17#198712-199202

main61232-95504iCT176,ET176198712-199211

61311BPILLAR, CENTER BODY, OUTER RH

main61311-20900iAT17#,CT17#,ET176,ST17#198712-199211

main61311-20905iST171..4FC..EXG199005-199007

61312BPILLAR, CENTER BODY, OUTER LH

main61312-20900iAT17#,CT17#,ET176,ST17#198712-199211

main61312-20905iST171..4FC..EXG199005-199007

61343APILLAR, CENTER BODY, INNER RH

main61343-20902iAT17#,CT170,ST17#198712-199202

main61343-20904iST171..4FC..EXG199005-199007

main61343-20905iST171..4FC..EXG199005-199007

main61343-95902iCT176,ET176198803-199211

61344APILLAR, CENTER BODY, INNER LH

main61344-20902iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,SELS,SXR,X,Z198712-199202

main61344-20902iAT17#,CT170,ST170..GX199106-199202

main61344-20904iST171..4FC..EXG199005-199007

main61344-20905iST171..4FC..EXG199005-199007

main61344-95902iCT176,ET176198803-199211

61411PANEL, ROCKER, OUTER RH

main61401-20240iAT170..DX,STD198712-199202

main61401-20250iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199202

main61401-20290iAT175198808-199202

main61401-94700iST171..4FC..EXG199005-199007

main61401-95509iET176..GX198712-199211

main61401-95509iCT176..5F198911-199211

main61401-95510iCT176,ET176..DX,STD198712-199211

61412PANEL, ROCKER, OUTER LH

main61402-20240iAT170..DX,STD198712-199202

main61402-20250iAT170,CT170,ST17#..EXG,EXS,G,GT,GTR,GX,MX,SELS,SXR,X,Z198712-199202

main61402-20290iAT175198808-199202

main61402-94700iST171..4FC..EXG199005-199007

main61402-95509iET176..GX198712-199211

main61402-95509iCT176..5F198911-199211

main61402-95510iCT176,ET176..DX,STD198712-199211

61611PANEL, QUARTER, RH

main61601-2B900iST17#..LB198712-199202

main61601-2B901iST17#..LB198712-199202

main61601-95902iCT176,ET176198712-198803

sub61601-95906

sub90950-01332

main61601-95906iCT176,ET176198803-198805

sub61601-95907

main61601-95907iCT176,ET176198805-199211

main61611-2B900iAT17#,CT170,ST17#..SED198712-199202

61612PANEL, QUARTER, LH

main61602-2B900iST17#..LB198712-199202

main61602-2B901iST17#..LB198712-199202

main61602-95902iCT176,ET176198712-198803

sub61602-95906

sub90950-01332

main61602-95906iCT176,ET176198803-198805

sub61602-95907

main61602-95907iCT176,ET176198805-199211

main61612-2B900iAT17#,CT170,ST17#..SED198712-199202

61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH

main61621-20100iAT17#,CT170,ST17#..SED198712-199202

61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH

main61622-20100iAT17#,CT170,ST17#..SED198712-199202

61625EEXTENSION, QUARTER PANEL, INNER REAR RH

main61625-20060iST17#..LB198712-199202

main61625-20070iAT17#,CT170,ST17#..SED198712-199202

61626EEXTENSION, QUARTER PANEL, INNER REAR LH

main61626-20060iST17#..LB198712-199202

main61626-20070iAT17#,CT170,ST17#..SED198712-199202

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-20160iAT170,CT170,ST17#198712-198808

sub61605-20900

sub61645-32030

main61605-20900iAT17#,CT170,ST17#198808-199202

main61605-95500iCT176,ET176198712-199211

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61606-20130iAT170,CT170,ST17#198712-198808

sub61606-20900

sub61646-32020

main61606-20900iAT17#,CT170,ST17#198808-199202

sub61606-95500

main61606-95500iCT176,ET176198712-199211

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-20905iAT170,CT170,ST170..SED198712-199202

main61607-20906iST171..SED198712-199202

main61607-20909iST17#..LB198712-199202

main61607-20911iAT175..GX,MX,SELS198808-199202

main61607-20920iAT175..EXS198911-199202

main61607-95505iCT176,ET176198712-199211

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-20230iST17#..LB198712-199202

main61608-20903iAT170,CT170,ST170..DX,GX,SELS198712-199202

main61608-20904iAT170,CT170,ST17#..EXG,EXS,GTR,SXR198712-199202

main61608-20907iAT175..GX,MX,SELS198808-199202

main61608-20915iAT175..EXS198911-199202

main61608-95507iCT176,ET176198712-199211

61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH

main61641-20040iAT17#,CT17#,ET176,ST17#198801-199211

61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH

main61642-20050iAT17#,CT17#,ET176,ST17#198801-199211

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-32030iAT170,CT170,ST17#198808-199202

main61645-32040iAT175198808-199202

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-32020iAT170,CT170,ST17#198808-199202

main61646-32030iAT175198808-199202

61667DSEAL, QUARTER PANEL

main61667-20020iAT17#,CT170,ST17#..SED198712-198911

main61667-20030iAT17#,CT170,ST17#..SED198911-199202

main61668-20020iAT17#,CT170,ST17#..SED198911-199202

61731BPANEL, ROOF SIDE, INNER RH

main61705-20250iAT17#,CT170,ST17#..SED198712-199202

main61705-95501iCT176,ET176198712-198803

main61705-95506iCT176,ET176198803-199211

main61731-20900iST17#..LB198712-199202

61732BPANEL, ROOF SIDE, INNER LH

main61706-20240iAT17#,CT170,ST17#..SED198712-199202

main61706-95501iCT176,ET176198712-198803

main61706-95506iCT176,ET176198803-199211

main61732-20900iST17#..LB198712-199202

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-20090iAT17#,CT170,ST17#..SED198712-199202

main61735-20100iST17#..LB198712-199202

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-20080iAT17#,CT170,ST17#..SED198712-199202

main61736-20090iST17#..LB198712-199202

61824PLATE, NOISE CONTROL, NO.1

main61824-12020iST17#..LB198712-199008

OD=60

sub61824-12040

main61824-12040iST17#..LB199008-199202

OD=60

main61824-20100iAT17#,CT170,ST17#..SED198712-199202

OD=45

61825APLATE, NOISE CONTROL, NO.2

main61825-20070iST17#..LB198712-199202

85 X 105

main61825-20090iAT17#,CT170,ST17#198712-199202

60 X 120

main61825-20090iCT176,ET176198712-198805

main61825-20100iCT176,ET176198805-199211

main61825-30020iAT17#,CT170,ST17#..SED198712-199202

70 X 90

61826APLATE, NOISE CONTROL, NO.3

main61826-20040iAT17#,CT170,ST17#198712-198904

61838BPLATE, NOISE CONTROL, NO.5

main61838-20010iST17#..LB198712-199202

62151BPAD, COWL SIDE SILENCER

main62151-20180iAT17#,CT170,ST17#198712-199202

OD=90,L=80

main62939-23010iAT17#,CT170,ST17#198712-199202

70 X 70

sub61824-12110

62475BSEAL, ROOF SIDE, INNER

main62475-12040iAT17#,CT170,ST17#..SED198712-199202

62553DPAD, PILLAR, NO.3

main62553-20030iST171..4FC..EXG199005-199007

main62553-20030iAT17#,CT170,ST17#198712-199202

64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64121-20050iAT17#,CT170,ST17#..SED198712-199202

64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64122-20050iAT17#,CT170,ST17#..SED198712-199202

66243APROTECTOR, REAR BODY, NO.1

main66243-20010iAT17#,CT170,ST17#198712-199202

main66243-95500iCT176,ET176198712-199211

9011906101

main90119-06101

9054109064

main90541-09064

9095001006

main90950-01006

9095001025

main90950-01025

9095001027

main90950-01027

9095001056

main90950-01056

9095001266

main90950-01266

9095001638

main90950-01638

54 parts on this diagram · 5 diagrams in section
