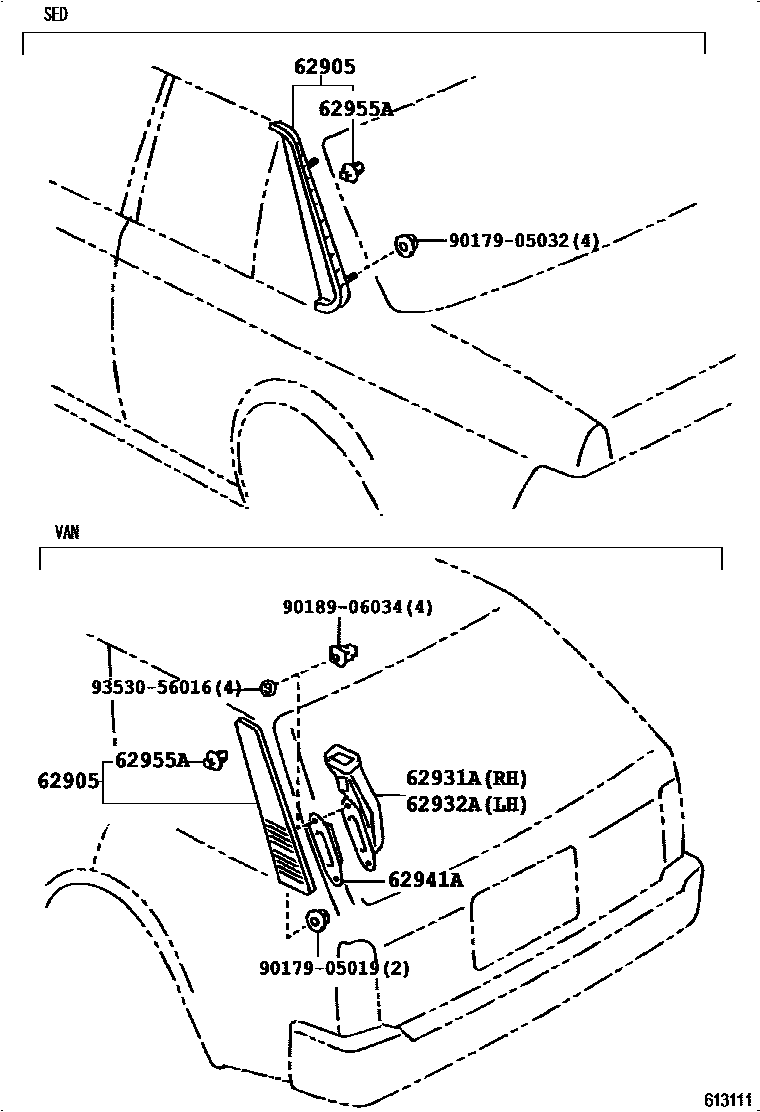

Toyota CORONA — ROOF SIDE VENTILATOR

62905LOUVER, QUARTER VENTILATION

main62905-20100iAT170,CT170,ST17#..SED198712-198804

sub62905-20101

main62905-20101iAT17#,CT170,ST17#..SED198804-199202

main62905-95501iCT176,ET176198712-199211

main62906-20100iAT170,CT170,ST17#..SED198712-198804

sub62906-20101

main62906-20101iAT17#,CT170,ST17#..SED198804-199202

main62906-95501iCT176,ET176198712-199211

62931ADUCT, QUARTER VENT, RH

main62931-10040iCT176,ET176198712-199211

62932ADUCT, QUARTER VENT, LH

main62932-10050iCT176,ET176198712-199211

62941ARETAINER, QUARTER VENT DUCT

main62941-10030iCT176,ET176198712-198807

main62941-95501iCT176,ET176198807-199211

62955ARETAINER, QUARTER VENT LOUVER

main62955-20020iCT176,ET176198712-199211

sub62955-12010

main62955-89101iAT17#,CT170,ST17#..SED198712-199202

9017905032

main90179-05032

9018906034

main90189-06034

9353056016

main93530-56016

8 parts on this diagram · 1 diagram in section
