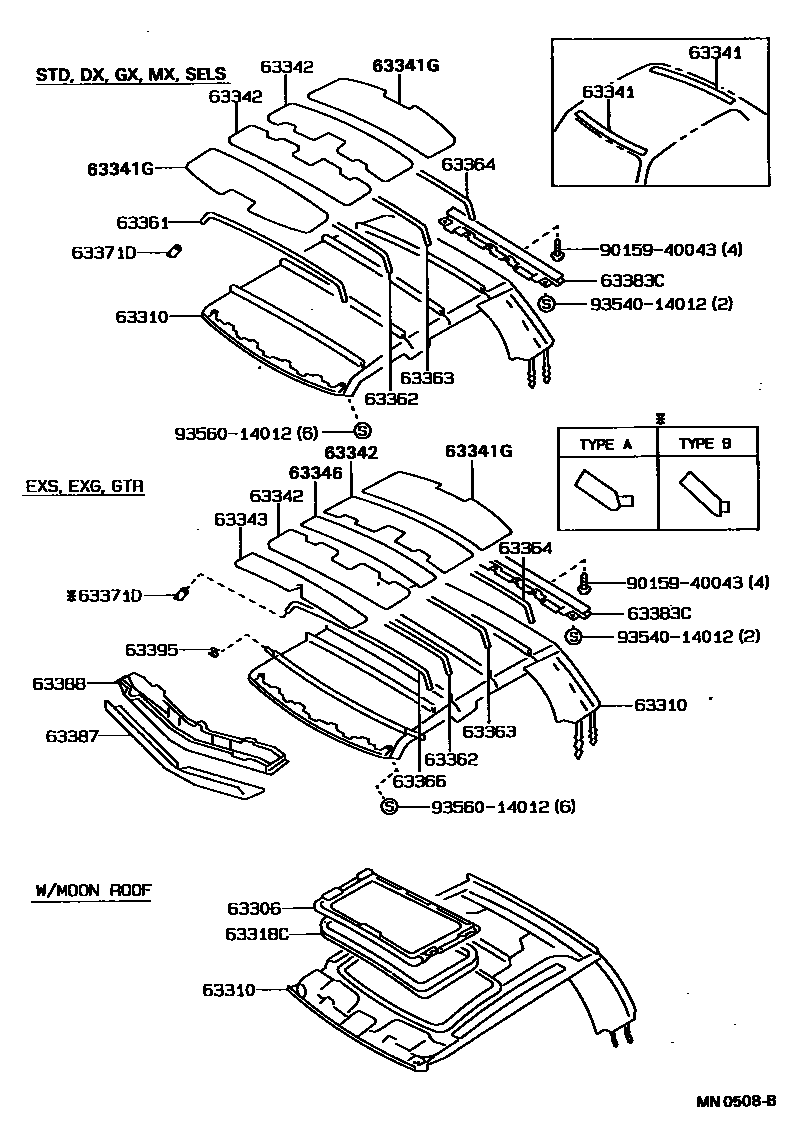

Toyota CORONA — ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

63306TRIM SUB-ASSY, SUNSHADE

main63306-20020-03iCT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,GT,GTR,MX,SXR198712-199202

GRAY,TRIM1#

sub63306-20020

main63306-20020-04iAT175,ST171..EXG,G,MX;CT170,ST170..(EXS,X,Z)..(CI,DSL)198712-199005

BLUE,TRIM8#

sub63306-20020

main63306-20020-06iCT170,ST170..EXS,X,Z;AT175,ST171..EXG,G,MX198712-199202

SABLE,TRIM4#

sub63306-20020

main63306-20020-14iCT170,ST17#..EXG,EXS,G,X,Z198911-199202

DARK BLUE,TRIM8#

sub63306-20020

63310HEADLINING ASSY, ROOF

main63310-20700-03iAT175..GX,SELS;AT170,CT170,ST170..DX,GX,MX,SELS,STD198712-199202

GRAY,TRIM1#

sub63310-20700

main63310-20700-04iAT175..GX;AT170,CT170,ST170..DX,GX,MX198712-198911

BLUE,TRIM8#

sub63310-20700

main63310-20700-06iAT175..GX,SELS;AT170,CT170,ST170..DX,GX,MX,SELS198712-199202

SABLE,TRIM4#

sub63310-20700

main63310-20700-14iAT17#,CT170,ST170..DX,GX,SELS198911-199202

DARK BLUE,TRIM8#

sub63310-20700

main63310-20710-03iAT175..MX;AT170,ST171..EXS,SXR198712-198911

GRAY,TRIM1#

main63310-20710-04iAT175..MX;AT170..EXS198712-198911

BLUE,TRIM8#

main63310-20710-06iAT175..MX;AT170..EXS198712-198911

SABLE,TRIM4#

main63310-20720-03iCT170,ST170..EXS;AT175,ST171..EXG,GTR,MX,SXR198712-198911

main63310-20720-04iCT170,ST170..EXS;AT175,ST171..EXG,MX198712-198911

main63310-20720-06iCT170,ST170..EXS;AT175,ST171..EXG,MX198712-198911

main63310-20730-03iCT170,ST17#..EXG,EXS,GTR198712-198911

GRAY,TRIM1#

main63310-20730-04iCT170,ST17#..EXG,EXS198712-198911

BLUE,TRIM8#

main63310-20730-06iCT170,ST17#..EXG,EXS198712-198911

SABLE,TRIM4#

main63310-20760-03iST170..Z198712-199202

GRAY,TRIM1#

sub63310-20760

main63310-20760-04iST170..Z198712-198911

BLUE,TRIM8#

sub63310-20760

main63310-20760-06iST170..Z198712-199202

SABLE,TRIM4#

sub63310-20760

main63310-20760-14iST170..Z198911-199202

DARK BLUE,TRIM8#

sub63310-20760

main63310-20770-03iAT17#,ST171..EXS,SXR198911-199202

GRAY,TRIM1#

main63310-20770-04iAT17#..EXS198911-199202

DARK BLUE,TRIM8#

main63310-20770-06iAT17#..EXS198911-199202

SABLE,TRIM4#

main63310-20780-03iST17#..LB198712-199202

main63310-20780-04iST17#..G,X,Z198712-198911

main63310-20780-06iST17#..G,X,Z198712-199202

main63310-20780-14iST17#..G,X,Z198911-199202

main63310-20790-03iST17#..G,GT,X198712-199202

GRAY,TRIM1#

main63310-20790-04iST17#..G,X198712-198911

BLUE,TRIM8#

main63310-20790-06iST17#..G,X198712-199202

BROWN,TRIM4#

main63310-20790-14iST17#..G,X198911-199202

DARK BLUE,TRIM8#

main63310-2B190-03iCT170,ST17#..EXG,EXS,GTR198911-199202

GRAY,TRIM1#

sub63310-20770

main63310-2B190-04iCT170,ST17#..EXG,EXS198911-199202

DARK BLUE,TRIM8#

sub63310-20770

main63310-2B190-06iCT170,ST17#..EXG,EXS198911-199202

SABLE,TRIM4#

sub63310-20770

main63310-2B220-03iCT170,ST17#..EXG,EXS,GTR,SXR198911-199202

main63310-2B220-04iCT170,ST17#..EXG,EXS198911-199202

main63310-2B220-06iCT170,ST17#..EXG,EXS198911-199202

main63310-94701iST171..4FC..EXG199005-199007

SUPER ROOMY

main63310-95524-03iCT176,ET176..DX,GX198712-198803

GRAY,TRIM1#

sub63310-95530

main63310-95524-04iCT176,ET176..DX,GX198712-198803

BLUE,TRIM4#

sub63310-95530

main63310-95525-03iET176..STD198712-198803

GRAY,TRIM1#

sub63310-95529

main63310-95529-03iET176..STD198803-199211

GRAY,TRIM1#

main63310-95530-03iCT176,ET176..DX,GX198803-199211

GRAY,TRIM1#

sub63310-95530

main63310-95530-06iCT176,ET176..DX,GX198803-199211

SABLE,TRIM4#

sub63310-95530

63318CMOULDING, SUN ROOF OPENING TRIM

main63318-20070-03iST170..(EXS,X)..CI;AT175,ST171..EXG,G,GT,GTR,MX,SXR;CT170,ST170..(EXS,X,Z)..(DSL,EFI)198712-199202

GRAY,TRIM1#

main63318-20070-04iCT170,ST170..EXS,X;AT175,ST171..EXG,G,MX198712-198911

BLUE,TRIM8#

main63318-20070-06iST170..(EXS,X)..CI;AT175,ST171..EXG,G,MX;CT170,ST170..(EXS,X,Z)..(DSL,EFI)198712-199202

SABLE,TRIM4#

main63318-20070-24iCT170,ST17#..EXG,EXS,G,X,Z198911-199202

DARK BLUE,TRIM8#

63341PAD, ROOF SILENCER, NO.1

main63341-20160iAT170,CT170,ST17#198712-198806

main63341-20160iST17#..LB198806-199202

500 X 60

main63341-95502iCT176,ET176198712-199211

sub63341-22H92

main63342-20090iST17#..LB198806-199202

600 X 60

63341GPAD, ROOF SILENCER

main63341-20170iCT170,ST170..GX,MX,Z;AT17#,ST171..DX,EXS,GX,MX,STD,SXR198712-199202

FRONT

sub63341-22H92

main63341-32020iAT17#,CT170,ST170..DX,GX,SELS,Z198712-199007

REAR

sub63341-22H92

main63341-32040iAT17#,CT170,ST170..DX,GX,SELS,Z199007-199202

REAR

sub63341-22H92

main63341-95503iCT176,ET176198712-199211

sub63341-22H92

63342PAD, ROOF SILENCER, NO.2

main63342-32010iAT17#,CT170,ST17#198712-199007

sub63341-22H92

main63342-32040iAT17#,CT170,ST17#199007-199202

sub63341-22H92

63343PAD, ROOF SILENCER, NO.3

main63343-20080iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

sub63341-22H92

63346PAD, ROOF SILENCER, NO.6

main63346-94700iST171..4FC..EXG199005-199007

SUPER ROOMY

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-20130iAT17#,CT17#,ET176,ST17#198712-199211

L=1031

main63361-20140iAT17#,CT17#,ET176,ST17#198712-199211

L=1028

main63361-20150iAT17#,CT170,ST17#198712-199211

L=1034

main63361-95503iCT176,ET176198712-198809

L=1031

sub63361-20130

main63361-95504iCT176,ET176198712-198809

L=1028

sub63361-20140

main63361-95505iCT176,ET176198712-198809

L=1034

sub63361-20150

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-20130iAT17#,CT170,ST17#198712-199202

L=1023

main63362-20140iAT17#,CT170,ST17#198712-199202

L=1020

main63362-20150iAT17#,CT170,ST17#198712-199202

L=1026

main63362-95505iCT176,ET176198712-199211

L=1024

main63362-95506iCT176,ET176198712-199211

L=1027

63363SUPPORT, ROOF HEADLINING, NO.3

main63363-20050iAT17#,CT170,ST17#198712-199202

L=1017

main63363-20060iAT17#,CT170,ST17#198712-199202

L=1014

main63363-20070iAT17#,CT170,ST17#198712-199202

L=1020

main63363-95502iCT176,ET176198712-199211

L=1018

sub63363-95504

main63363-95503iCT176,ET176198712-199211

sub63363-95504

main63363-95504iCT176,ET176198712-199211

L=1021

63364SUPPORT, ROOF HEADLINING, NO.4

main63364-20040iAT17#,CT170,ST17#198712-199202

L=1011

main63364-20050iAT17#,CT170,ST17#198712-199202

L=1008

main63364-20060iAT17#,CT170,ST17#198712-199202

L=1014

main63364-95501iCT176,ET176198712-198911

L=1007

main63364-95501iCT176,ET176198911-199211

L=1021

main63364-95502iCT176,ET176198712-198911

L=1004

main63364-95502iCT176,ET176198911-199211

L=1007

main63364-95503iCT176,ET176198712-199211

L=1010

sub63364-95502

63366SUPPORT, ROOF HEADLINING, NO.6

main63366-20010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

L=1018

main63366-20020iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

main63366-20030iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

L=1021

63371DRETAINER, ROOF HEADLINING SUPPORT

main63371-20020iAT17#,CT170,ST170..DX,GX,SELS,Z198712-199202

sub63371-30060

main63371-20020iCT176,ET176198712-199211

sub63371-30060

main63371-30050iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

63383CRETAINER, ROOF HEADLINING TRIM, REAR

main63383-20100iAT17#,CT170,ST17#..SED198712-198908

sub63383-20130

main63383-20130iAT17#,CT170,ST17#..SED198712-199202

63387PAD, ROOF HEADLINING FORMING

main63387-20010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

63388FRAME, ROOF HEADLINING FORMING

main63385-20080iCT170,ST17#..EXG,EXS,G,GT,GTR,X198712-199202

63395CLIP, ROOF HEADLINING TRIM

main63395-30010iAT17#,CT170,ST17#..EXG,EXS,G,GT,GTR,SXR,X198712-199202

9015940043

main90159-40043

9354014012

main93540-14012

9356014012

main93560-14012

21 parts on this diagram · 3 diagrams in section
