Toyota CORONA — ROOF HEADLINING & SILENCER PAD

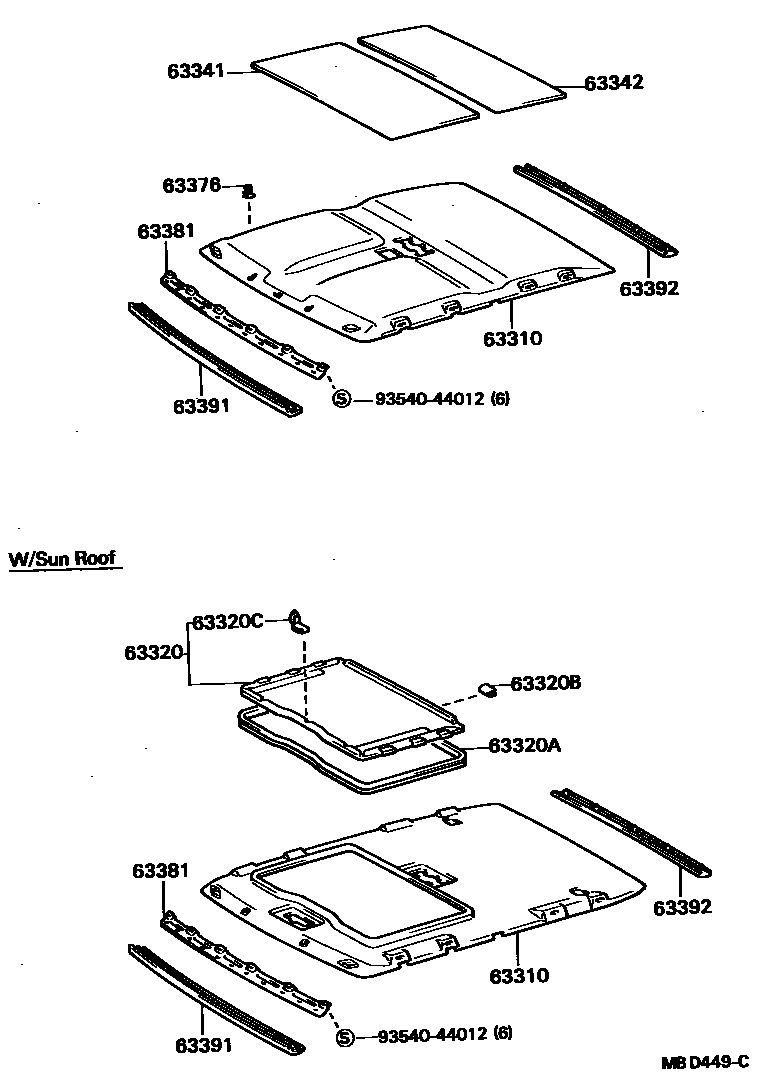

Parts diagram
63310HEADLINING ASSY, ROOF
main63310-20260-03i198201-198310
GRAY,GRAY,TRIM2#,8#
main63310-20260-08i198201-198310
IVORY,IVORY,TRIM4#
main63310-20261-03i198310-198712
VL,GRAY,GRAY,TRIM2#,8#
main63310-20270-03i198201-198310
GRAY,GRAY,TRIM8#
main63310-20270-08i198201-198310
IVORY,IVORY,TRIM4#
main63310-20280i198201-198310
main63310-20281i198310-198612
VL,GRAY
main63310-20290-03i198310-198508
W/SUN ROOF,GRAY,GRAY,TRIM2#,8#
main63310-20290-08i198201-198310
W/SUN ROOF,IVORY,IVORY,TRIM4#
main63310-20300-03i198201-198210
W/NAVI CON,GRAY,GRAY,TRIM8#
main63310-20300-08i198201-198210
W/NAVI CON,IVORY,IVORY,TRIM4#
main63310-20450i198310-198508
FB,GRAY
main63310-20630-03i198612-199804
GRAY,GRAY,TRIM2#
main63310-91C01-03i198201-198204
GRAY,GRAY,TRIM2#
main63310-91C01-08i198201-198204
IVORY,IVORY,TRIM4#
main63310-91C02-03i198204-198303
GRAY,GRAY,TRIM2#
main63310-91C02-08i198204-198303
IVORY,IVORY,TRIM4#
main63310-91C03-03i198303-198712
GRAY,GRAY,TRIM2#
main63310-91C03-08i198303-198712
IVORY,IVORY,TRIM4#
main63311-91D01-03i198201-198310
GRAY,GRAY,TRIM2#,8#
main63311-91D01-08i198201-198310
IVORY,IVORY,TRIM4#
main63311-91D02-03i198310-198508
FB,GRAY,GRAY,TRIM2#,8#
main63311-91D02-08i198201-198310
IVORY,IVORY,TRIM4#
main63311-91D03-03i198310-198508
W/SUN ROOF,GRAY,GRAY,TRIM2#,8#
main63311-91D03-08i198201-198310
W/SUN ROOF,IVORY,IVORY,TRIM4#
main63311-91D04-03i198310-198508
VL,GRAY,GRAY,TRIM2#,8#
63320HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF
main63320-14040-03i198201-198307
GRAY,GRAY,TRIM8#
main63320-14040-08i198201-198307
IVORY,IVORY,TRIM4#
main63320-14041-03i198310-198508
GRAY,GRAY,TRIM2#,8#
main63320-14041-08i198307-198310
IVORY,IVORY,TRIM4#
63320AMOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
main63318-20020-03i198201-198310
GRAY,GRAY,TRIM2#,8#
main63318-20020-08i198201-198310
IVORY,IVORY,TRIM4#
63320BJOINT, SUN ROOF OPENING TRIM
main63319-14011i198310-198508
63320CRETAINER, TRIM BOARD(FOR SUN ROOF)
main63317-20030×4i198201-198310
63341PAD, ROOF SILENCER, NO.1
main63341-14030i198201-198605
main63341-20140i198612-198712
main63341-20150i198612-199804
main63341-91256×2i198201-198712
main63343-91D01i198201-198508
63342PAD, ROOF SILENCER, NO.2
main63341-14030i198201-198605
main63341-20140i198612-199804
main63341-91C01i198308-198712
main63343-91D01i198201-198508
main63344-91701i198201-198308
63376CLIP, HEADLINING
main63376-20010×6i198201-198612
63381RETAINER, HEADLINING, FRONT
main63381-14040i198612-198712
main63381-14050i198201-198508
main63381-14070i198201-198203
63391TRIM, ROOF HEADLINING, FRONT
main63391-14060-03i198201-198612
GRAY,GRAY,TRIM2#,8#
main63391-14060-08i198201-198310
IVORY,IVORY,TRIM4#
main63391-14060-13i198612-199804
GRAY,GRAY,TRIM2#
main63391-14070-01i198310-198508
BLACK,BLACK,TRIM2#
main63391-14070-04i198310-198508
BLUE,BLUE,TRIM8#
main63391-14070-16i198201-198310
SADDLE BROWN,BROWN,TRIM4#
63392TRIM, ROOF HEADLINING, REAR
main63305-20040-03i198612-198712
GRAY,GRAY,TRIM2#,8#
main63305-20040-08i198201-198310
IVORY,IVORY,TRIM4#
main63305-91D01-01i198201-198310
BLACK,BLACK,TRIM2#
main63305-91D01-04i198201-198310
BLUE,BLUE,TRIM8#
main63305-91D01-06i198201-198310
SADDLE BROWN,BROWN,TRIM4#
main63392-91C01-01i198201-198712
BLACK,BLACK,TRIM2#
main63392-91C01-03i198201-198712
GRAY,GRAY,TRIM2#
main63392-91C01-08i198201-198712
IVORY,IVORY,TRIM4#
9354044012
main93540-44012

12 parts on this diagram · 3 diagrams in section

ROOF HEADLINING & SILENCER PAD for Toyota CORONA

This section contains 25 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota CORONA. Key components include: HEADLINING ASSY, ROOF, HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF, MOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM, JOINT, SUN ROOF OPENING TRIM, RETAINER, TRIM BOARD(FOR SUN ROOF).
