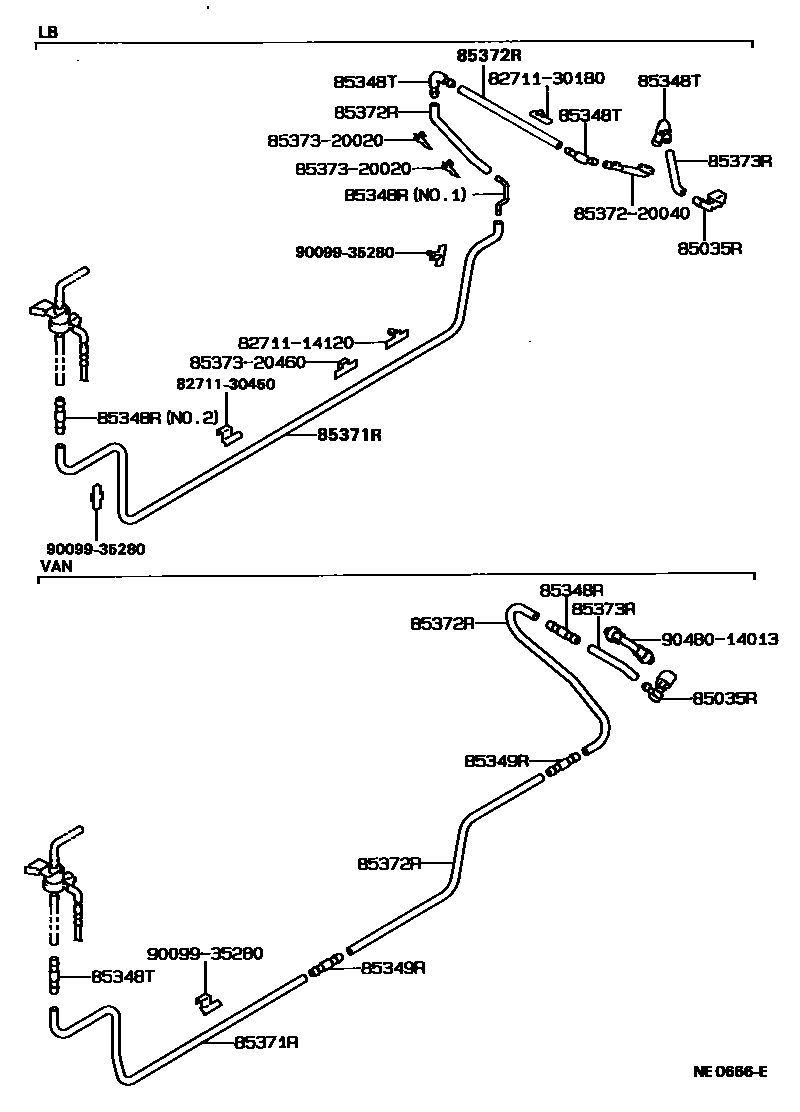

Toyota CORONA — REAR WASHER

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-20250iST17#..LB198712-199202

main85391-21020iCT176..5F198712-199211

sub85035-95J00

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-20460iST17#..LB198712-198808

main85349-20461iST17#..LB198808-199202

main85349-89122iCT176,ET176..(3FC,4F,4FC)..(DX,GX)198712-199211

main85349-89122iST17#..LB198712-199211

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iCT176..5F198712-199211

main85355-20200iST17#..LB198712-199202

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122iCT176,ET176..DX,GX198712-199211

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33490iST17#..LB198712-199202

sub90099-33589

main90446-07001iCT176,ET176..DX,GX198712-199211

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iCT176..5F198804-199211

main90099-33592iCT176,ET176..DX,GX198712-198804

sub90099-33589

main90099-33630iCT176,ET176..DX,GX198804-199211

sub90099-33589

main90446-06013iCT176,ET176..DX,GX198712-199202

main90446-07001iST17#..LB198712-199202

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33080iCT176..5F198802-199211

main90099-33233iST17#..LB198802-199202

main90099-33299iST17#..LB198712-198802

8271114120WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14120

8271130180WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30180

8271130450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30450

8537220040HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85372-20040

8537320020HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-20020

8537320460HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-20460

9009935280

main90099-35280

9048014013

main90480-14013

15 parts on this diagram · 1 diagram in section
