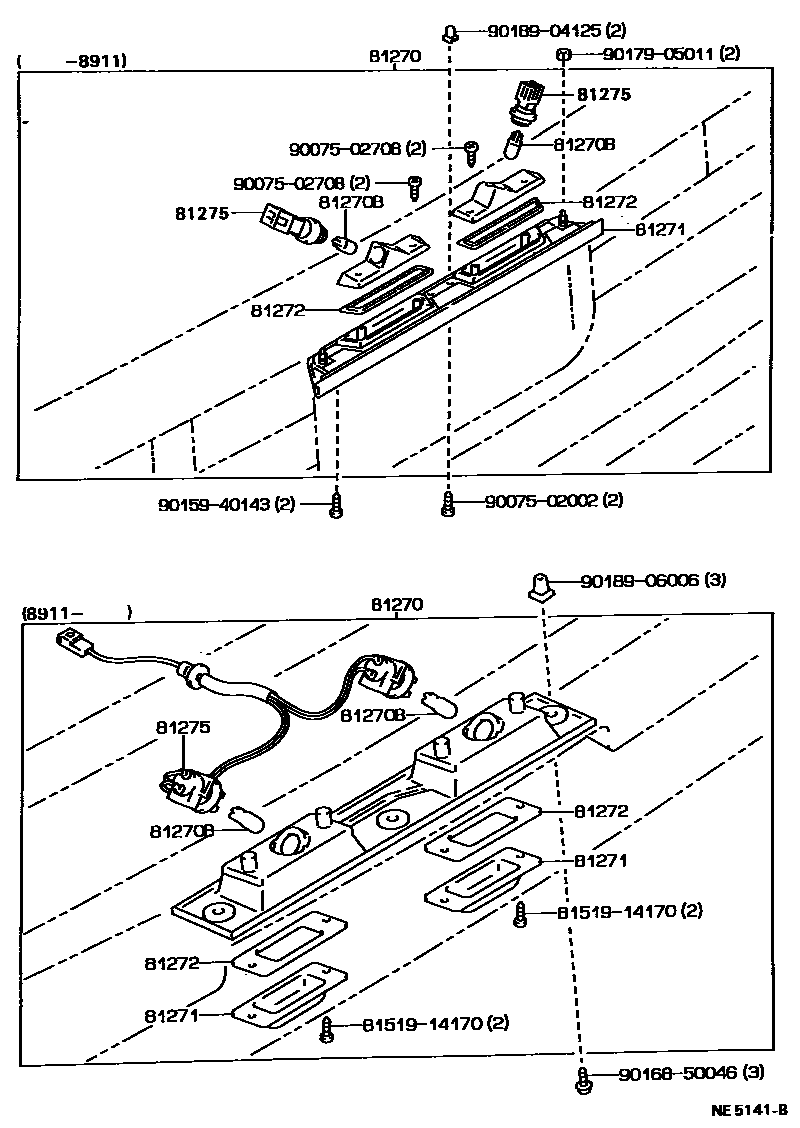

Toyota CORONA — REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-20380iAT17#,CT170,ST17#..SED198712-198911

main81270-20400iST17#..LB198712-198911

main81270-20470iAT17#,CT170,ST17#198911-199202

main81270-95501iCT176,ET176198712-199211

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050iAT17#,CT17#,ET176,ST17#198712-199211

81271LENS, LICENSE PLATE LAMP

main81271-20380iAT17#,CT170,ST17#..SED198712-198911

main81271-20400iST17#..LB198712-198911

main81271-20460iAT17#,CT170,ST17#198911-199202

main81271-91C01iCT176,ET176198712-199211

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20460iAT17#,CT170,ST17#198911-199202

main81276-20380iAT17#,CT170,ST17#..SED198712-198911

main81277-20380iAT17#,CT170,ST17#..SED198712-198911

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-20470iAT17#,CT170,ST17#198911-199202

main90075-99011iAT17#,CT170,ST17#198712-198911

8151914170BRACKET, FRONT TURN SIGNAL LAMP, RH

main81519-14170

9007502002

main90075-02002

9007502708

main90075-02708

9015940143

main90159-40143

9016850046

main90168-50046

9017905011

main90179-05011

9018904125

main90189-04125

9018906006

main90189-06006

13 parts on this diagram · 2 diagrams in section
