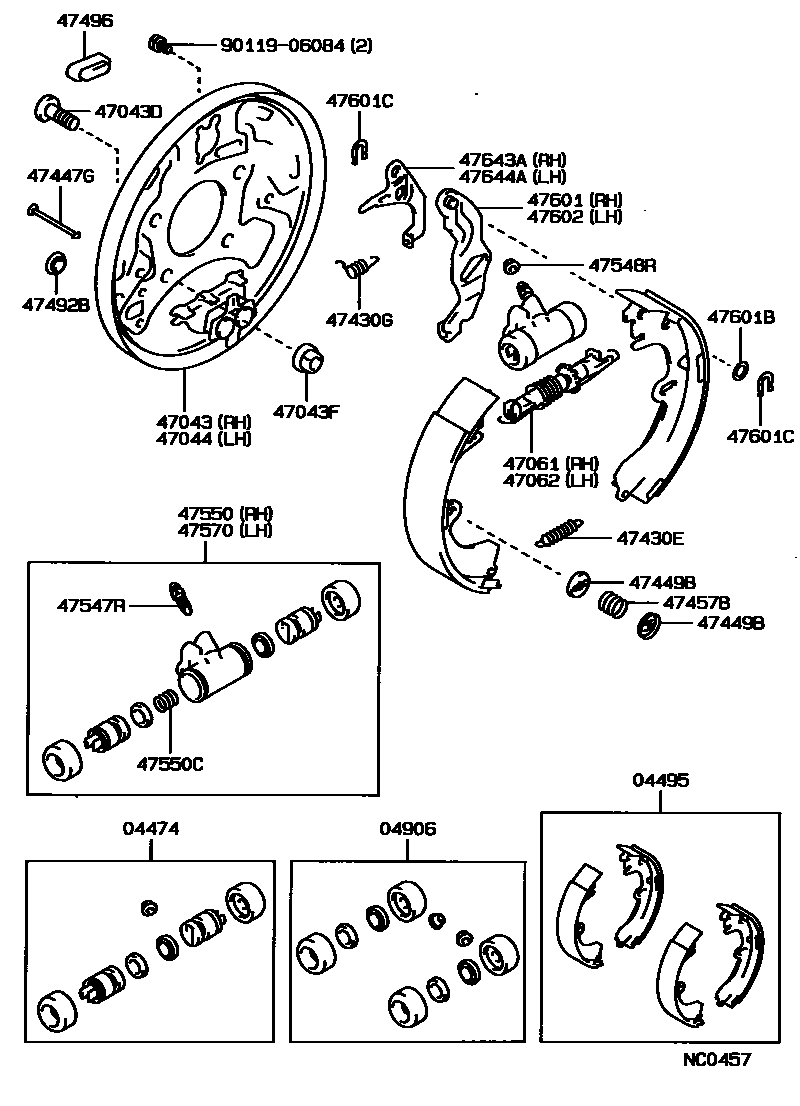

Toyota CORONA — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-10032iCT176,ET176,ST171..DX,EXG,G,GX,STD,SXR198712-199211

sub04474-63020

main04474-16020iAT170,CT170,ST170198712-199202

04495SHOE KIT, REAR BRAKE

main04495-20091iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-198809

sub04495-20092

main04495-20092iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198809-199202

sub04495-20150

main04495-20120iCT176,ET176198712-198809

sub04495-20121

main04495-20121iCT176,ET176198809-199012

sub04495-20150

main04495-20150iCT176,ET176199012-199211

main04497-20070iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-198807

sub04497-20071

main04497-20071iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198807-198809

sub04497-20072

main04497-20072iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-198911

main04497-20072iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,SELS,SXR,X,Z198911-199202

main04497-20080iCT176,ET176198712-198809

sub04497-20081

main04497-20081iCT176,ET176198809-198911

sub04497-20100

main04497-20100iCT176,ET176199012-199211

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iCT176,ET176,ST171..DX,EXG,G,GX,STD,SXR198712-199211

main04906-16020iAT170,CT170,ST170198712-199202

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-12070iCT176,ET176198712-199211

main47043-32010iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199202

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main42184-22020iCT176,ET176198712-199211

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main94181-11000iCT176,ET176198712-199211

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-12070iCT176,ET176198712-199211

main47044-32010iAT170,CT170,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199202

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-20020iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,STD,SXR,X,Z198911-199211

main47061-32010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-198911

sub47061-20020

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-20020iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,STD,SXR,X,Z198911-199211

main47062-32010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-198911

sub47062-20020

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18034iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,STD,SXR,X,Z198712-199211

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-12036iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-199211

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-30010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-199211

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-199211

47457BSPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN)

main90501-18017iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,STD,SXR,X,Z198712-199211

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-199211

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-199211

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,SELS,STD,SXR,X,Z198712-199211

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-16030iAT170,CT170,ST170198712-198911

sub47550-20120

main47550-20120iAT170,CT170,ST170198911-199202

main47550-20130iCT176,ET176,ST171..DX,EXG,G,GX,STD,SXR198911-199211

main47550-32010iCT176,ET176,ST171..DX,EXG,G,GX,STD,SXR198712-198911

sub47550-20130

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-07006iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-199211

sub90029-60014

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-16010iAT170,CT170,ST170198712-198911

sub47570-20030

main47570-20030iAT170,CT170,ST170198911-199202

main47570-20040iCT176,ET176,ST171..DX,EXG,G,GX,STD,SXR198911-199211

main47570-32010iCT176,ET176,ST171..DX,EXG,G,GX,STD,SXR198712-198911

sub47570-20040

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-32010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

47601BSHIM, REAR PARKING BRAKE SHOE LEVER

main90564-08150iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

main90564-08151iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

main90564-08152iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

main90564-08172iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

main90564-08173iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

main90564-08174iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,STD,SXR,X,Z198712-199211

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-32010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-32010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-32010iAT170,CT17#,ET176,ST17#..DX,EXG,EXS,G,GX,MX,SELS,STD,SXR,X,Z198712-199211

9011906084

main90119-06084
