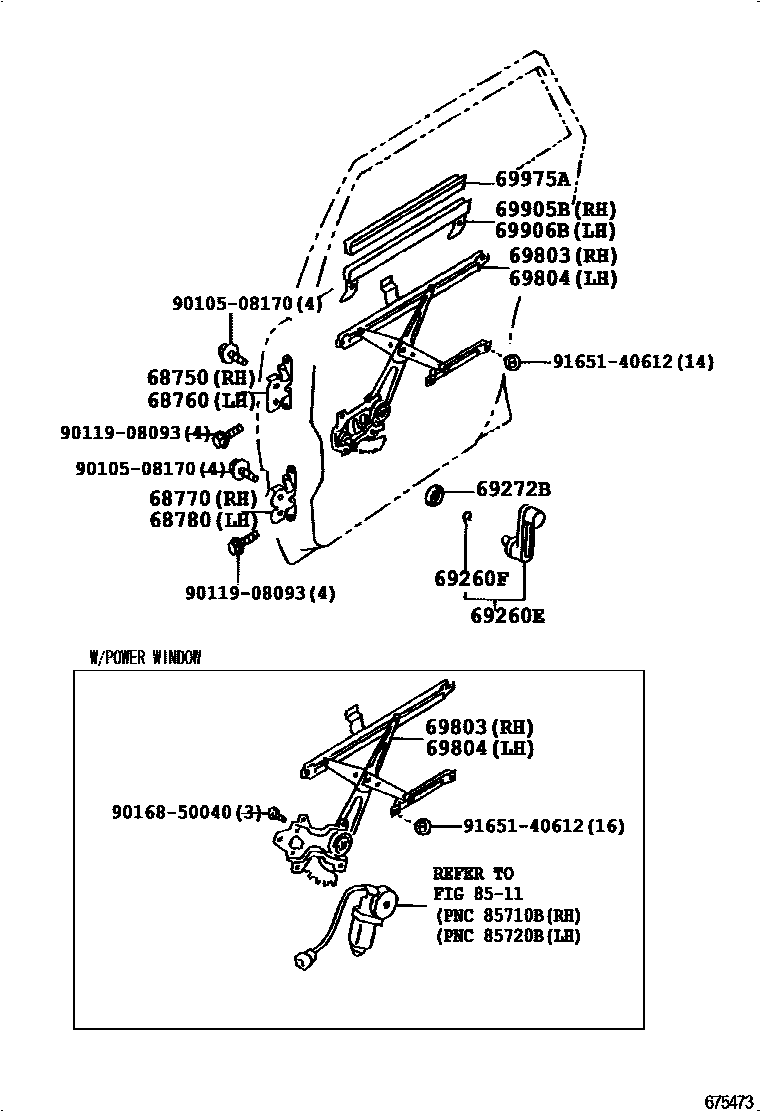

Toyota CORONA — REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20060iAT17#,CT17#,ET176,ST17#198712-199211

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20060iAT17#,CT17#,ET176,ST17#198712-199211

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-20050iAT17#,CT17#,ET176,ST17#198712-199211

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-20060iAT17#,CT17#,ET176,ST17#198712-199211

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-14020-30iAT17#,CT17#,ET176,ST170..DX,GX,STD198911-199211

GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-33iAT175..GX;AT170,CT17#,ET176,ST170..DX,GX,MX,STD,Z198712-198911

GRAY,TRIM1#

sub69260-14020

sub69260-22030

main69260-14020-40iAT17#,CT170,ST170..DX,GX198911-199202

DARK BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-54iAT175..GX;AT170,CT170,ST170..DX,GX,MX,Z198712-198911

DARK BLUE,TRIM8#

sub69260-14020

sub69260-22030

main69260-14020-58iAT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX198712-199211

SABLE,TRIM4#

sub69260-14020

sub69260-22030

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01002iAT175..GX;ST170..Z..CI;AT170,CT17#,ET176,ST170..DX,GX,MX,STD198712-199211

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iCT176,ET176..DX,GX198712-199211

NATURAL WHITE,TRIM1#,4#

sub69285-22010

main69285-22010-08iCT176,ET176..DX,GX198712-199211

NATURAL WHITE,TRIM1#

sub69285-22010

main69285-22010-08iCT176,ET176..DX,GX198712-199211

NATURAL WHITE,TRIM1#,4#,8#

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-20170iAT17#,CT170,ST170..GX198810-198911

main69803-20170iAT170,CT170,ST170..MX,Z198712-198911

main69803-20170iAT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)198712-199202

main69803-20170iAT17#,CT170,ST170..GX199106-199202

main69830-20170iAT175..GX;ST170..Z..CI;AT170,CT170,ST170..DX,GX,MX,STD198712-199202

main69830-95503iCT176,ET176198712-199211

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-20170iAT175..EXS,MX,SELS;ST170..(EXS,X)..CI;AT170,CT170,ST17#..(EXG,EXS,G,GT,GTR,SELS,SXR,X,Z)..(CBR,DSL,EFI)198712-199202

main69804-20170iAT170,CT170,ST170..GX198810-198911

main69804-20170iAT170,CT170,ST170..MX,Z198712-198911

main69804-20170iAT17#,CT170,ST170..GX199106-199202

main69840-20170iAT175..GX;ST170..Z..CI;AT170,CT170,ST170..DX,GX,MX,STD198712-199202

main69840-95503iCT176,ET176198712-199211

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-20110iAT17#,CT170,ST17#198712-199008

W=9.4

main69905-20110iAT17#,CT170,ST17#199008-199202

main69905-95502iCT176,ET176198712-199211

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69905-20110iAT17#,CT170,ST17#198712-199008

W=9.4

main69905-20110iAT17#,CT170,ST17#199008-199202

main69906-95501iCT176,ET176198712-199211

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-20030iAT17#,CT170,ST17#198712-199202

main69975-22020iCT176,ET176198712-199211

8511

9010508170

main90105-08170

9011908093

main90119-08093

9016850040

main90168-50040

9165140612

main91651-40612

17 parts on this diagram · 1 diagram in section
